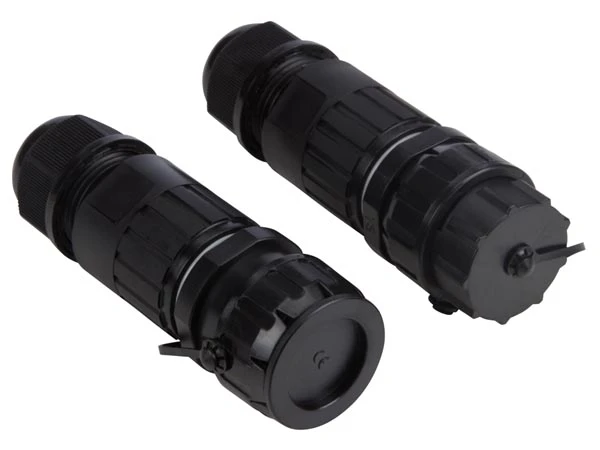

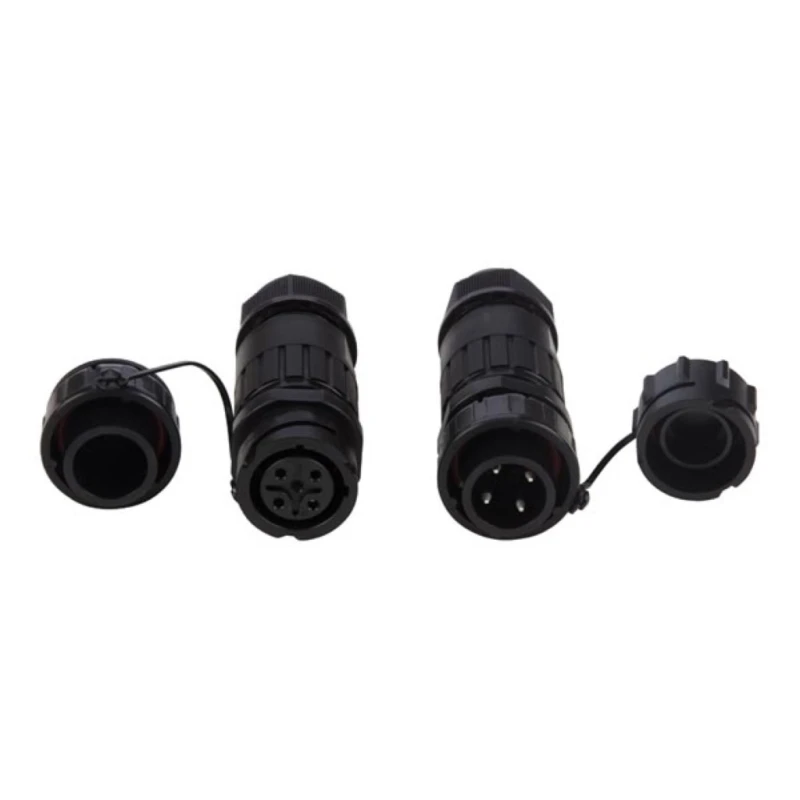

SKU:CUI04
Image is for illustrative purposes only
Applications: outdoor LED lamp, LED displays, servo motors, machining tools, measurement
control, process technology, and medical equipment, etc
Specificationsnumber of contacts: 4inner cable connection: screwwire gauge: 0.5 - 2.5 mm²rated voltage: max. 320 Vrated current: 16 A @ 55 °Cinsulation resistance: > 100 MOhmcontact resistance: < 5 mOhmmechanical operation: > 200 mating cyclesoperating temperature: -40 to 95 °CIP degree protection: IP68 (after mating)for cable diameter: 5 - 7.4 mmflammability: UL94-V2
