SKU:LPV-100-5

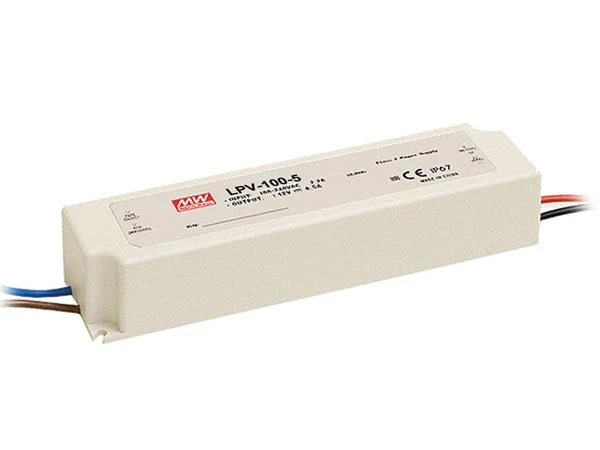

Image is for illustrative purposes only
Features:
- constant voltage design
- universal AC input / full range
- fully encapsulated, IP67
- withstands 300 VAC surge input for 5 seconds
- protection against: short circuit / overload / overvoltage
- fully isolated plastic case
- cooling: free air convection
- 100 % full load burn-in test
- low cost / high reliability
- suitable for LED lighting and moving sign applications
- 2 years warranty
- short circuit protection
- overload protection
- over voltage protection (255V)
- thermal protection (80°)
- waterproof protection IP67
- output:
- DC voltage: 5 V
- rated current: 12 A
- current range: 0-12 A
- rated power: 60 W
- ripple & noise (max.): 80 mVp-p
- voltage tolerance: ± 8.0 %
- line regulation: ± 1.0 %
- load regulation: ± 6.0 %
- setup, rise time: 2000 ms, 25 ms / 230 VAC 2000 ms, 25 ms / 115 VAC
- hold up time (typ.): 50 ms / 230 VAC 14 ms / 115 VAC at full load
- input:
- voltage range: 90-264 VAC 127-370 VDC
- frequency range: 47-63 Hz
- efficiency (typ.): 80 %
- AC current (typ.): 2.2 A / 115 VAC 1.2 A / 230 VAC
- inrush current (max.): cold start 75 A (twidth = 700 µs measured at 50 % lpeak) at 230 VAC
- leakage current: 0.25 mA / 240 VAC
- protection:
- overload:
- 110-150 % rated output power
- protection type: hiccup mode, recovers automatically after fault condition is removed
- overvoltage:
- 5.75 - 6.75 V
- protection type: shut down output voltage, re-power on to recover
- environment:
- operating temperature: -25 to 70 °C
- operating humidity: 20-90 % RH non-condensing
- storage: -40 to +80 °C, 10-95 % RH
- temperature coefficient: ± 0.03 % / °C (0-50 °C)
- vibration: 10-500 Hz, 2G 10min / 1 cycle, period for 60 min each along X, Y, Z axes
- safety & EMC:
- safety standards: UL8750, CSA C22.2 No. 250 13-12, UL879, CSA C22.2 No. 207-M89, IP67 approved; design refer to TUV EN60950-1
- withstand voltage: input to output: 3 kVAC
- isolation resistance: input to output: 100 Mohm / 500 VDC / 25 °C / 70 % RH
- EMC emission: compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A (< or = 80% load), EN61000-3-3
- EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
- other:
- MTBF: min. 703,000 h, MIL-HDBK-217F (25 °C)
- dimensions: 190 x 52 x 37 mm
- packing: 0.63 kg; 20 pcs / 13.6 kg / 0.51 ft³
- weight: 615 g
- housing: aluminium
- connection: leads
- protection class: IP67
- storage temperature: -40°C ~ 80°C
- operating temperature: -25°C ~ 50°C
