SKU:LABPS1502AN

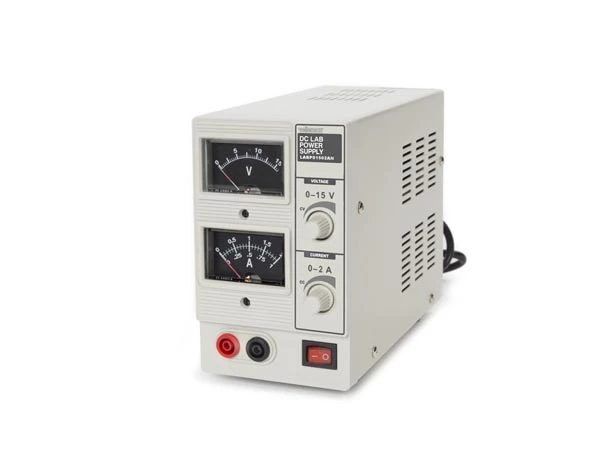

Adjustable DC laboratory power supply 0-15 VDC / 0-2 A analog
Image is for illustrative purposes only
When you wish to test an electrical circuit, you often need to connect it to a power supply. You could use a mains adapter for this, but a lab power supply is much more suitable because it displays current and voltage, so you can see what is happening. With a lab power supply, you can also shield the test circuit so that the circuit under test is better protected. Lab power supplies come in a wide range of configurations. Before buying, it is best to check the functions of the lab power supply first. Is it linear or switched, digital or analogue? Thus, there are many models on which you can optimally regulate current and voltage. .+ Wide application area: A lab power supply is used in production line testing, laboratories, education, for electrical maintenance, battery charging, scientific research... A good choice for DIYers!
+ Safe and reliable: This Velleman lab power supply is manufactured with high-quality components. Moreover, it is equipped with a powerful fan that prevents the lab power supply from overheating.
+ Compact design: The compact but durable construction means you can take this lab power supply anywhere. The power supply also fits any type of worktable without damaging the surface.
+ Plug-in
+ Protection: This lab power supply is equipped with current limiting, a fuse and insulated plugs to ensure the safety of the user and the connected circuit.
- The lab power supply is supplied without connection cables.
- 1 x laboratory device, 1 x operating instructions
Instruction manual languages: Dutch, English, French, German, Italian, Polish, Portuguese, Spanish
Primary colours: Grey
Additional colours: Black
Depth unit: 203 mm
Height unit: 150 mm
Width unit: 93 mm
Weight unit: 2150 g
Material: Metal
Cable length: 1.2 m
Display height: 28 mm
Display width: 50 mm
Display type: Analogue
Fuse type: F 1 A (fast)
Power factor: 0.85
Electrical protection: Current limiting
Output connector type: IEC 1010
Output current rating VDC: 0-2 A
Voltage indication accuracy @ full scale: 2.5 %
Number of current outputs: 1
Number of voltage outputs: 1
Regulation: Line regulation CV <= 1 × 10-4+ 3 mV CC <= 2 × 10-3+ 3 mA Load regulation CV <= 1 × 10-4+ 3 mV CC <= 2 × 10-3+ 3 mA
Ripple and noise: CV <= 1 mV rms
Mains plug type: Type E/F (France/Germany)
Input frequency rating: 50/60 Hz
Input voltage rating VAC range: 220-240 V
Power consumption: 60 W
Output voltage rating VDC range: 0-15 V
Input current rating VAC: 300 mA
powersupplya4v04.pdf
Download
labps1502ana5v02.pdf
Download
