SKU:PCD-40-700B

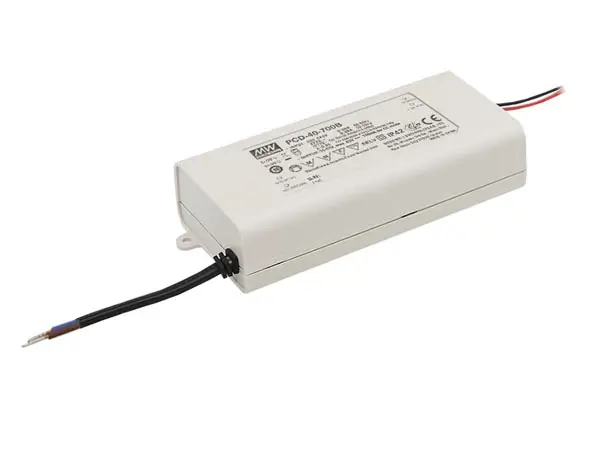

Image is for illustrative purposes only
AC phase-cut dimming work with leading edge and trailing edge TRIAC dimmers built-in active PFC function constant current design protections: short circuit / over temperature cooling by free air convection.
Fully isolated plastic case IP42 design class II power unit, no FG class 2 power unit suitable for LED related fixture or appliance.
100% full load burn-in test high reliability, low cost
100% full load burn-in test high reliability, low cost
Primary colours: White
Additional colours: Black, Red
Depth unit: 128 mm
Height unit: 31.5 mm
Width unit: 60 mm
Weight unit: 215 g
Number of outputs: 1
Housing type: Enclosed
Output power rating: 39.9 W
Output current rating: 700 mA
Series LED driver: PCD
Dimming type: AC phase-cut
IP rating: IP42
Input voltage rating VAC range: 180-295 V
Input current rating: 0.35 A
Output voltage rating VDC range: 34-57 V
Technology type: Constant current mode
Additional colours: Black, Red
Depth unit: 128 mm
Height unit: 31.5 mm
Width unit: 60 mm
Weight unit: 215 g
Number of outputs: 1
Housing type: Enclosed
Output power rating: 39.9 W
Output current rating: 700 mA
Series LED driver: PCD
Dimming type: AC phase-cut
IP rating: IP42
Input voltage rating VAC range: 180-295 V
Input current rating: 0.35 A
Output voltage rating VDC range: 34-57 V
Technology type: Constant current mode
-
