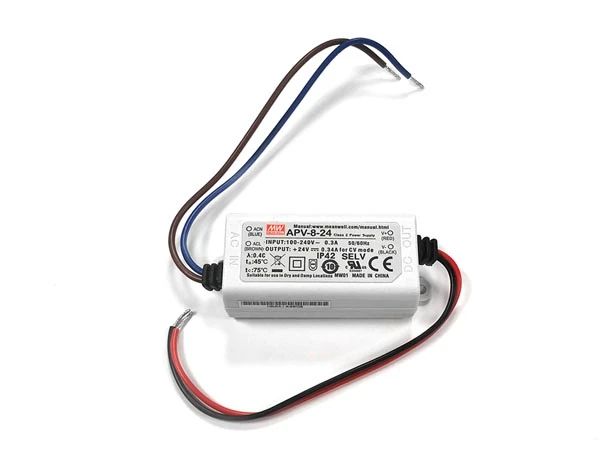

Switching power supply - single output - 8 W - 24 V
SKU:APV-8-24
Image is for illustrative purposes only
constant voltage designuniversal AC input / full rangeclass II power unit, no FGfully isolated plastic caseIP 42 designsmall and compact sizecooling by free convectionprotections: short circuit / overload / over voltageno load power consumption: < 0.5 W100 % full load burn-in testlow cost, high reliability2 years warrantyfor professional use onlyThis device must be installed by a qualified person.
Instruction manual languages: English
Primary colours: White
Depth unit: 60 mm
Height unit: 23.5 mm
Width unit: 30 mm
Weight unit: 90 g
Material: ABS
Number of outputs: 1
Housing type: Enclosed
Output power rating: 8 W
Output current rating: 0.34 A
Electrical protection: Overload, Overvoltage, Short-circuit
Mounting type: Screw mounting
Power supply series: APV
IP rating: IP42
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Technology type: Constant voltage mode
Input current rating at 115 VAC: 0.3 A
Input current rating at 230 VAC: 0.15 A
Input frequency range: 47-63 Hz
Primary colours: White
Depth unit: 60 mm
Height unit: 23.5 mm
Width unit: 30 mm
Weight unit: 90 g
Material: ABS
Number of outputs: 1
Housing type: Enclosed
Output power rating: 8 W
Output current rating: 0.34 A
Electrical protection: Overload, Overvoltage, Short-circuit
Mounting type: Screw mounting
Power supply series: APV
IP rating: IP42
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 90-264 V
Input voltage rating VDC range: 127-370 V
Technology type: Constant voltage mode
Input current rating at 115 VAC: 0.3 A
Input current rating at 230 VAC: 0.15 A
Input frequency range: 47-63 Hz
-
