SKU:ELG-240-24B-3Y
Image is for illustrative purposes only

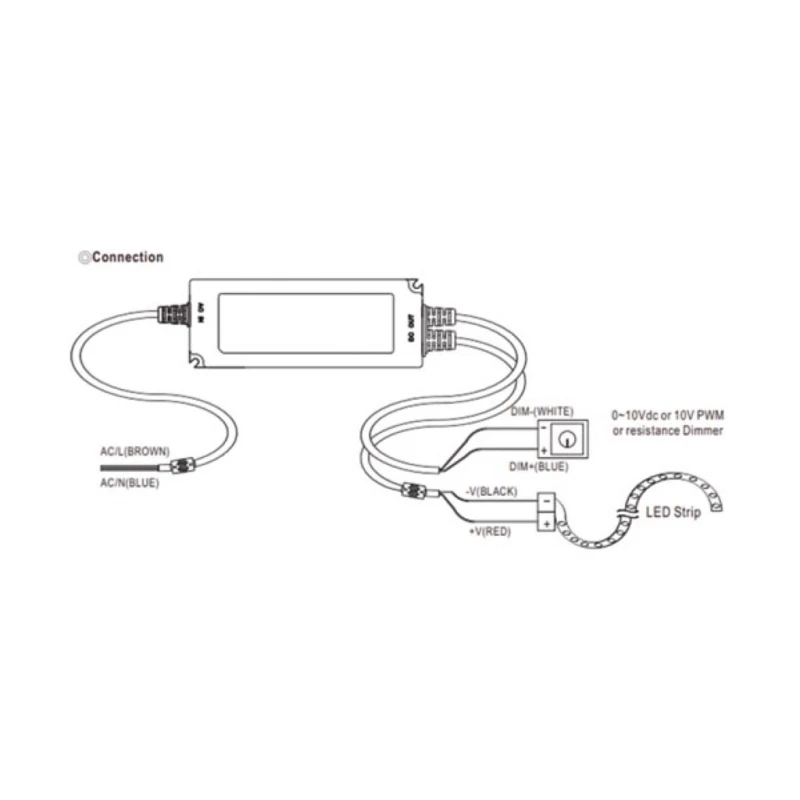

constant voltage + constant current mode outputmetal housing designbuilt-in active PFC functionno load / standby power consumption <0.5WIP67 rating for indoor or outdoor installations3-in-1 dimming function (0~10 VDC, 10 V PWM signal and resistance)typical lifetime > 50.000 hours5 years warrantywith build-in earth wire3 in 1 dimming function (0 ~ 10 Vdc, 10 V PWM signal and resistance)for professional use onlyThis device must be installed by a qualified person.
Instruction manual languages: English
Primary colours: Grey
Primary detailed colours: Metal
Depth unit: 244 mm
Height unit: 37.5 mm
Width unit: 71 mm
Weight unit: 1220 g
Material: Metal
Number of outputs: 1
Housing type: Enclosed
Output power rating: 240 W
Output current rating: 10 A
Electrical protection: Overcurrent, Overtemperature, Overvoltage, Short-circuit
Output current rating range: 5-10 A
Mounting type: Screw mounting
Power supply series: ELG
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 100-305 V
Input voltage rating VDC range: 142-431 V
Technology type: Constant current mode, Constant voltage mode
Input current rating at 115 VAC: 2.2 A
Input current rating at 230 VAC: 1.5 A
Input frequency range: 47-63 Hz
Input current rating at 227 VAC: 1.2 A
Primary colours: Grey
Primary detailed colours: Metal
Depth unit: 244 mm
Height unit: 37.5 mm
Width unit: 71 mm
Weight unit: 1220 g
Material: Metal
Number of outputs: 1
Housing type: Enclosed
Output power rating: 240 W
Output current rating: 10 A
Electrical protection: Overcurrent, Overtemperature, Overvoltage, Short-circuit
Output current rating range: 5-10 A
Mounting type: Screw mounting
Power supply series: ELG
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 100-305 V
Input voltage rating VDC range: 142-431 V
Technology type: Constant current mode, Constant voltage mode
Input current rating at 115 VAC: 2.2 A
Input current rating at 230 VAC: 1.5 A
Input frequency range: 47-63 Hz
Input current rating at 227 VAC: 1.2 A
-
