SKU:ELG-100-36A-3Y

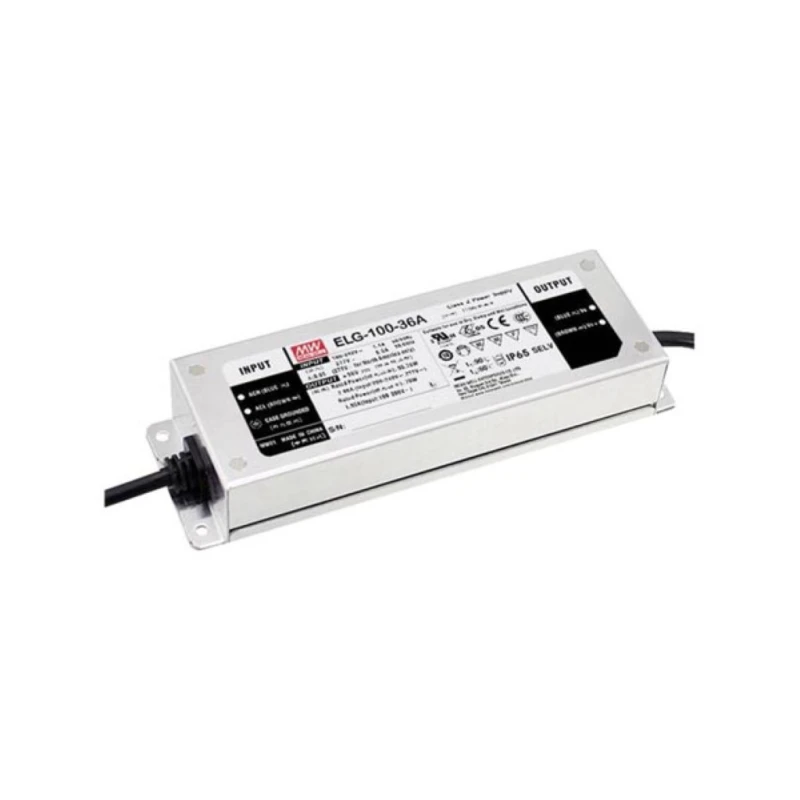

Image is for illustrative purposes only
constant voltage + constant current mode outputmetal housing design built-in active PFC functionclass 2 power unitno load / standby power consumption <0.5WIP65 rating for indoor or outdoor installationsfunction options: output adjustable via potentiometer; 3in1 dimming(dim-to-off); smart timer dimmingtypical lifetime > 50.000 hours5 years warrantyfor professional use onlyThis device must be installed by a qualified person.
Instruction manual languages: English
Primary colours: Grey
Primary detailed colours: Metal
Depth unit: 199 mm
Height unit: 35.5 mm
Width unit: 63 mm
Weight unit: 850 g
Material: Metal
Number of outputs: 1
Housing type: Enclosed
Output power rating: 100 W
Output current rating: 2.66 A
Electrical protection: Overcurrent, Overtemperature, Overvoltage, Short-circuit
Output current rating range: 1.33-2.66 A
Mounting type: Screw mounting
Power supply series: ELG
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 36 V
Input voltage rating VAC range: 100-305 V
Input voltage rating VDC range: 142-431 V
Technology type: Constant current mode, Constant voltage mode
Input current rating at 115 VAC: 1.1 A
Input current rating at 230 VAC: 0.6 A
Input frequency range: 47-63 Hz
Input current rating at 227 VAC: 0.5 A
Primary colours: Grey
Primary detailed colours: Metal
Depth unit: 199 mm
Height unit: 35.5 mm
Width unit: 63 mm
Weight unit: 850 g
Material: Metal
Number of outputs: 1
Housing type: Enclosed
Output power rating: 100 W
Output current rating: 2.66 A
Electrical protection: Overcurrent, Overtemperature, Overvoltage, Short-circuit
Output current rating range: 1.33-2.66 A
Mounting type: Screw mounting
Power supply series: ELG
IP rating: IP67
Usage location: Indoor & outdoor
Output voltage rating VDC: 36 V
Input voltage rating VAC range: 100-305 V
Input voltage rating VDC range: 142-431 V
Technology type: Constant current mode, Constant voltage mode
Input current rating at 115 VAC: 1.1 A
Input current rating at 230 VAC: 0.6 A
Input frequency range: 47-63 Hz
Input current rating at 227 VAC: 0.5 A
-
