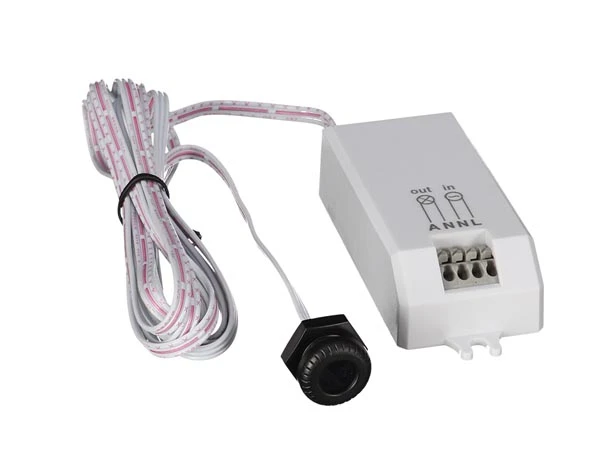

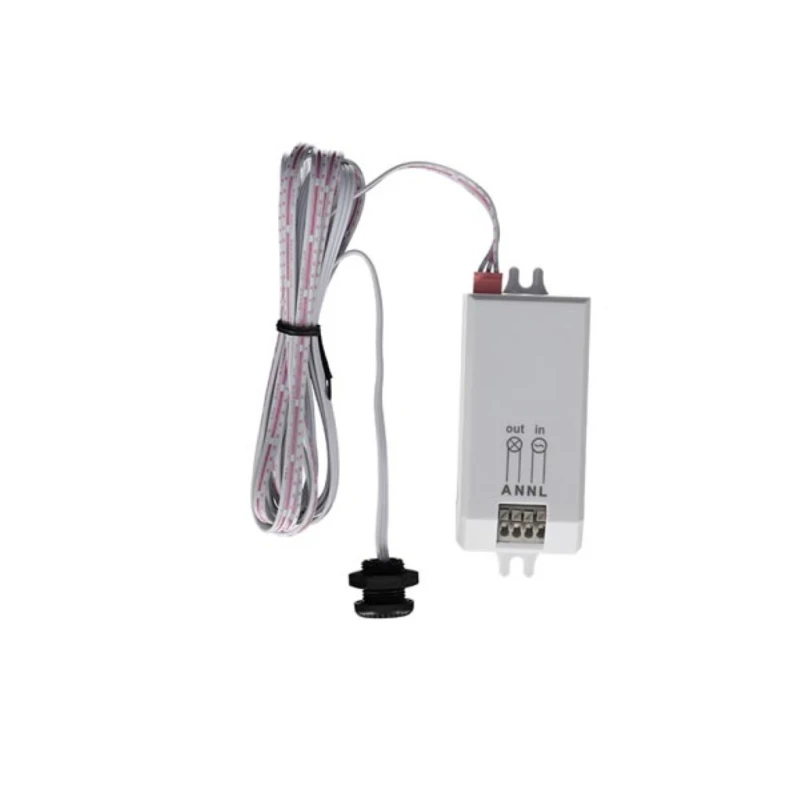

PIR motion sensor, short detection range - recessed; ON/OFF switching
SKU: EMS201
Orderable, delivery time 28. May 2025
Discover the power of this tiny PIR sensor! Move your hand in front of the sensor and the precise motion detection automatically switches the connected device on and off. This way, you save energy and increase convenience. Build this sensor into a wall and use the sensor to switch a light on or off.
+ Accurate motion detection: This small PIR sensor is equipped with advanced technology for accurate motion detection. As a result, the sensor detects even small movements, activating your lights and appliances at the right time.
+ Energy efficiency: The PIR sensor saves energy by turning on lights and appliances only when you want. This prevents unnecessary power consumption and helps you reduce your energy bill.
+ Flexible applications: This PIR sensor is versatile and can be used for various applications, such as intrusion protection, automatic lighting, HVAC control and more. This will integrate your needs and make your home even smarter.
+ Fast response time: The PIR sensor has a fast response time, activating lights and appliances almost instantly when motion is detected. This ensures a seamless and responsive experience in your smart home.
+ Easy mounting: The motion detector is quick and easy to mount. A complete manual with clear instructions is included.
+ Energy efficiency: The PIR sensor saves energy by turning on lights and appliances only when you want. This prevents unnecessary power consumption and helps you reduce your energy bill.
+ Flexible applications: This PIR sensor is versatile and can be used for various applications, such as intrusion protection, automatic lighting, HVAC control and more. This will integrate your needs and make your home even smarter.
+ Fast response time: The PIR sensor has a fast response time, activating lights and appliances almost instantly when motion is detected. This ensures a seamless and responsive experience in your smart home.
+ Easy mounting: The motion detector is quick and easy to mount. A complete manual with clear instructions is included.
Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
Primary colours: White
Additional colours: Black
Depth unit: 74.5 mm
Height unit: 18 mm
Width unit: 36 mm
Weight unit: 57 g
Material: ABS
Diameter lens: 12 mm
Maximum rated current fluorescent: 2 A
Maximum rated current LED: 2 A
Maximum rated current tungsten: 4 A
Maximum rated load fluorescent: 400 W
Maximum rated load LED: 400 W
Maximum rated load tungsten: 800 W
Mounting type: Flush mount
Sensor type: PIR
Detection angle: 160 °
Detection range: 5-6 cm
IP rating: IP20
Operating temperature range: -10-40 °C
Usage location: Indoor only
Maximum operating humidity: 93 %
Sensor functions: On/Off
Switch type: Relay
Input frequency rating: 50/60 Hz
Input voltage rating VAC range: 220-240 V
Primary colours: White
Additional colours: Black
Depth unit: 74.5 mm
Height unit: 18 mm
Width unit: 36 mm
Weight unit: 57 g
Material: ABS
Diameter lens: 12 mm
Maximum rated current fluorescent: 2 A
Maximum rated current LED: 2 A
Maximum rated current tungsten: 4 A
Maximum rated load fluorescent: 400 W
Maximum rated load LED: 400 W
Maximum rated load tungsten: 800 W
Mounting type: Flush mount
Sensor type: PIR
Detection angle: 160 °
Detection range: 5-6 cm
IP rating: IP20
Operating temperature range: -10-40 °C
Usage location: Indoor only
Maximum operating humidity: 93 %
Sensor functions: On/Off
Switch type: Relay
Input frequency rating: 50/60 Hz
Input voltage rating VAC range: 220-240 V
-
