SKU:WPB100

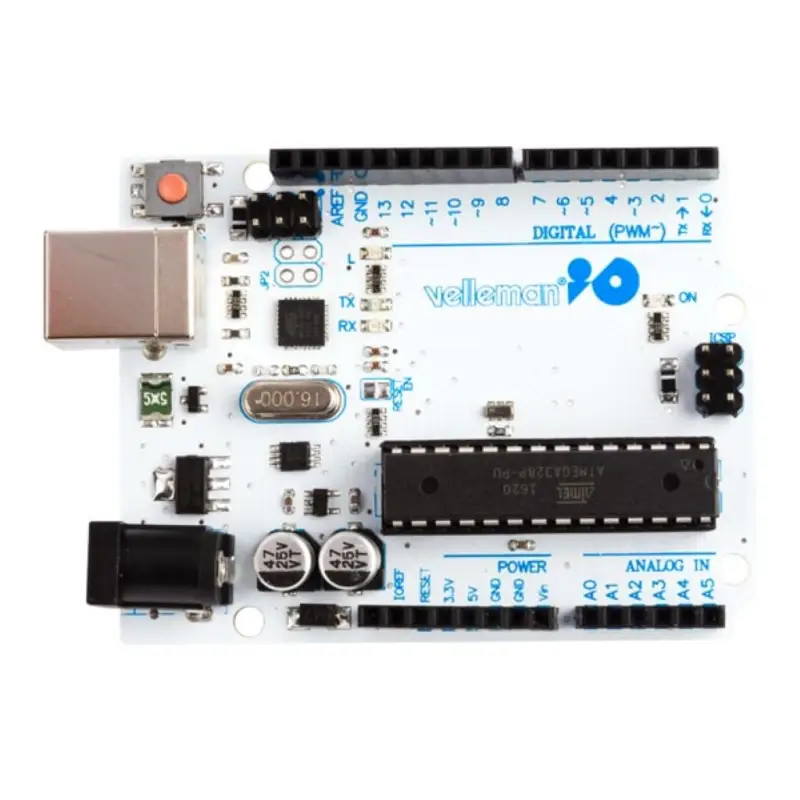

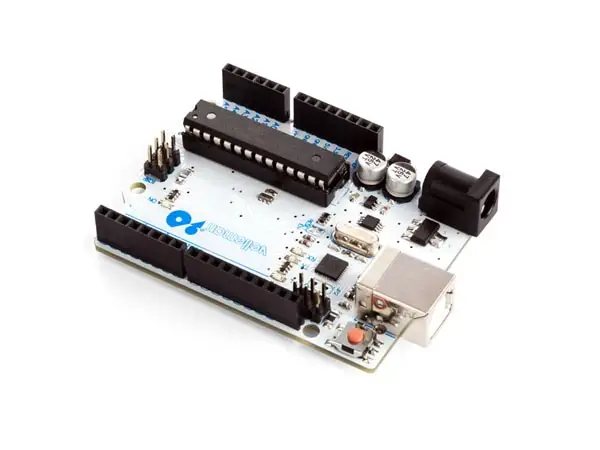

ATmega328 development board
Image is for illustrative purposes only
The ATmega328 UNO development board is a microcontroller board based on the ATmega328 and is 100% compatible with Arduino® UNO. It features 14 digital I/O pins (6 of which support PWM), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power input, an ICSP header, and a reset button.
This board includes everything needed to get started right away: connect it to a computer via USB or power it using an AC-to-DC adapter or battery. Thanks to its easy programmability and broad compatibility, it is ideal for both beginners and advanced users.+ Full compatibility with Arduino UNO: The board is fully compatible with the Arduino IDE, allowing existing code, libraries, and accessories to be used directly.
+ User-friendly and ideal for beginners: No programming or electronics experience is required, making this board perfect for education, prototyping, and hobby projects. Additionally, it is easy to program via a USB connection without the need for extra hardware.
+ Stable performance and reliability: The ATmega328 microcontroller with a clock speed of 16 MHz ensures fast and stable operation. The board features 32 kB of flash memory, with 0.5 kB used by the bootloader. It also has 2 kB of SRAM and 1 kB of EEPROM, providing sufficient storage space for variables and settings.
+ Versatile connectivity options: The board features 14 digital I/O pins, 6 of which can be used as PWM outputs for controlling motors, LEDs, and other components. Additionally, it includes 6 analog inputs, making it ideal for connecting sensors and other applications. Furthermore, it is equipped with an ICSP header, enabling advanced programming and expansion.
+ Flexible power supply: The module operates at 5V and can be powered via USB, an AC-to-DC adapter, or a battery (recommended 7-12V, limit 6-20V).
Instruction manual languages: English
Primary colours: White
Depth unit: 3.5 cm
Height unit: 15.5 cm
Width unit: 7.5 cm
Weight unit: 47 g
Specifications kits & modules: 100% compatible with Arduino® UNO Specifications microcontroller: ATmega328 operating voltage: 5 VDC input voltage (recommended): 7-12 VDC input voltage (limits): 6-20 VDC digital I/O pins: 14 (of which 6 provide PWM output) analogue input pins: 6 DC current per I/O pin: 40 mA DC current for 3.3 V pin: 50 mA flash memory: 32 kB (ATmega328) of which 0.5 kB used by bootloader SRAM: 2 kB (ATmega328) EEPROM: 1 kB (ATmega328) clock speed: 16 MHz
Coding skill level: none
Electronics skill level: none
Mechanics skill level: none
Soldering skill level: none
ce_rohs_open.pdf
Download
vma100_vma101_vma102_vma103_a4v01.pdf
Download
