SKU:61780-GBY
Manufacturer: Lapp Mobility

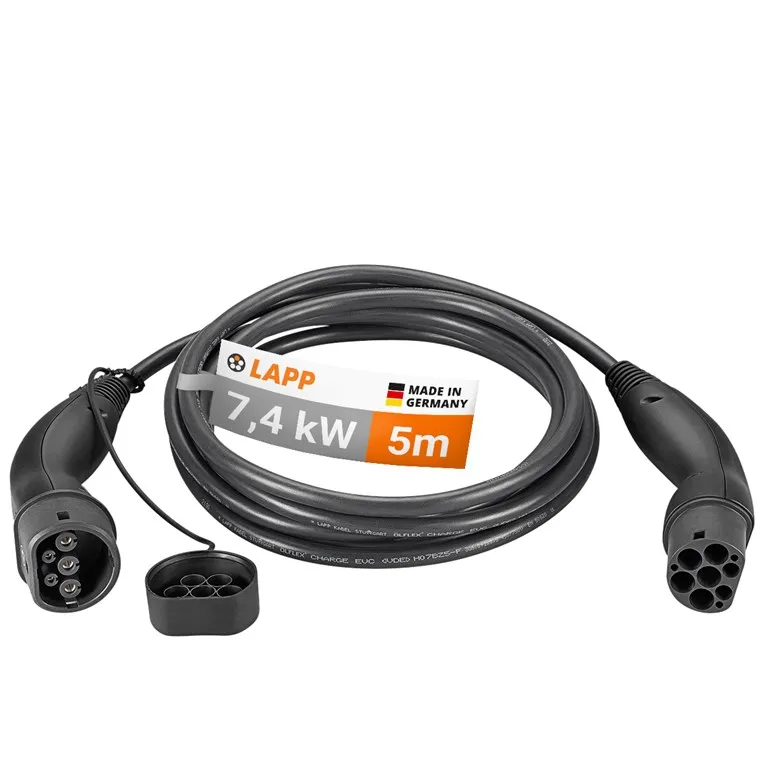

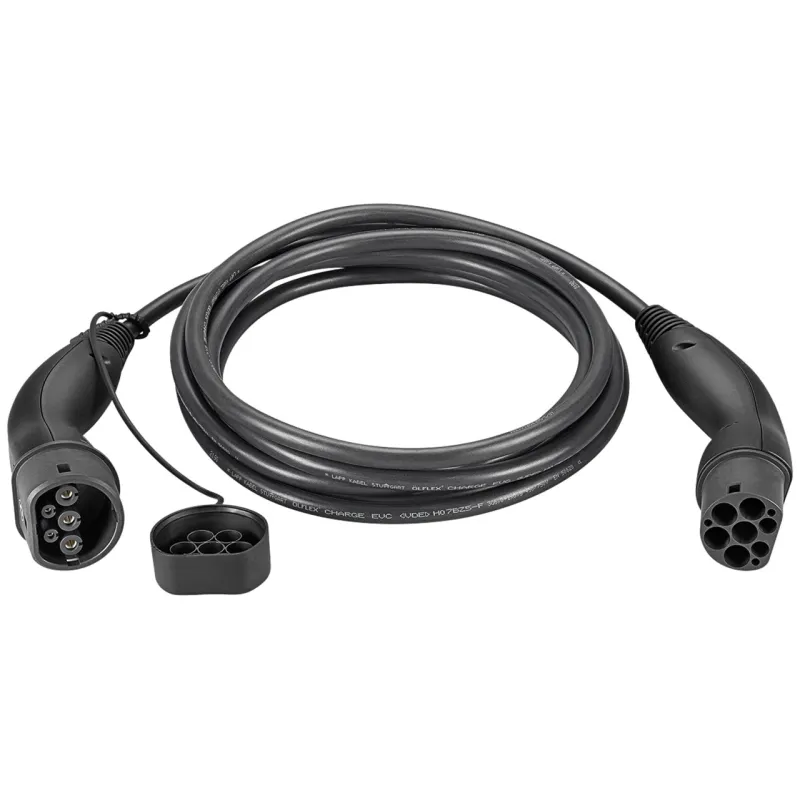

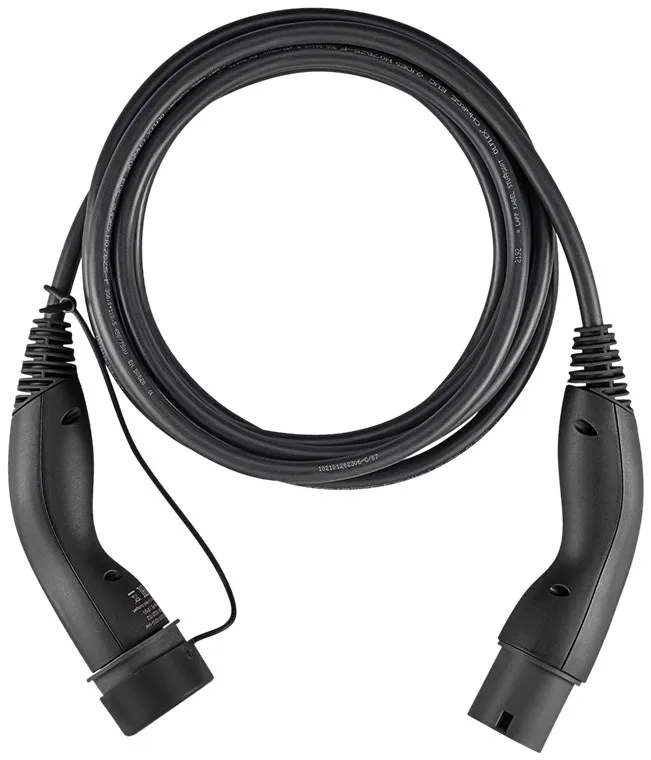

Type 2 Charging Cable, up to 7.4 kW, 5 m, black
Image is for illustrative purposes only
(5555934002) 32 A, 1 phase, for charging hybrid and electric cars with Type 2 connection
The Type 2 charging cable from LAPP allows easy and fast charging with up to 7.4 kW at a public or private charging station or wallbox.
Ideal solution for safe, stable charging at a nominal voltage of 250 V (AC) without an intermediate in-cable control box
Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability
The cover cap on the vehicle-side coupling protects against ingress of dust, dirt and water in between charges.
Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
LAPP Type 2 standard charging cables connect your EV to the charging station, charging pole or wallbox - for easy charging at home or on the road.
Simply connect the coupling of the cable to the car and the plug to the power source.
The charging process is automatically started and finished by the on-board electronics.
LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Connection 2, type: type 2 male plug
Cable type: smooth cable
Material cable sheath: ÖLFLEX®CHARGE
Connection, type: type 2 female plug
Color version: black
Color: black
Special feature: Silver-plated, corrosion-resistant contacts, solid rubberized ergonomic grip design, VDE certified, VDE certified
Packaging type: Retail Box
Loading capacity up to: 7.4 kW
Charging mode: Mode 3
Rated voltage: 250 V (AC)
Number of phases: 1
Cable length: 5 m
Inner conductor cross-section: 6 mm²
protection class: IP55
max current capacity: 32 A
Markings: WEEE, CE
Operating temperature from: -40 °C
Operating temperature up to: 50 °C
Weight: 2080 g
SCIP no.: 92ac866b-d201-4c6e-ac0a-f5f1b01570c7
chemical substance: Pb
CAS no.: 7439-92-1
IEC_cable-assembly_Mode3-2_21_languages.pdf
Download
LAPP_Standard-charging-cable_Mode3-generic_new_DE_EN.pdf
Download
