SKU:50723-GBY
Manufacturer:
Goobay
Image is for illustrative purposes only

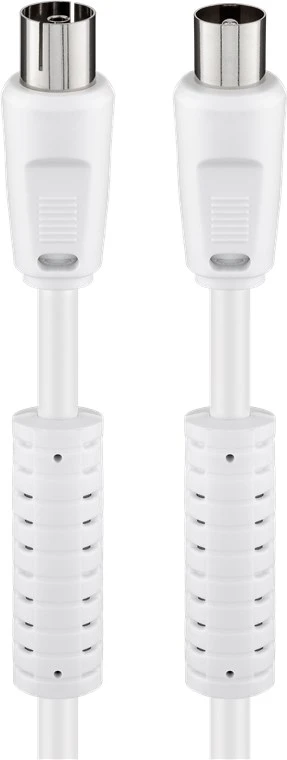

coaxial plug > coaxial socket (fully shielded)

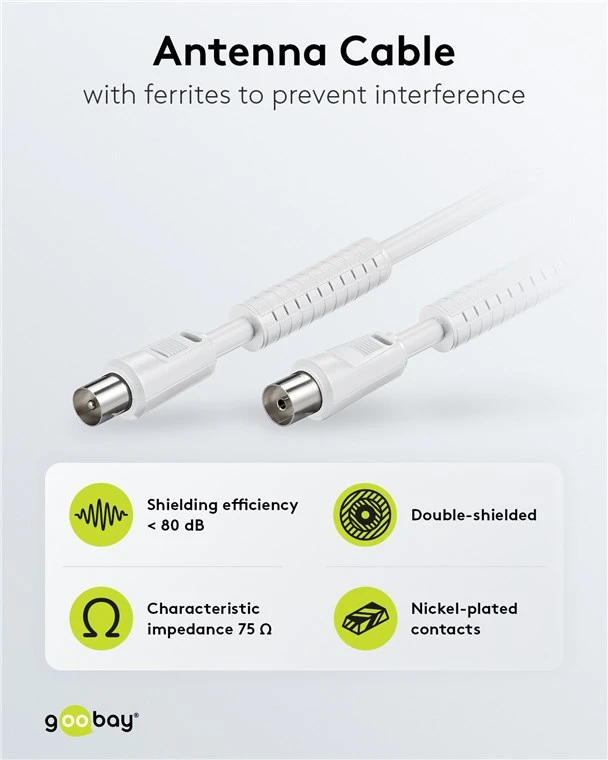

Double-shielded antenna connection cable with ferrite core for interference-free transmission
Suitable for Sat & BK systems

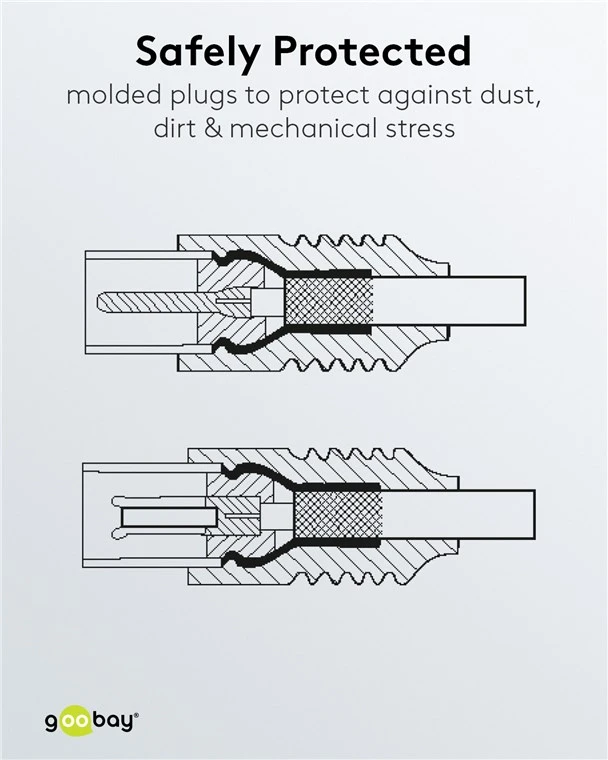

Molded plug on both sides to protect against dust, dirt and mechanical stresses
Coaxial cable with nickel-plated, precision-fit contacts
Coax cable with sheath current filter to avoid interference noise.

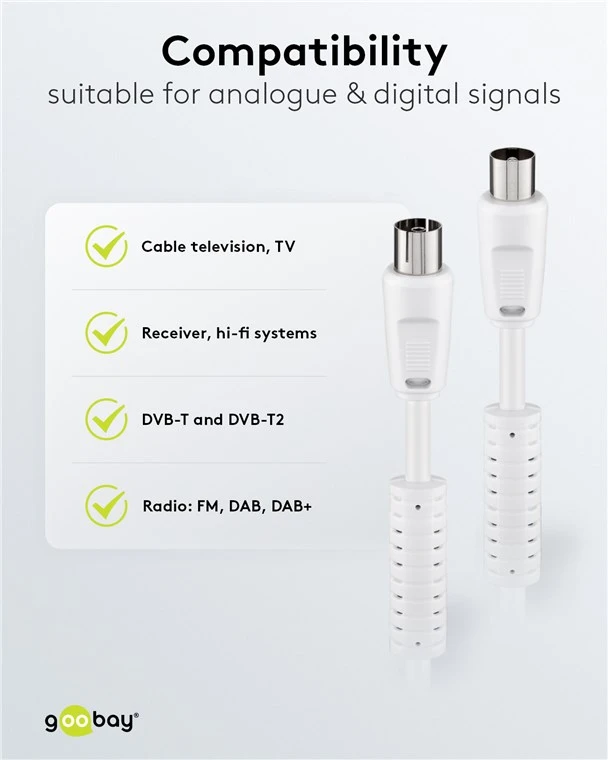

TV aerial cable for connecting devices with a coaxial connection such as televisions, receivers and radios
Double-shielded antenna connection cable with ferrite core for interference-free transmission
Suitable for Sat & BK systems
Molded plug on both sides to protect against dust, dirt and mechanical stresses
Coaxial cable with nickel-plated, precision-fit contacts
Coax cable with sheath current filter to avoid interference noise.
TV aerial cable for connecting devices with a coaxial connection such as televisions, receivers and radios
Connection, type: Coaxial male (plug)
Connection 2, type: Coaxial female (socket)
Connection, shielding: yes
Connection, contact material: nickel-plated
Cable type: coaxial cable
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 112x
Inner conductor material: CCS
Material cable sheath: PVC
Ferrite core: yes
Color: white
Consumption Unit: 1 pc. in polybag
Packaging type: Bulk
Number of shieldings: 2 x
inner conductor, core diameter: 0.5 mm
Cable sheath diameter (approx.): 5.3 mm
Cable length: 1.5 m
Shielding efficiency: 80 dB
Impedance: 75 Ω
Markings: WEEE, CE
SCIP no.: fe1bceda-e5dc-4745-bef9-6901a217326d
chemical substance: Pb
CAS no.: 7439-92-1
Connection 2, type: Coaxial female (socket)
Connection, shielding: yes
Connection, contact material: nickel-plated
Cable type: coaxial cable
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 112x
Inner conductor material: CCS
Material cable sheath: PVC
Ferrite core: yes
Color: white
Consumption Unit: 1 pc. in polybag
Packaging type: Bulk
Number of shieldings: 2 x
inner conductor, core diameter: 0.5 mm
Cable sheath diameter (approx.): 5.3 mm
Cable length: 1.5 m
Shielding efficiency: 80 dB
Impedance: 75 Ω
Markings: WEEE, CE
SCIP no.: fe1bceda-e5dc-4745-bef9-6901a217326d
chemical substance: Pb
CAS no.: 7439-92-1
-
