SKU:96005-GBY
Manufacturer:
Goobay

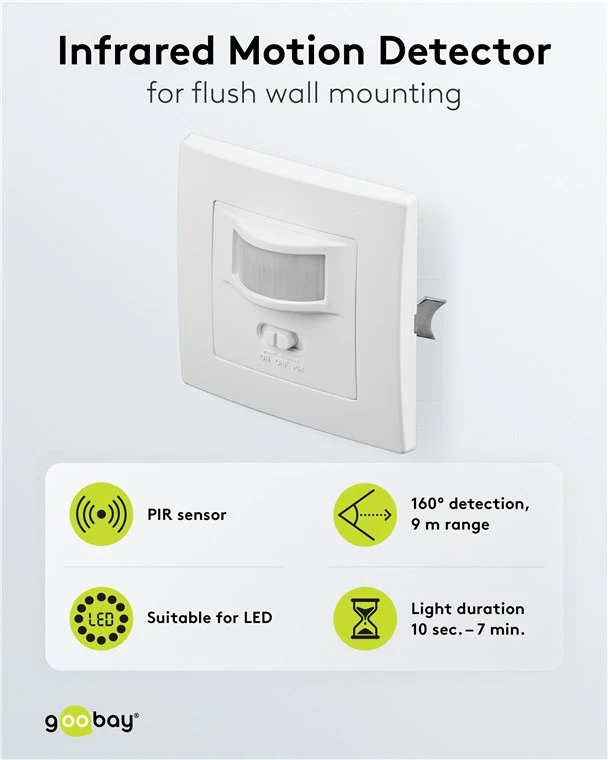

for flush wall mounting 160° detection, 9 m range, for indoor use (IP20), suitable for LEDs
The PIR sensor reacts to the movement and noises of people or animals and activates the connected lighting when it is dark
Replaces the light switch and switches without contact: Particularly practical in rooms that you enter with your hands full, e.g. hallways or utility rooms

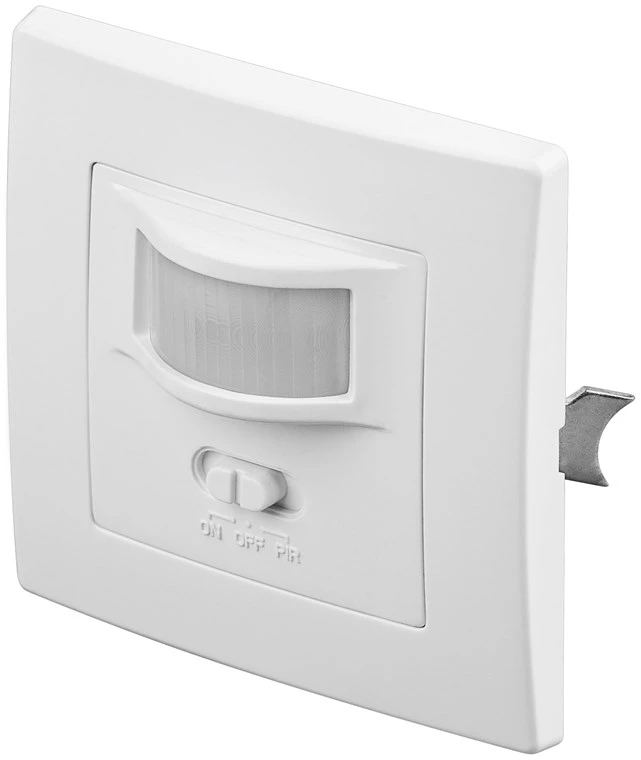

The switch with 3 modes (on, off and PIR) can be used either as a motion detector or as a regular light switch
Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 7 min) are easily adjustable behind the cover using a rotary control
Suitable for connecting LED lighting and energy-saving lamps up to 200 W as well as incandescent lamps up to 500 W

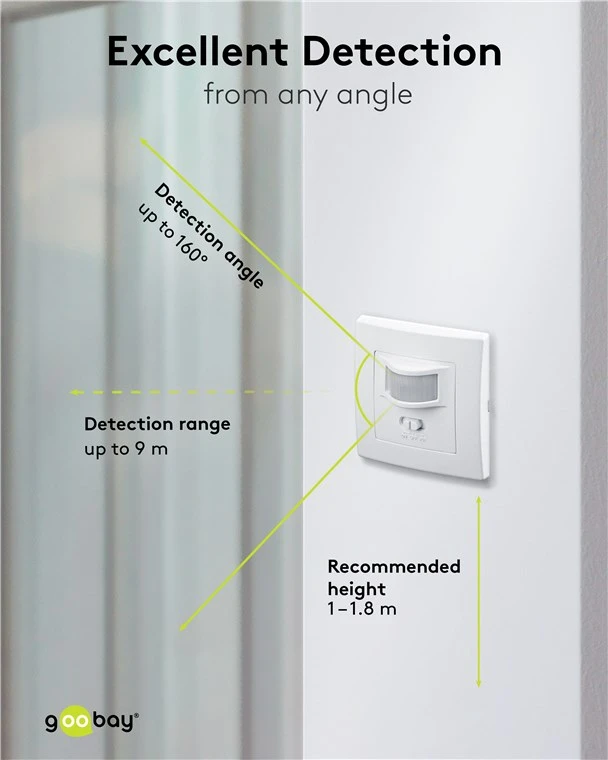

Ideal for horizontal and vertical installation in flush-mounted or cavity wall boxes, installation height: 1.00-1.80 m
With protection class IP20, intended for indoor use only
Never left in the dark again: The motion detector from Goobay prevents tripping hazards at dusk and in the dark, giving you a feeling of safety even at night. Perfect for corridors, bathrooms or hallways – the motion detector always reliably activates the connected lighting.
The PIR sensor reacts to the movement and noises of people or animals and activates the connected lighting when it is dark
Replaces the light switch and switches without contact: Particularly practical in rooms that you enter with your hands full, e.g. hallways or utility rooms
The switch with 3 modes (on, off and PIR) can be used either as a motion detector or as a regular light switch
Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 7 min) are easily adjustable behind the cover using a rotary control
Suitable for connecting LED lighting and energy-saving lamps up to 200 W as well as incandescent lamps up to 500 W
Ideal for horizontal and vertical installation in flush-mounted or cavity wall boxes, installation height: 1.00-1.80 m
With protection class IP20, intended for indoor use only
Never left in the dark again: The motion detector from Goobay prevents tripping hazards at dusk and in the dark, giving you a feeling of safety even at night. Perfect for corridors, bathrooms or hallways – the motion detector always reliably activates the connected lighting.
sensor type: passive infrared (PIR)
Connection, type: Screw clamp
Color version: white
Color: white
Consumption Unit: 1 pc. in cardboard box
packaging: en, de, fr, it
Operation manual: de, en
Packaging type: Retail Box
switching power (LED/energy-saving lamp): 200 W
switching power (Incandescent/halogen lamp): 500 W
light sensitivity adjustable: 3 - 2000 lx
switch-off delay adjustable: 10 - 420 s
operating voltage: 230 V (AC)
max view angle: 160 °
switch-off delay from: 10 s
switch-off delay to: 420 s
Installation height from: 1 m
Installation Height up to: 1.8 m
protection class: IP20
max. detection range: 9 m
recommended installation height: 1 - 1.8 m
Light sensitivity from: 3 lx
light sensitivity up to: 2000 lx
Markings: CE, WEEE, Haus

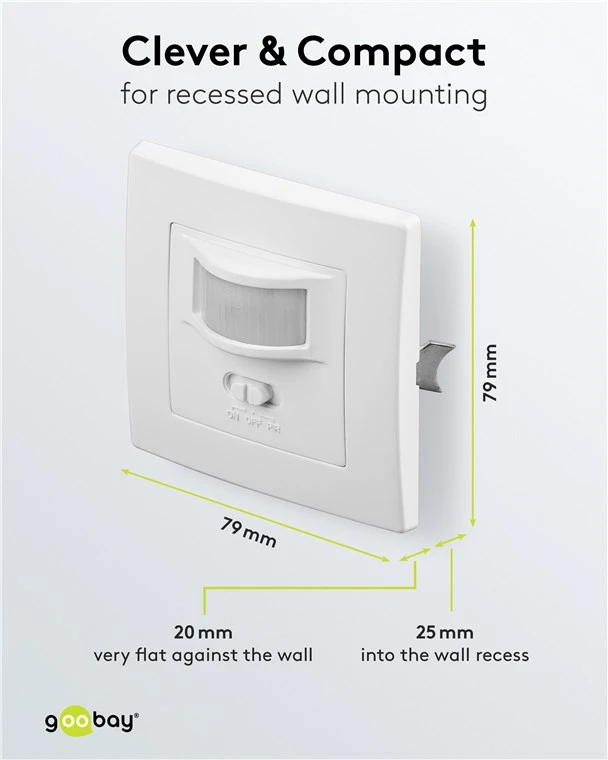

Width: 79 mm
Height: 79 mm
depth: 25 mm
Weight: 70 g
Connection, type: Screw clamp
Color version: white
Color: white
Consumption Unit: 1 pc. in cardboard box
packaging: en, de, fr, it
Operation manual: de, en
Packaging type: Retail Box
switching power (LED/energy-saving lamp): 200 W
switching power (Incandescent/halogen lamp): 500 W
light sensitivity adjustable: 3 - 2000 lx
switch-off delay adjustable: 10 - 420 s
operating voltage: 230 V (AC)
max view angle: 160 °
switch-off delay from: 10 s
switch-off delay to: 420 s
Installation height from: 1 m
Installation Height up to: 1.8 m
protection class: IP20
max. detection range: 9 m
recommended installation height: 1 - 1.8 m
Light sensitivity from: 3 lx
light sensitivity up to: 2000 lx
Markings: CE, WEEE, Haus
Width: 79 mm
Height: 79 mm
depth: 25 mm
Weight: 70 g
