SKU:44924-GBY
Manufacturer: Clicktronic

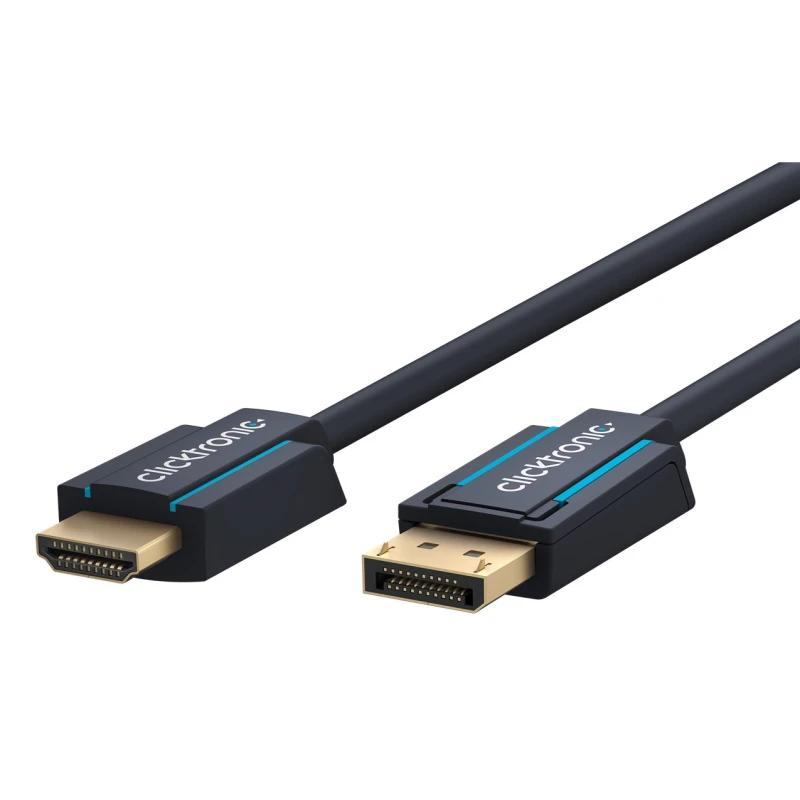

Active DisplayPort to HDMI Adapter Cable
Image is for illustrative purposes only
4K/60Hz
DisplayPort-to-HDMI cable connects external monitors and projectors to a PC, laptop or Mac.
UHD signal transmission with 4K @ 60 Hz (2160p) and WUXGA @ 60 Hz (1200p) for crystal-clear sound and razor-sharp video and image quality
Monitor cable with max. transfer rate of up to 10.2 Gbit/s and HDR for an optimal entertainment experience
Integrated signal amplifier prevents signal loss, making the Clicktronic cable especially suitable for bridging longer distances.
24-carat gold-plated DisplayPort connectors for minimal transmission resistance and smooth image transmission without delays
DisplayPort connector with mechanical connector lock prevents loose contacts.
Signal direction: Due to the integrated signal amplifier, the DisplayPort cable must be connected so that the printed triangles point from the transmitter (e.g. PC) to the receiver (e.g. monitor).

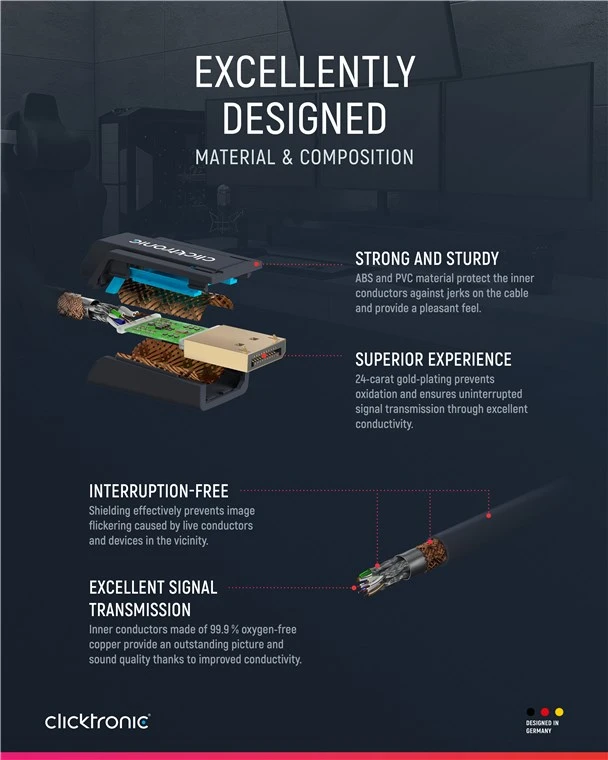

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our DisplayPort cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic DisplayPort cable enables a razor-sharp image and has a very fast transmission speed.
Connection, housing material: ABS, PVC
Connection, contact material: gold (24 kt)
Connection, shielding: yes
Connection, type: DisplayPort™ male
Inner conductor material: CU (copper)
Connection 2, type: HDMI™ connector male (type A)
Material cable sheath: PVC
Kink protection: both sides
Type 1, shielding: braid (aluminium) 128x
Signal amplification: no
Type 2, shielding: foil (aluminium)
Cable type: round cable
Type 3, shielding: foil (aluminium)
Ferrite core: no
LSZH compliant: no
Special feature: pliable
Consumption Unit: 1 pc. in cardboard box
Disclaimer: The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress andthe HDMI Logos are trademarks or registered trademarks of HDMI LicensingAdministrator, Inc.
Operation manual: de, en, fr, it, es, nl, da, se, cz, pl
Packaging type: Retail Box
Cable length: 2 m
Cable sheath diameter (approx.): 7.3 mm
AWG: 26
Number of shieldings: 3 x
max. transmission rate: 10.2 Gbit/s
Max. resolution: 4K/60Hz (3840x2160) UHD
Markings: WEEE, CE
Operating temperature from: -10 °C
Operating temperature up to: 80 °C
Warranty: 10 years
44924_Bedienungsanleitung%23Manual.pdf
Download
44924_Clicktronic_DP_1-2_Aktiv_HDMI_2-0__EN1.pdf
Download
