SKU:64876-GBY
Manufacturer:
Goobay
Image is for illustrative purposes only

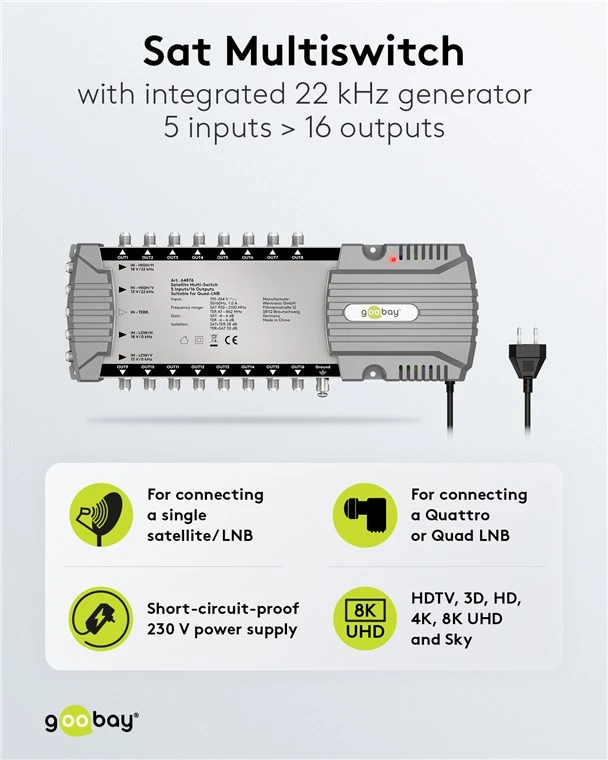

distributor for a max. of 16 subscribers from one satellite
For connecting a single LNB, e.g. to the Astra, Hotbird, Eutelsat or Türksat satellite
With an integrated 22 kHz generator and suitable for both Quattro LNBs and Quad LNBs

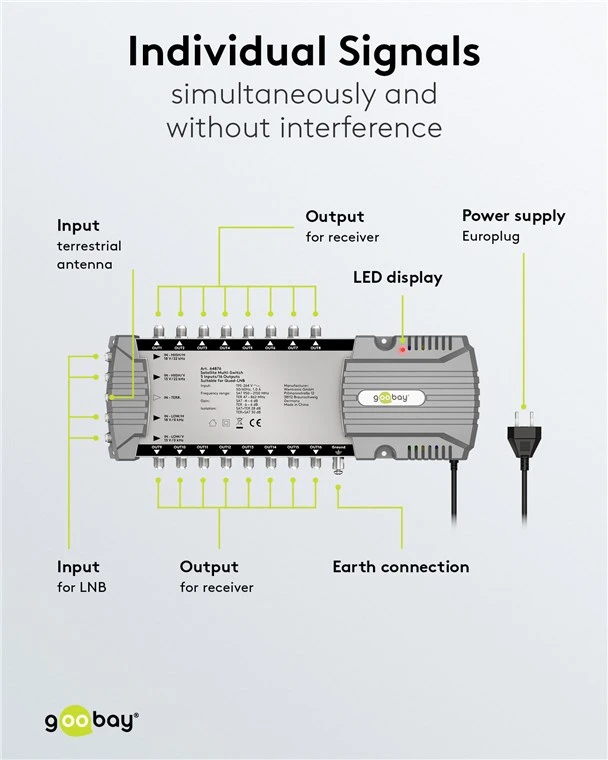

Provides an individual reception signal to all connected subscribers - simultaneously and without interference
Supports HDTV, 3D, HD, 4K, 8K UHD and Sky and has 1x terrestrial input for DAB, DAB+, FM, DVB-T and DVB-T2 antennas
With modern electronics and a short-circuit-proof 230 V power supply unit (Europlug) for low power consumption, even in standby mode
Excellent transmission characteristics due to frequency-dependent amplification, very low signal loss and a high-quality metal housing to protect against interference
The multiswitch is your easy solution for connecting several devices for TV and radio reception in the same house via just one satellite dish.
The switch ensures that each of the 16 subscribers can enjoy their individual programme - for superior flexibility in TV reception.
For connecting a single LNB, e.g. to the Astra, Hotbird, Eutelsat or Türksat satellite
With an integrated 22 kHz generator and suitable for both Quattro LNBs and Quad LNBs
Provides an individual reception signal to all connected subscribers - simultaneously and without interference
Supports HDTV, 3D, HD, 4K, 8K UHD and Sky and has 1x terrestrial input for DAB, DAB+, FM, DVB-T and DVB-T2 antennas
With modern electronics and a short-circuit-proof 230 V power supply unit (Europlug) for low power consumption, even in standby mode
Excellent transmission characteristics due to frequency-dependent amplification, very low signal loss and a high-quality metal housing to protect against interference
The multiswitch is your easy solution for connecting several devices for TV and radio reception in the same house via just one satellite dish.
The switch ensures that each of the 16 subscribers can enjoy their individual programme - for superior flexibility in TV reception.
Input, type: F female
Output, type: F female
Color version: silver-grey
Color: silver, grey
Material: metal, plastic
Consumption Unit: 1 pc. in cardboard box
Operation manual: de, en, fr, it, es, nl, da, se, cz, pl
Packaging type: White Box with Label
max. subscriber: 16
number of inputs: 5
Number of outputs: 16
switching commands: 13/0; 18/0; 13/22; 18/22
Input Voltage: 230 V (AC)
Transmission modes: DVB-S, DVB-S2, DVB-T, DVB-T2
Frequency range: 950 - 2.150 MHz
Frequency range terrestrial: 47 - 862 MHz
Polarization decoupling SAT: 28 - 30 dB
Output level SAT: 100 dBµV
Return loss SAT inputs: 10 dB
Return loss SAT outputs: 8 dB
Output level terr.:: 88 dBµV
Reverse flow damping terrestrial Inputs: 8 dB
Return loss terrestrial outputs: 8 dB
Impedance: 75 Ω
Markings: CE, WEEE
Operating temperature up to: 50 °C

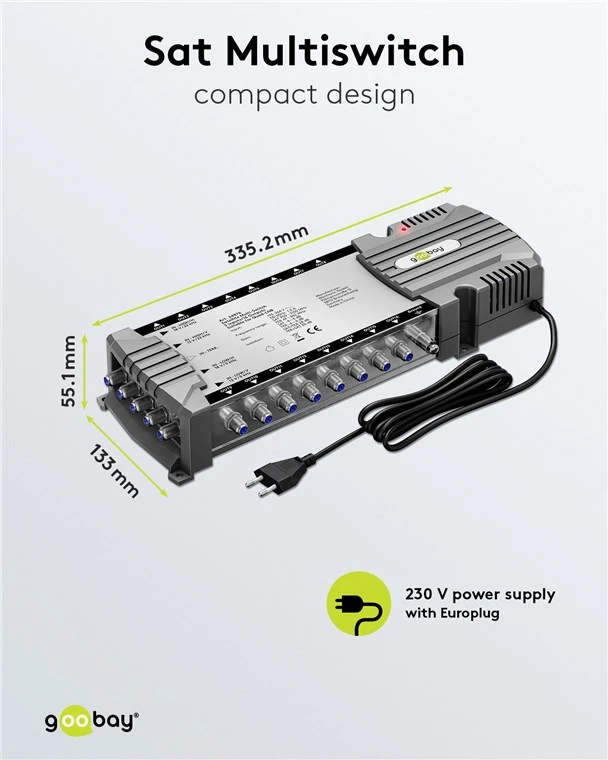

Width: 335.2 mm
Height: 55.1 mm
depth: 133 mm
Weight: 840 g
Output, type: F female
Color version: silver-grey
Color: silver, grey
Material: metal, plastic
Consumption Unit: 1 pc. in cardboard box
Operation manual: de, en, fr, it, es, nl, da, se, cz, pl
Packaging type: White Box with Label
max. subscriber: 16
number of inputs: 5
Number of outputs: 16
switching commands: 13/0; 18/0; 13/22; 18/22
Input Voltage: 230 V (AC)
Transmission modes: DVB-S, DVB-S2, DVB-T, DVB-T2
Frequency range: 950 - 2.150 MHz
Frequency range terrestrial: 47 - 862 MHz
Polarization decoupling SAT: 28 - 30 dB
Output level SAT: 100 dBµV
Return loss SAT inputs: 10 dB
Return loss SAT outputs: 8 dB
Output level terr.:: 88 dBµV
Reverse flow damping terrestrial Inputs: 8 dB
Return loss terrestrial outputs: 8 dB
Impedance: 75 Ω
Markings: CE, WEEE
Operating temperature up to: 50 °C
Width: 335.2 mm
Height: 55.1 mm
depth: 133 mm
Weight: 840 g
-
