SKU:HDR-60-15

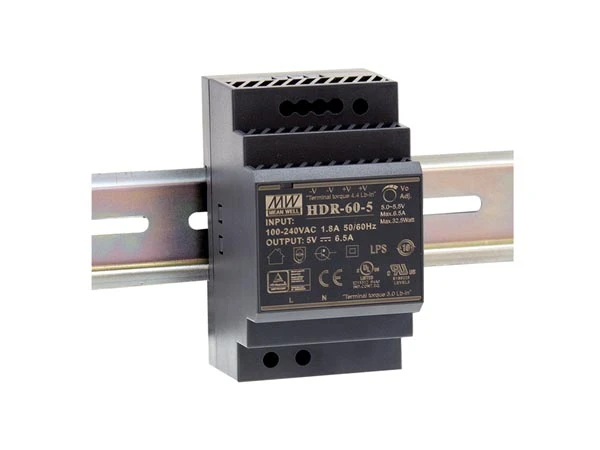

Image is for illustrative purposes only
ultra slim design with 52.5 mm (3SU) widthuniversal input 85-264 VAC (277 VAC operational)no load power consumption <0.3 Wisolation class IIpass LPS (limited power source)DC output voltage adjustableprotections: short circuit / overload / over voltagecooling by free air convection (working temperature : -30 - +70°C)DIN rail TS-35/7.5 or 15 mountableover voltage category IIILED indicator power on3 year warrantyfor professional use onlyThis device must be installed by a qualified person.
Primary colours: Black
Depth unit: 54.5 mm
Height unit: 90 mm
Width unit: 52.5 mm
Weight unit: 190 g
Material: Flame-retardant PC (polycarbonate)
Number of outputs: 1
Output power rating: 60 W
Output current rating: 4 A
Mounting type: DIN-rail mounting
Power supply series: HDR
IP rating: IP20
Usage location: Indoor only
Output voltage rating VDC: 15 V
Input voltage rating VAC range: 85-264 V
Input voltage rating VDC range: 120-370 V
Input current rating at 115 VAC: 1.2 A
Input current rating at 230 VAC: 0.8 A
Input frequency range: 47-63 Hz
Depth unit: 54.5 mm
Height unit: 90 mm
Width unit: 52.5 mm
Weight unit: 190 g
Material: Flame-retardant PC (polycarbonate)
Number of outputs: 1
Output power rating: 60 W
Output current rating: 4 A
Mounting type: DIN-rail mounting
Power supply series: HDR
IP rating: IP20
Usage location: Indoor only
Output voltage rating VDC: 15 V
Input voltage rating VAC range: 85-264 V
Input voltage rating VDC range: 120-370 V
Input current rating at 115 VAC: 1.2 A
Input current rating at 230 VAC: 0.8 A
Input frequency range: 47-63 Hz
-
