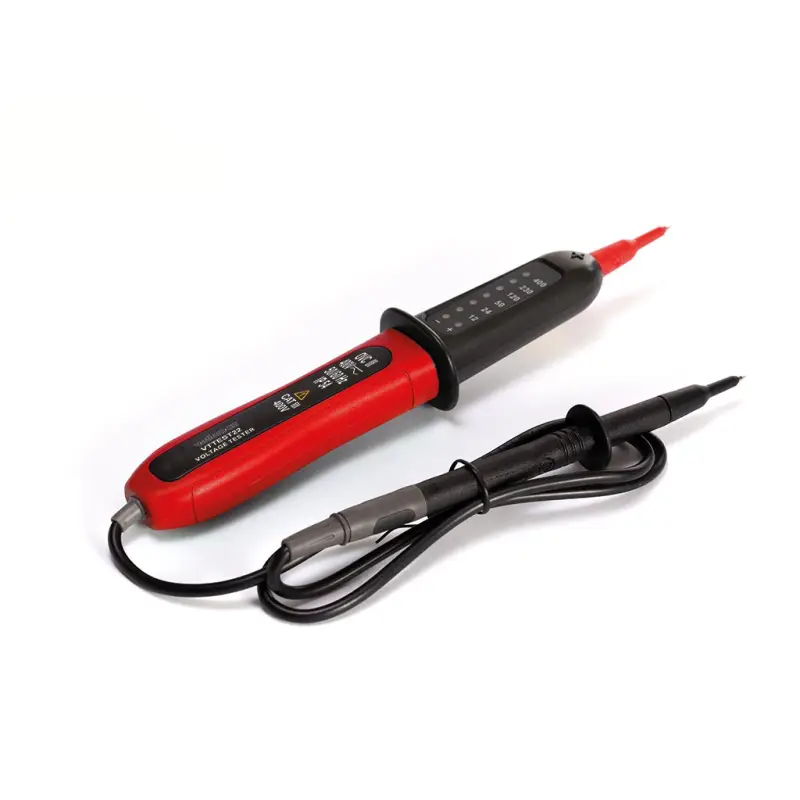

Two-pole voltage tester - Cat III - 400V - LED indication

Our Two-pole voltage tester detects both DC and AC voltages within a wide range of 12 to 400 V. It has a polarity indication and an intuitive 6-Level LED display with intermediate steps 12, 24, 50, 120, 230 and 400VAC and VDC.
Specifications:

Product basic info
Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
Primary colours: Red
Additional colours: Black
Depth unit: 32 mm
Height unit: 223 mm
Width unit: 40 mm
Weight unit: 98.5 g
Material: ABS
Physical properties
Display: Yes
Display type: LED
LED light: No
Electrical data
AC voltage:

AC Voltage LED Steps: ±12V, 24V, 50V, 120V, 230V, 400V

Accuracy: -30 % ~ 0 % of indication

Frequency: 50/60 Hz

Operation Time Maximum 30 s

Recovery Time 10 minutes

Relative Humidity < 80 % RH

DC voltage:

DC Voltage LED Steps: ±12V, 24V, 50V, 120V, 230V, 400V

Accuracy: -30 % ~ 0 % of indication

Frequency: 50/60 Hz

Operation Time Maximum 30 s

Recovery Time 10 minutes

Relative Humidity < 80 % RH

AC voltage measurements: 12-400 V
DC voltage measurements: 12-400 V
Technical data
VDE approved: No
Safety rating: CAT III / 400 V
Voltage tester type: AC / DC
Environmental data
IP rating: IP54
Operating temperature range: -10-55 °C
Usage location: Indoor & outdoor
Operational properties
Maximum operating altitude: < 2000 m
Electrical connections
Number of poles: 2
Power supply
Battery required: No
Voltage rating range: 12-400 V
Included
LED indicator: Yes
