SKU:ANT0641
Image is for illustrative purposes only
Cabletech Active Directional Antenna for DVB-T2 Digital Terrestrial Television The Cabletech outdoor directional TV antenna is a device that allows you to receive DVB-T and DVB-T2 digital terrestrial television from long distances, even in difficult terrain with high interference. The antenna operates in the VHF 174-230 MHz and UHF 470-790 MHz bands, guaranteeing proper reception of high-quality signal, so you can enjoy excellent picture and sound of your favorite series or movies.
Powerful LTE Antenna What's more, thanks to VHF band support, the Cabletech antenna allows you to receive digital terrestrial television channels located on the MUX 8 multiplex. The LTE filter used in this model eliminates LTE network interference that affects the quality of the terrestrial television signal.
The antenna has a gain of up to 25 dB. The solid construction makes the antenna not only easy to install, but above all guarantees long-lasting, stable operation in all weather conditions.
Powerful LTE Antenna What's more, thanks to VHF band support, the Cabletech antenna allows you to receive digital terrestrial television channels located on the MUX 8 multiplex. The LTE filter used in this model eliminates LTE network interference that affects the quality of the terrestrial television signal.
The antenna has a gain of up to 25 dB. The solid construction makes the antenna not only easy to install, but above all guarantees long-lasting, stable operation in all weather conditions.
Main parameters
Frequency range: (VHF) 174-230 MHz, (UHF) 470-790 MHz
Bands: DVB-T / DVB-T2 / DAB+
Channels: 5-12; 21-60
Impedance: 75 Ohm
Number of elements: 28
Gain: (VHF) 10 dB, (UHF) 30 dB
Front-to-back ratio: 25 dB
Beamwidth H / V: H 38° / V 80°
Polarization: Horizontal
LTE filter: Yes
Antenna length: 1055 mm
Material: Aluminum + steel + ABS
Click-clack system (easy assembly): Yes
Type: Active directional
Mounting: Outdoor

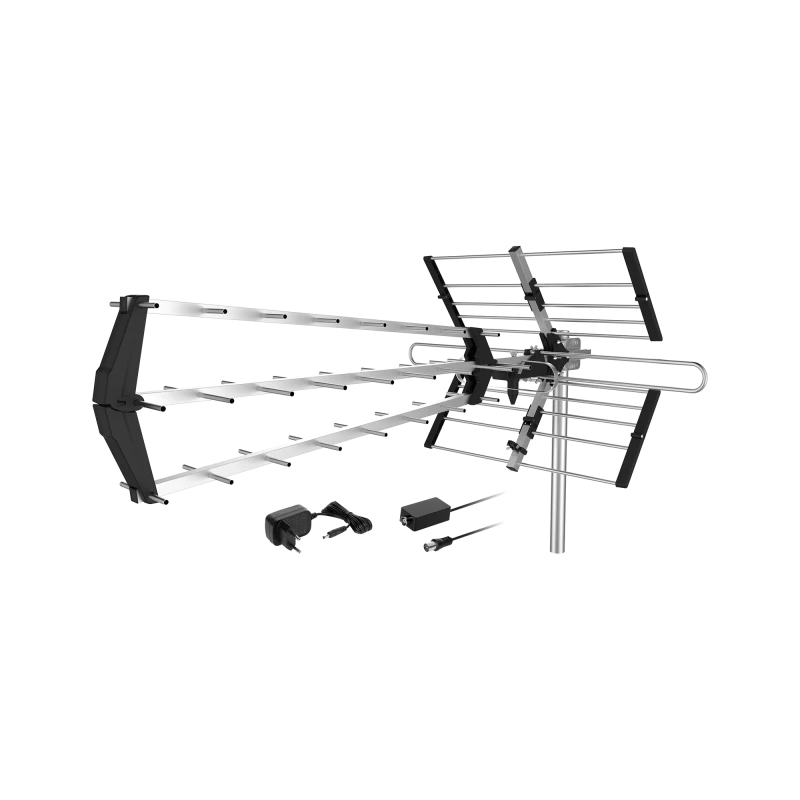

Included: External amplifier, power supply, waterproof connector, F connector, mounting accessories
----------
Power supply characteristics
Input voltage: 100-240 V AC
Input frequency (AC): 50/60 Hz
Output voltage: 5 V DC
Output current: 0,55 A
Output power: 2,75 W
Average efficiency during operation: 72,1%
Power consumption without load: 0,06 W
----------
Product features
Receives 4K digital television signal, VHF and UHF signals
Compatible with digital signals (DVB-T, DVB-T2, ISDB-T, DMB-T / H, ATSC)
Provides digital and analog television signal reception
Professional structure - stable construction and easy to assemble
Weather resistant: water and UV resistant
Frequency range: (VHF) 174-230 MHz, (UHF) 470-790 MHz
Bands: DVB-T / DVB-T2 / DAB+
Channels: 5-12; 21-60
Impedance: 75 Ohm
Number of elements: 28
Gain: (VHF) 10 dB, (UHF) 30 dB
Front-to-back ratio: 25 dB
Beamwidth H / V: H 38° / V 80°
Polarization: Horizontal
LTE filter: Yes
Antenna length: 1055 mm
Material: Aluminum + steel + ABS
Click-clack system (easy assembly): Yes
Type: Active directional
Mounting: Outdoor
Included: External amplifier, power supply, waterproof connector, F connector, mounting accessories
----------
Power supply characteristics
Input voltage: 100-240 V AC
Input frequency (AC): 50/60 Hz
Output voltage: 5 V DC
Output current: 0,55 A
Output power: 2,75 W
Average efficiency during operation: 72,1%
Power consumption without load: 0,06 W
----------
Product features
Receives 4K digital television signal, VHF and UHF signals
Compatible with digital signals (DVB-T, DVB-T2, ISDB-T, DMB-T / H, ATSC)
Provides digital and analog television signal reception
Professional structure - stable construction and easy to assemble
Weather resistant: water and UV resistant
-
