SKU:ANT0724

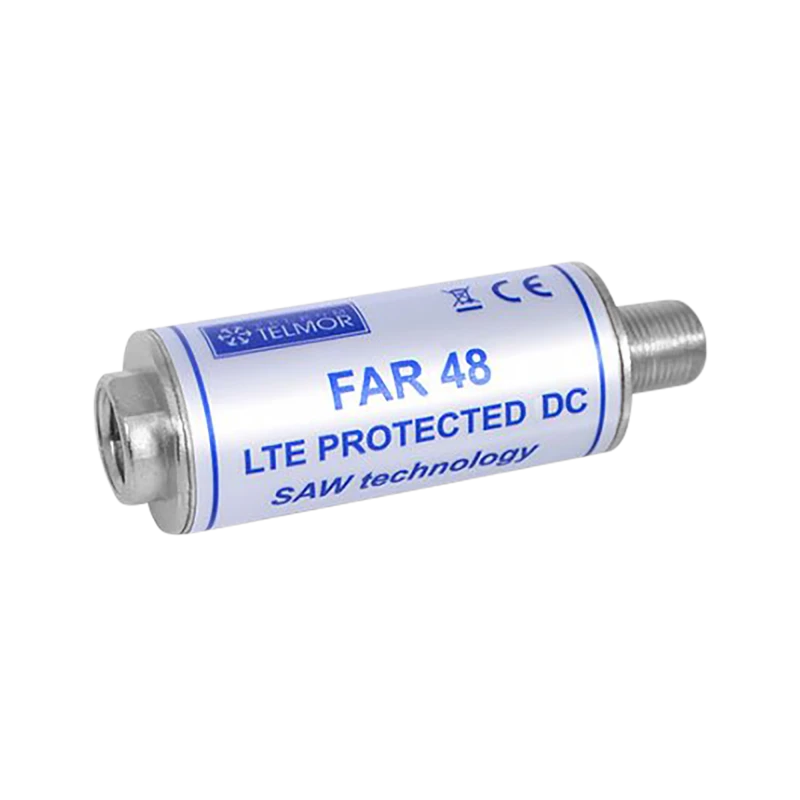

Image is for illustrative purposes only
----------
Technical Data
----------
Frequency range in the passband: 47-694 MHz
Attenuation in the passband: 4 dB
Attenuation in the stopband: >18 dB / 698-718 MHz; >26 dB / 718-725 MHz; >30 dB / 725-2600 MHz
DC pass: yes
Power transfer from OUTPUT side (max.): 5-24 V DC / 100 mA
Input impedance: 75 Ohm
Output impedance: 75 Ohm
Input connector type: F socket
Output connector type: F plug
Operating temperature: -20~50 degrees Celsius
Dimensions: 64 mm (length) x 20 mm (diameter)
Weight: 0.045 kg
-----------
General
-----------
FAR 48 is an LTE low-pass filter designed to cut out interfering signals in the frequency range above 694 MHz, including LTE 700 and 5G signals. The filter passes signals in the frequency range of 47-694MHz, which corresponds to television and radio channels from the following bands: FM, VHF, UHF.
The filter is designed for indoor use.
FAR 48 LTE PROTECTED DC PASS with DC voltage pass (possibility of powering antenna preamplifiers)
