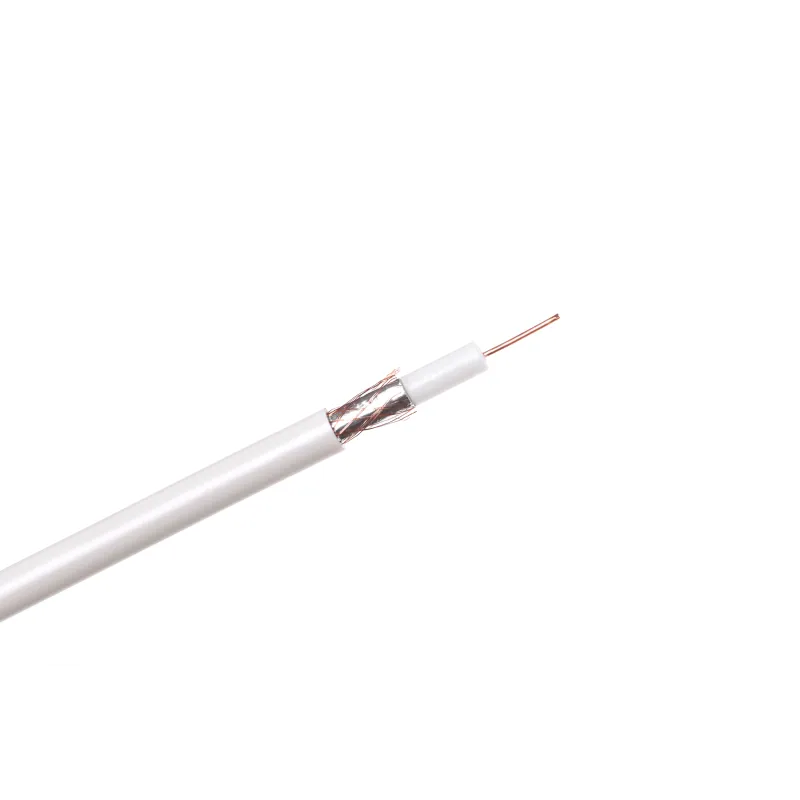

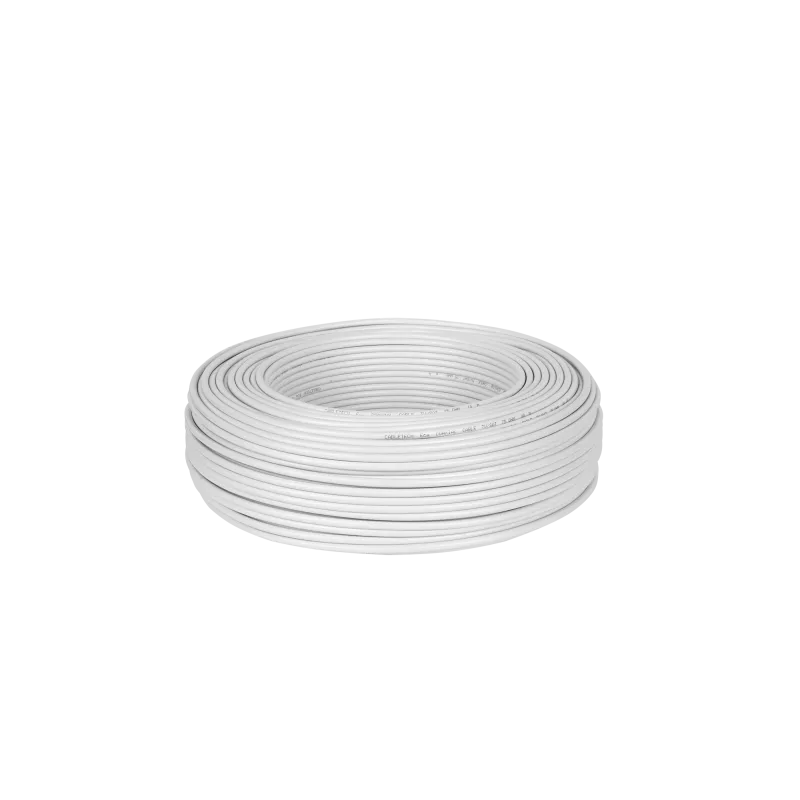

TV-SAT CU+CU cable 150m/k.CABLETECH

SKU:KAB0015

Image is for illustrative purposes only

TV-SAT CU+CU Cable Are you looking for a cable that will ensure excellent television signal quality? The TV-SAT CU+CU 150m/k cable from CABLETECH is an exceptional choice for those who expect perfection in every detail. With an excellent average wave impedance of 76.1 Ω and attenuation of 8.5 dB/100m at 200 MHz, it ensures not only clear picture and sound, but also flawless signal transmission without any interference.
High Quality The cable also offers excellent shielding with a factor of >77 dB and a copper braid with aluminum foil, which effectively protects against electromagnetic interference. Durable PE and PVC insulation ensures resistance to damage and the flexibility needed for easy installation.

Universal cable: 75 Ohm
Average wave impedance (200MHz): 76.1 ohm
Average dielectric constant: 1.38
Cable attenuation: f = 200MHz: 8.5 dB/100m
Shielding factor: >77dB
Packaging: 150m
Conductor: 1.0mm, copper
Braid: 32 x 0.12, copper plus AL foil
Internal insulation: 4.9mm PE
External insulation: 6.8mm PVC
ATTENUATION db/100
5MHz[dB/100m] - 1.9
55MHz[dB/100m] - 5.25
300MHz[dB/100m] - 11.64
500MHz[dB/100m] - 15.09
550MHz[dB/100m] - 16.08
865MHz[dB/100m] - 20.01
1000MHz[dB/100m] - 21.49
Pieces in carton: 4
