SKU:MIE0487

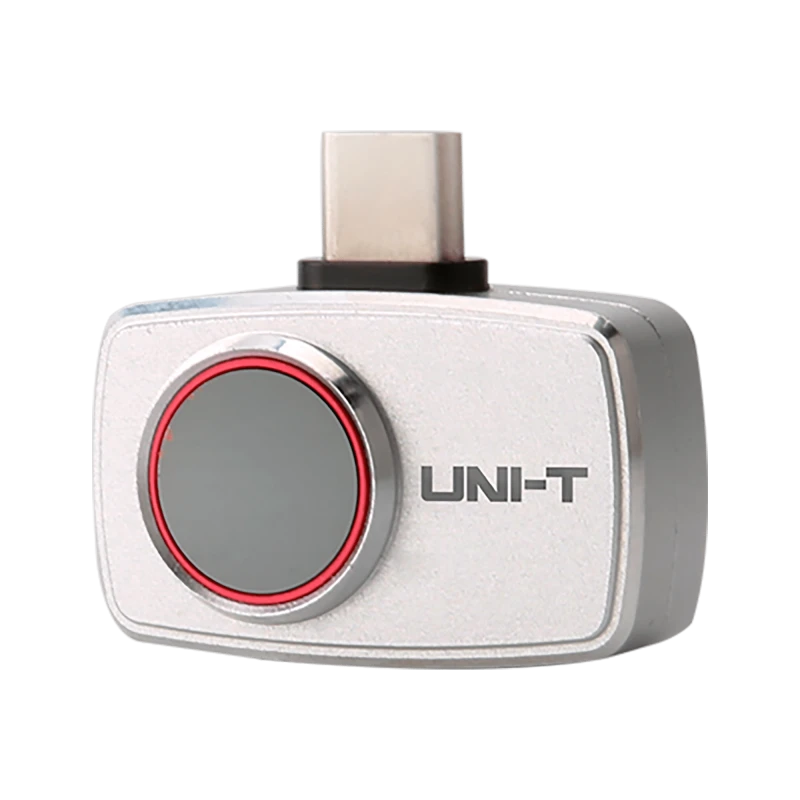

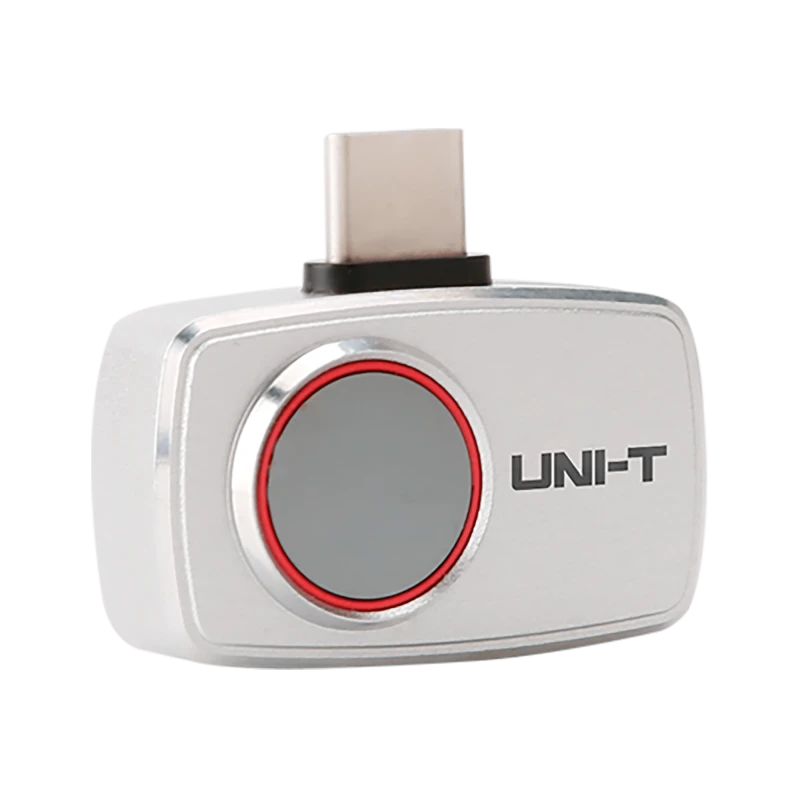

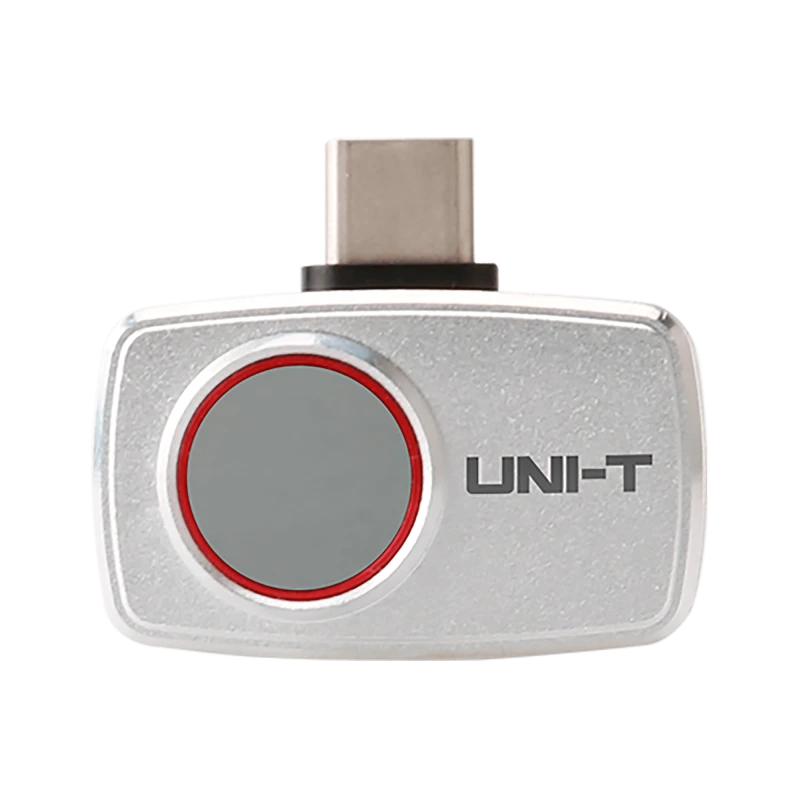

Uni-T UTi720M Thermal Camera
Image is for illustrative purposes only
Uni-T UTi720M Thermal Camera The Uni-T UTi720M thermal camera is a compact, high-quality tool that enables precise temperature monitoring in a wide range of applications. Designed for professionals, it is ideal for technical diagnostics, infrastructure inspection, and maintenance work.
High Precision and Sensitivity The camera offers a temperature measurement range from -20°C to 200°C with an accuracy of ±2°C or ±2%, which guarantees precise and reliable results. Thanks to the IR resolution of 256 x 192 pixels and a spatial resolution of 3.8 mrad, the device delivers detailed thermal images, enabling accurate analysis of objects and surfaces.
Multifunctionality and Versatility The Uni-T UTi720M has as many as 7 different color palettes, which allows you to adjust the image to the specific needs of the user and working conditions. A high image refresh rate of 25 Hz ensures smooth display, which is crucial for dynamic temperature changes. The camera also has the ability to adjust the emissivity in the range from 0.01 to 1.00, which increases the accuracy of measurements in various material conditions.
Compact and Easy to Use With small dimensions of 33 x 28 x 11 mm and a weight of only 12.3 g, the Uni-T UTi720M camera is extremely mobile and easy to transport. The USB-C connector provides a fast and stable connection to devices with Android 6 or higher. CE, UKCA, FCC, and RoHS certifications confirm high quality and compliance with international standards.
Temperature range: -20°C ~ 200°C
Accuracy: ±2°C or ±2%
IR Resolution: 256 x 192 px
Color palettes: 7
Spatial resolution: 3.8 mrad
Image frequency: 25 Hz
Color palettes: 7
Field of view: 56° x 42.2°
Emissivity: 0.95 (default), 0.01~1.00
Pixel size: 12 µm
NETD: <50 mK at 25°C
Connector: USB-C
Required operating system: Android 6 or higher
Dimensions: 33 x 28 x 11 mm
Weight: 12.3 g
Certification: CE, UKCA, FCC, RoHS
