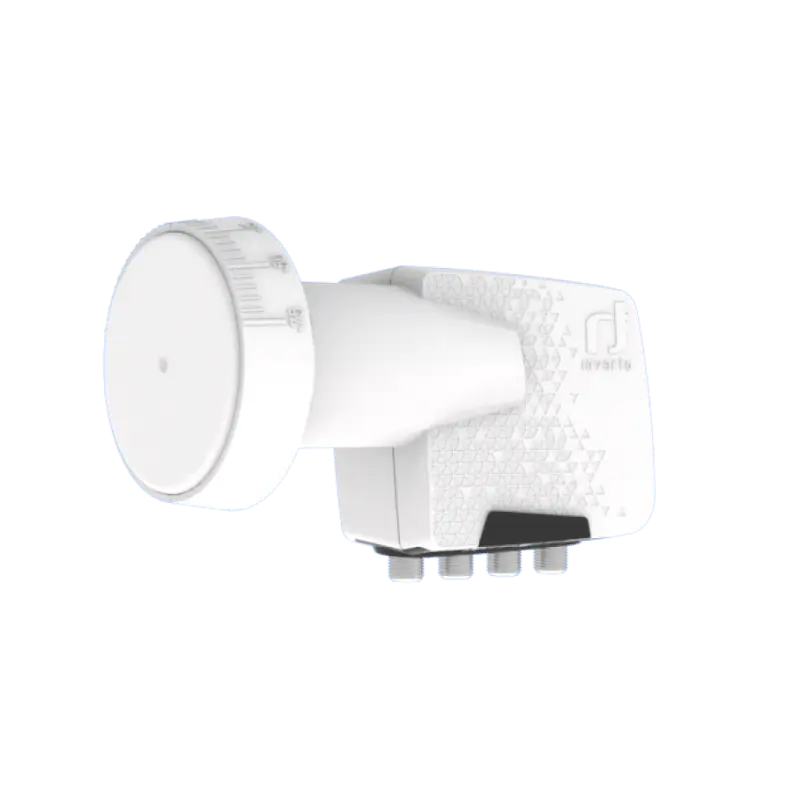

INVERTO Home Pro Quad Converter

Lower band - input: 10.7-12.75 GHz
Lower band - output: 950-1950MHz
Lower oscillator: 9.75GHz
Upper band - input: 11.7-12.75GHz
Upper band - output: 1100-2150MHz
Upper Oscillator: 10.6GHz
Noise figure: 0.3 dB (0.7 dB max)
Oscillator temperature drift: +/-3MHz max
Phase noise: +/-3MHz max
Gain: 55dB min
Gain flatness: +/-0.75dB/27MHz
Polarization control V: 11.0~14.0 V
Polarization control H: 16.0~20.0 V
Lower band control: 0kHz
Upper band control: 22kHz +/-4kHz, 0.4~0.8 Vpp
VSWR: 2.5:1
Polarization isolation: 22dB min
Current consumption: 120 mA max @11~20V
Output impedance: 75Ohm
Operating temperature: -30°C~60°C
Neck diameter: 40mm
Neck length: 50mm
Connector: F
Converter weight: 224 g
