Single INVERTO Home Pro Converter
SKU:URZ0975

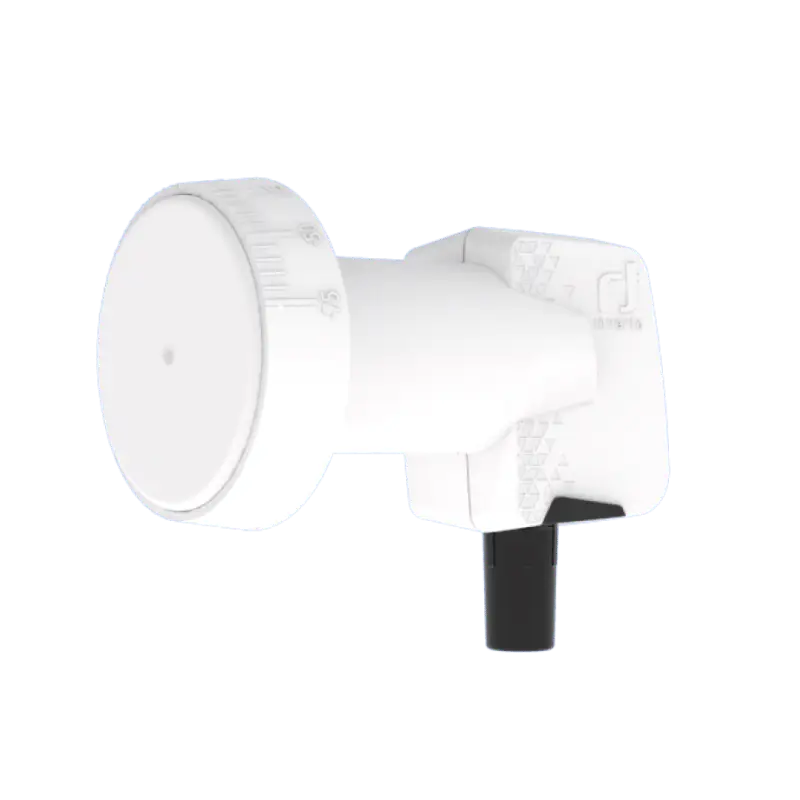

Image is for illustrative purposes only
Input Frequency Range: 10.7 GHz - 12.75 GHz
Output Frequency Range: 950 MHz - 2150 MHz
Low Band LO Frequency: 9.75 GHz
High Band LO Frequency: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy @ 25 ° C: +/- 500 kHz max.
LO Phase Noise @ 10 kHz: +/- 1.0 MHz max.
Conversion Gain: 55 dB min.
Gain Ripple (over 26 MHz bandwidth): +/- 0.75 dB
Gain Variation (over full band): +/- 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB min.
Control Signal Ca (V): 11.0 V - 14.0 V
Control Signal Cb (H): 16.0 V - 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 95 mA
Operating Temperature: -30 st. C + 60st. C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 136 g
Output Frequency Range: 950 MHz - 2150 MHz
Low Band LO Frequency: 9.75 GHz
High Band LO Frequency: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy @ 25 ° C: +/- 500 kHz max.
LO Phase Noise @ 10 kHz: +/- 1.0 MHz max.
Conversion Gain: 55 dB min.
Gain Ripple (over 26 MHz bandwidth): +/- 0.75 dB
Gain Variation (over full band): +/- 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB min.
Control Signal Ca (V): 11.0 V - 14.0 V
Control Signal Cb (H): 16.0 V - 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 95 mA
Operating Temperature: -30 st. C + 60st. C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 136 g
Input Frequency Range: 10.7 GHz - 12.75 GHz
Output Frequency Range: 950 MHz - 2150 MHz
LO Frequency Low Band: 9.75 GHz
LO Frequency High Band: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy at 25 ° C: +/- 500 kHz max.
LO Phase Noise at 10 kHz: +/- 1.0 MHz max.
Conversion Gain: 55 dB min.
Gain Ripple (over 26 MHz band): +/- 0.75 dB
Gain Variation (over full range): +/- 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB min.
Control Signal Ca (V): 11.0 V - 14.0 V
Control Signal Cb (H): 16.0 V - 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 95 mA
Operating Temperature: -30 st. C + 60 st. C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 136 g
Output Frequency Range: 950 MHz - 2150 MHz
LO Frequency Low Band: 9.75 GHz
LO Frequency High Band: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy at 25 ° C: +/- 500 kHz max.
LO Phase Noise at 10 kHz: +/- 1.0 MHz max.
Conversion Gain: 55 dB min.
Gain Ripple (over 26 MHz band): +/- 0.75 dB
Gain Variation (over full range): +/- 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB min.
Control Signal Ca (V): 11.0 V - 14.0 V
Control Signal Cb (H): 16.0 V - 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 95 mA
Operating Temperature: -30 st. C + 60 st. C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 136 g
