SKU:URZ0974

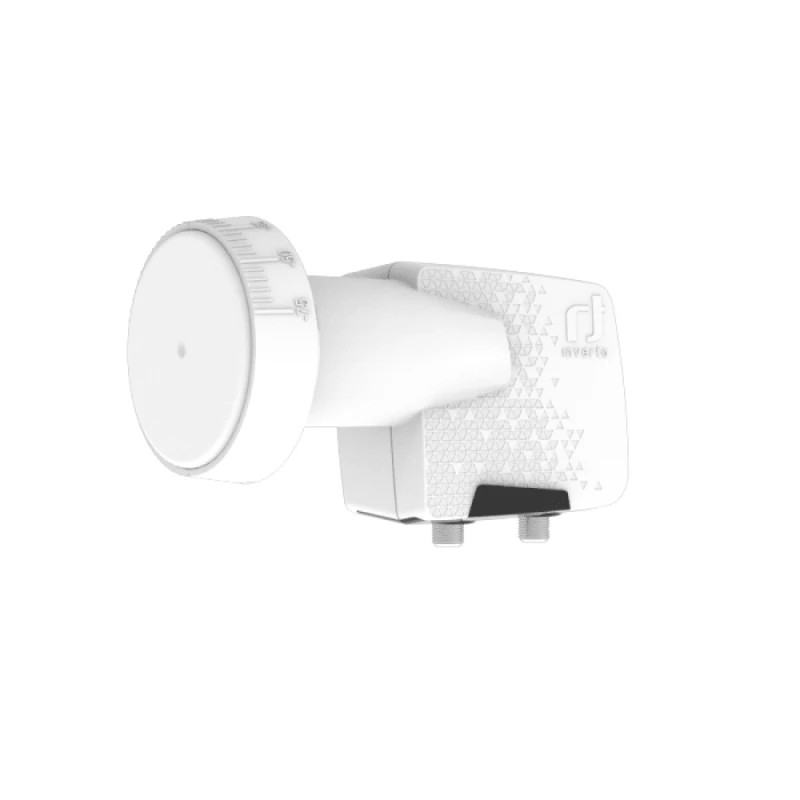

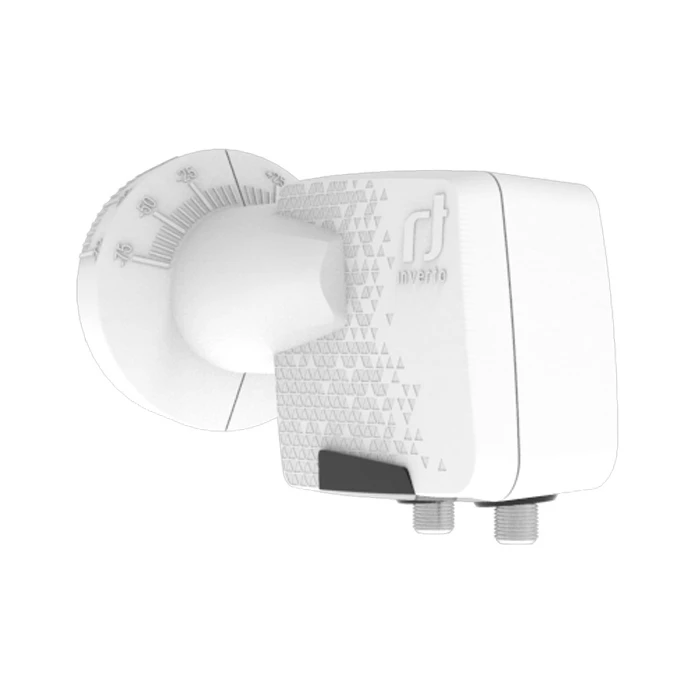

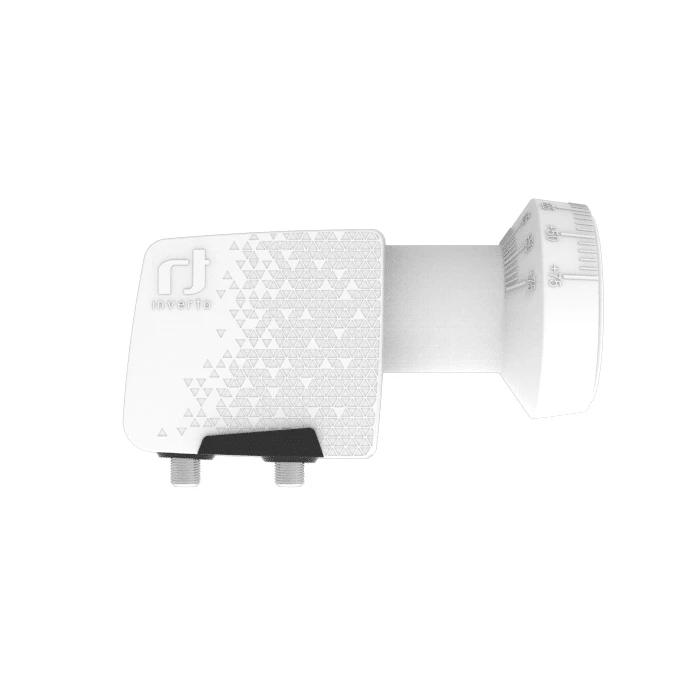

Image is for illustrative purposes only
Input Frequency Range: 10.7 GHz ~ 12.75 GHz
Output Frequency Range: 950 MHz ~ 2150 MHz
Low Band LO Frequency: 9.75 GHz
High Band LO Frequency: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy @ 25 °C: ± 500 kHz max.
LO Temperature Drift: ± 1.0 MHz max.
LO Phase Noise @ 10 kHz: -80 dBc / Hz max.
Conversion Gain: 55 dB min.
Gain Flatness (over full band): ± 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB typ.
Control Signal Ca (V): 11.0 V ~ 14.0 V
Control Signal Cb (H): 16.0 V ~ 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 120 mA max. @ 11 VDC ~ 20 VDC
Operating Temperature: -30 °C ~ + 60 °C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 218g
Output Frequency Range: 950 MHz ~ 2150 MHz
Low Band LO Frequency: 9.75 GHz
High Band LO Frequency: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy @ 25 °C: ± 500 kHz max.
LO Temperature Drift: ± 1.0 MHz max.
LO Phase Noise @ 10 kHz: -80 dBc / Hz max.
Conversion Gain: 55 dB min.
Gain Flatness (over full band): ± 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB typ.
Control Signal Ca (V): 11.0 V ~ 14.0 V
Control Signal Cb (H): 16.0 V ~ 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 120 mA max. @ 11 VDC ~ 20 VDC
Operating Temperature: -30 °C ~ + 60 °C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 218g
Input Frequency Range: 10.7 GHz ~ 12.75 GHz
Output Frequency Range: 950 MHz ~ 2150 MHz
LO Low Frequency: 9.75 GHz
LO High Frequency: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy at 25 ° C: ± 500 kHz max.
LO Temperature Drift: ± 1.0 MHz max.
LO Phase Noise at 10 kHz: -80 dBc / Hz max.
Conversion Gain: 55 dB min.
Gain Flatness (over full band): ± 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB typ.
Control Signal Ca (V): 11.0 V ~ 14.0 V
Control Signal Cb (H): 16.0 V ~ 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 120 mA max. @ 11 VDC ~ 20 VDC
Operating Temperature: -30 ° C ~ + 60 ° C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 218g
Output Frequency Range: 950 MHz ~ 2150 MHz
LO Low Frequency: 9.75 GHz
LO High Frequency: 10.6 GHz
Noise Figure: 0.3 dB typ. (0.7 dB max.)
LO Frequency Accuracy at 25 ° C: ± 500 kHz max.
LO Temperature Drift: ± 1.0 MHz max.
LO Phase Noise at 10 kHz: -80 dBc / Hz max.
Conversion Gain: 55 dB min.
Gain Flatness (over full band): ± 4 dB
Image Rejection: 40 dB min.
3rd Order Intermodulation - ICP3: 10 dBm min.
1 dB Compression Point (@ output): 0 dBm min.
Cross Polarization Isolation: 22 dB typ.
Control Signal Ca (V): 11.0 V ~ 14.0 V
Control Signal Cb (H): 16.0 V ~ 20.0 V
Control Signal Cc (Band Switching): 22 kHz ± 4 kHz, 0.4 V ~ 0.8 V pp
Output VSWR: 2.5: 1
In Band Spurious Level: -60 dBm max.
Current Consumption: 120 mA max. @ 11 VDC ~ 20 VDC
Operating Temperature: -30 ° C ~ + 60 ° C
Output Impedance: 75 Ohm
Output Connector Type: F-type (female)
Dish F / D Ratio: 0.6
Weight: 218g
