SKU:MIE0173
Image is for illustrative purposes only

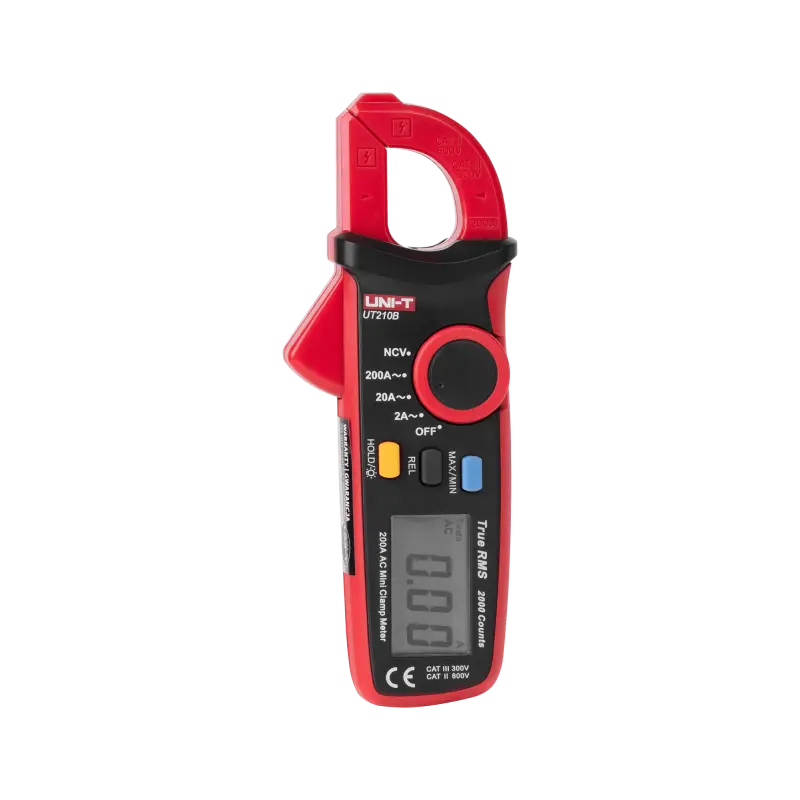

The UT210B pocket clamp meter with TRUE RMS function allows for quick and convenient measurements of AC load 2A/20A/200A. The device is lightweight and very easy to use, making it useful not only for electricians, but also for electrical contractors who perform frequent and quick electrical tests on a daily basis.
To avoid errors in measurements, the device has a low battery indication function. Additionally, to increase battery efficiency, the meter is equipped with an automatic shutdown option.
To avoid errors in measurements, the device has a low battery indication function. Additionally, to increase battery efficiency, the meter is equipped with an automatic shutdown option.
MEASUREMENT RANGES
AC Current Measurement Range: 2 A/ 20 A/ 200 A ±(2.5%+20)
ADDITIONAL FUNCTIONS
Manual range selection
Data hold
Non-contact voltage detection (NCV)
True RMS measurement
Maximum/minimum value recording
Relative measurement mode
Backlit LCD screen
Automatic power off: after approx. 15 minutes
Low battery indicator: =< 2.5 V
Maximum reading: 2000
GENERAL CHARACTERISTICS
Measurement rate: 2 ~ 3/s
Power supply: 2x 1.5 V (R03)
Jaw opening: 16 mm
Display size: 39.3 x 26.5 mm
Dimensions: 158 x 60 x 33.5 mm
Weight: 150 g
Accessories: batteries
AC Current Measurement Range: 2 A/ 20 A/ 200 A ±(2.5%+20)
ADDITIONAL FUNCTIONS
Manual range selection
Data hold
Non-contact voltage detection (NCV)
True RMS measurement
Maximum/minimum value recording
Relative measurement mode
Backlit LCD screen
Automatic power off: after approx. 15 minutes
Low battery indicator: =< 2.5 V
Maximum reading: 2000
GENERAL CHARACTERISTICS
Measurement rate: 2 ~ 3/s
Power supply: 2x 1.5 V (R03)
Jaw opening: 16 mm
Display size: 39.3 x 26.5 mm
Dimensions: 158 x 60 x 33.5 mm
Weight: 150 g
Accessories: batteries
