SKU:MIK0142

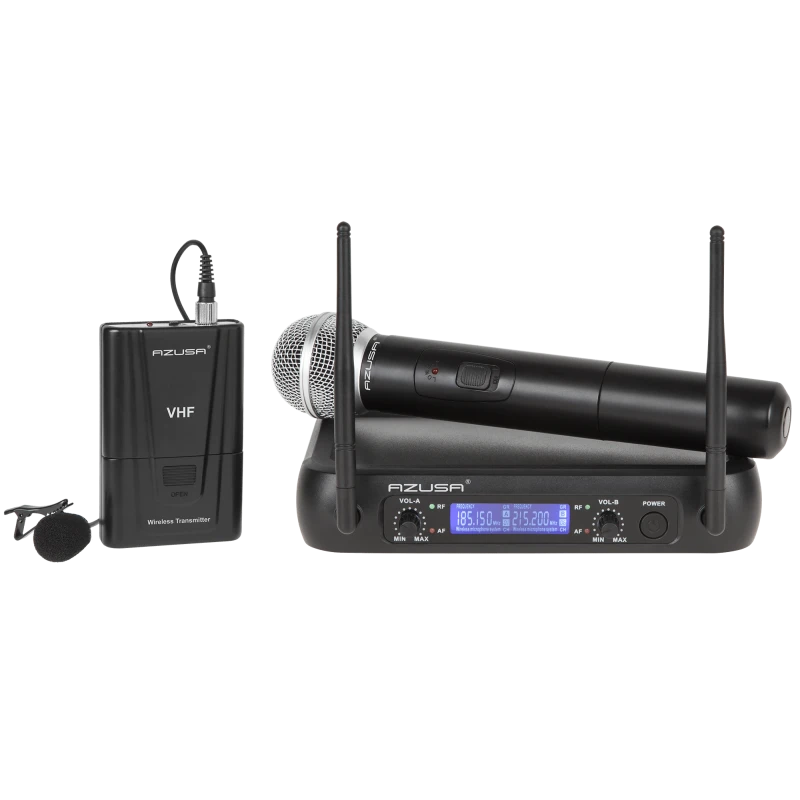

VHF Microphone 2 Channels WR-358LD The VHF WR-358LD microphone is a versatile audio solution, ideal for a variety of applications such as presentations, live performances, or conferences. The 2-channel system offers high sound quality and reliable signal transmission, providing flexibility and ease of use.
Advanced Transmission Technology The WR-358LD microphone operates in the carrier frequency range of 170 to 270 MHz, which ensures stable signal transmission thanks to FM modulation and precise frequency stabilization with an accuracy of +/- 0.005%. A frequency response of 40 Hz to 20 kHz and a signal-to-noise ratio above 100 dB guarantee clear and crisp sound. A maximum deviation of +/- 15 kHz and a low distortion level (T.H.D. <0.5%) ensure high transmission quality. A range of up to 50 meters and an operating temperature range of -10 to 50°C provide flexibility in various usage conditions.
Versatile Microphone Set The set includes two microphones: one handheld and one clip-on, enabling a variety of applications. The handheld microphone is equipped with a built-in antenna and a unidirectional characteristic, ensuring precise sound capture. The clip-on microphone is an excellent choice for those who need hands-free speaking.
Receiver and Transmitter Specifications The microphone receiver ensures stable signal reception thanks to quartz frequency stabilization. A reception sensitivity with a signal-to-noise ratio of 60 dB (12 dBU) and an audio output level of 0~0.5 V at 5 kOhm for CHA+B channels and 0~0.5 V at 50 kOhm for both CHA&CHB channels guarantee high sound quality. The AC adapter providing a voltage of 13-15 V and 500 mA provides the necessary power for stable system operation.
Advanced Transmission Technology The WR-358LD microphone operates in the carrier frequency range of 170 to 270 MHz, which ensures stable signal transmission thanks to FM modulation and precise frequency stabilization with an accuracy of +/- 0.005%. A frequency response of 40 Hz to 20 kHz and a signal-to-noise ratio above 100 dB guarantee clear and crisp sound. A maximum deviation of +/- 15 kHz and a low distortion level (T.H.D. <0.5%) ensure high transmission quality. A range of up to 50 meters and an operating temperature range of -10 to 50°C provide flexibility in various usage conditions.
Versatile Microphone Set The set includes two microphones: one handheld and one clip-on, enabling a variety of applications. The handheld microphone is equipped with a built-in antenna and a unidirectional characteristic, ensuring precise sound capture. The clip-on microphone is an excellent choice for those who need hands-free speaking.
Receiver and Transmitter Specifications The microphone receiver ensures stable signal reception thanks to quartz frequency stabilization. A reception sensitivity with a signal-to-noise ratio of 60 dB (12 dBU) and an audio output level of 0~0.5 V at 5 kOhm for CHA+B channels and 0~0.5 V at 50 kOhm for both CHA&CHB channels guarantee high sound quality. The AC adapter providing a voltage of 13-15 V and 500 mA provides the necessary power for stable system operation.
Kanał: dwa
Channel: Two
Microphones: 1x handheld microphone + 1 clip-on microphone
General:
Carrier Frequency Range: 170-270 MHz, VHF
Frequency Stability: +/- 0.005%
Modulation: FM
Maximum Transmitter Power: 10mW
Maximum Deviation: +/- 15 kHz
Frequency Response: 40 Hz – 20 kHz
S/N Ratio: >100 dB
Dynamic Range: >100 dB
T.H.D.: <0.5%
Range: Up to 50 meters
Temperature Range: -10~50oC
Receiver:
Reception: Quartz-controlled frequency stabilization
Reception Sensitivity: S/N Ratio: 60 dB (12 dBU)
S/N Ratio: >100 dB
Audio Output Level: Unbalanced CHA+B:0~0.5 V/5 kOhm
Unbalanced CHA&CHB: 0~0.5 V/50 kOhm
Power Supply: 13-15 V; 500 mA
Microphone:
RF Output Power: Max. 30 mW
Harmonic Frequency Emission: Over 45 dB carrier wave
Antenna: Built-in
Microphone: Unidirectional
Battery: Handheld 2xAA batteries; Clip-on 2xAA batteries
Channel: Two
Microphones: 1x handheld microphone + 1 clip-on microphone
General:
Carrier Frequency Range: 170-270 MHz, VHF
Frequency Stability: +/- 0.005%
Modulation: FM
Maximum Transmitter Power: 10mW
Maximum Deviation: +/- 15 kHz
Frequency Response: 40 Hz – 20 kHz
S/N Ratio: >100 dB
Dynamic Range: >100 dB
T.H.D.: <0.5%
Range: Up to 50 meters
Temperature Range: -10~50oC
Receiver:
Reception: Quartz-controlled frequency stabilization
Reception Sensitivity: S/N Ratio: 60 dB (12 dBU)
S/N Ratio: >100 dB
Audio Output Level: Unbalanced CHA+B:0~0.5 V/5 kOhm
Unbalanced CHA&CHB: 0~0.5 V/50 kOhm
Power Supply: 13-15 V; 500 mA
Microphone:
RF Output Power: Max. 30 mW
Harmonic Frequency Emission: Over 45 dB carrier wave
Antenna: Built-in
Microphone: Unidirectional
Battery: Handheld 2xAA batteries; Clip-on 2xAA batteries
