SKU:MIK0141
VHF Microphone 2 Channels WR-358LD (2 x Handheld Mics)
Image is for illustrative purposes only

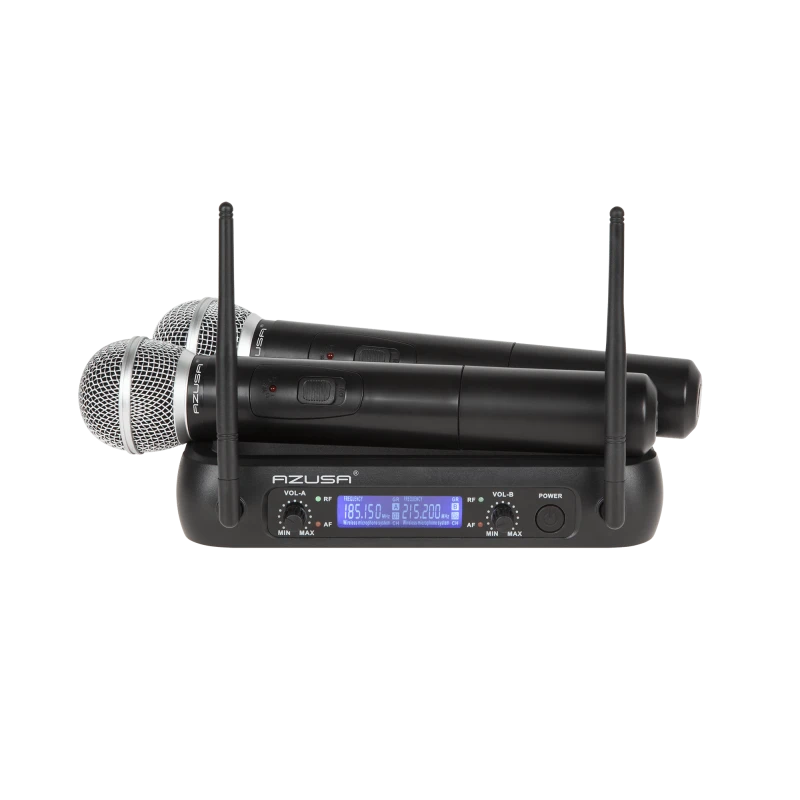

VHF Microphone 2 Channels WR-358LD The VHF WR-358LD microphone is a professional audio solution that combines functionality and high sound quality in one device. This system, equipped with two handheld microphones, provides reliable transmission and flexibility in a variety of applications, such as live performances, presentations, or conferences.
High-Quality Transmission The WR-358LD system operates in the carrier frequency range of 170 to 270 MHz, ensuring stable and clear signal transmission thanks to FM modulation and precise frequency stabilization with an accuracy of +/- 0.005%. The frequency response from 40 Hz to 20 kHz, along with a high signal-to-noise ratio above 100 dB and a dynamic range exceeding 100 dB, guarantees exceptional sound quality.
A maximum deviation of +/- 15 kHz and a low level of distortion (T.H.D. <0.5%) ensure accurate sound reproduction. A range of up to 50 meters and a wide operating temperature range from -10 to 50°C allow for use in various conditions.

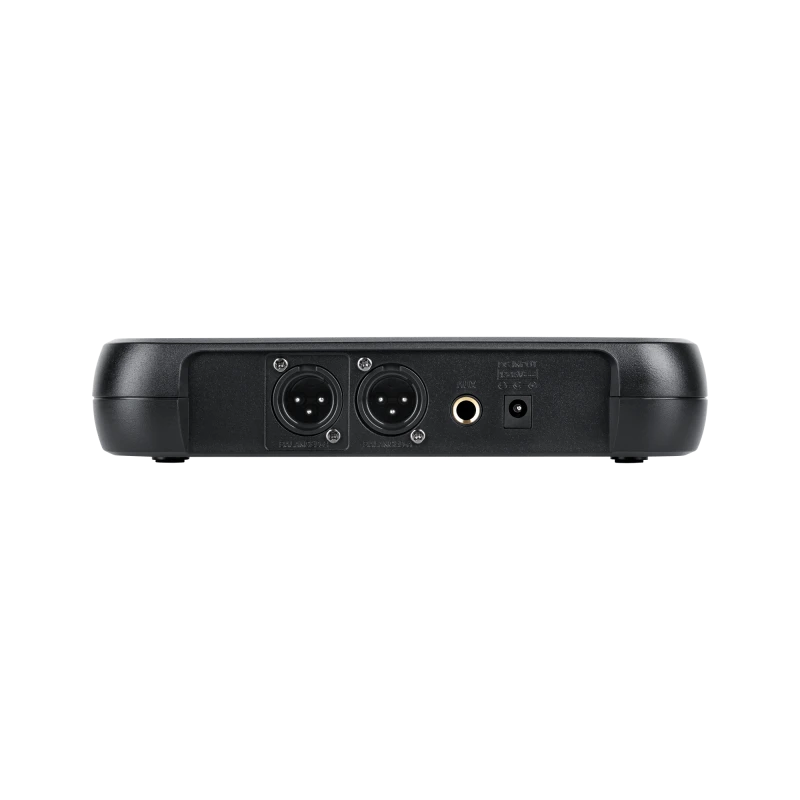

Receiver with Precise Stabilization The WR-358LD microphone receiver offers quartz-controlled frequency stabilization, ensuring reliable and accurate reception. A reception sensitivity with a signal-to-noise ratio of 60 dB (12 dBU) and an audio output level of 0~0.5 V at 5 kOhm for CHA+B channels and 0~0.5 V at 50 kOhm for CHA&CHB channels guarantee high audio signal quality.
A power adapter with a voltage of 13-15 V and a current of 500 mA ensures stable receiver operation.
High-Performance Handheld Microphones The set includes two handheld microphones that feature an RF output power of up to 30 mW and low harmonic frequency emissions (over 45 dB carrier wave). A built-in antenna and a unidirectional microphone characteristic ensure precise sound capture. The microphones are powered by two AA batteries, providing ease of use and long-lasting performance.
GENERAL:
Number of channels: 2
Microphones: 2x handheld microphone
Carrier frequency range: 170-270 MHz, VHF
Maximum transmitter power: 10mW
Frequency stability: +/- 0.005%
Modulation: FM
Maximum deviation: +/- 15 kHz
Frequency response: 40 Hz – 20 kHz
S/N ratio: >100 dB
Dynamic range: >100 dB
T.H.D.: <0.5%
Range: Up to 50 meters
Temperature range: -10~50oC
RECEIVER:
Reception: Quartz-controlled frequency stabilization
Reception sensitivity: S/N ratio: 60 dB (12 dBU)
S/N ratio: >100 dB
Audio output level:
- Unbalanced CHA+B: 0~0.5 V/5 kOhm
- Unbalanced CHA&CHB: 0~0.5 V/50 kOhm
Power supply: 13-15 V; 500 mA
MICROPHONE:
RF output power: Max. 30 mW
Harmonic frequency emission: Over 45 dB carrier wave
Antenna: Built-in
Microphone: Unidirectional
Power supply: 2xAA
