SKU:MM-214

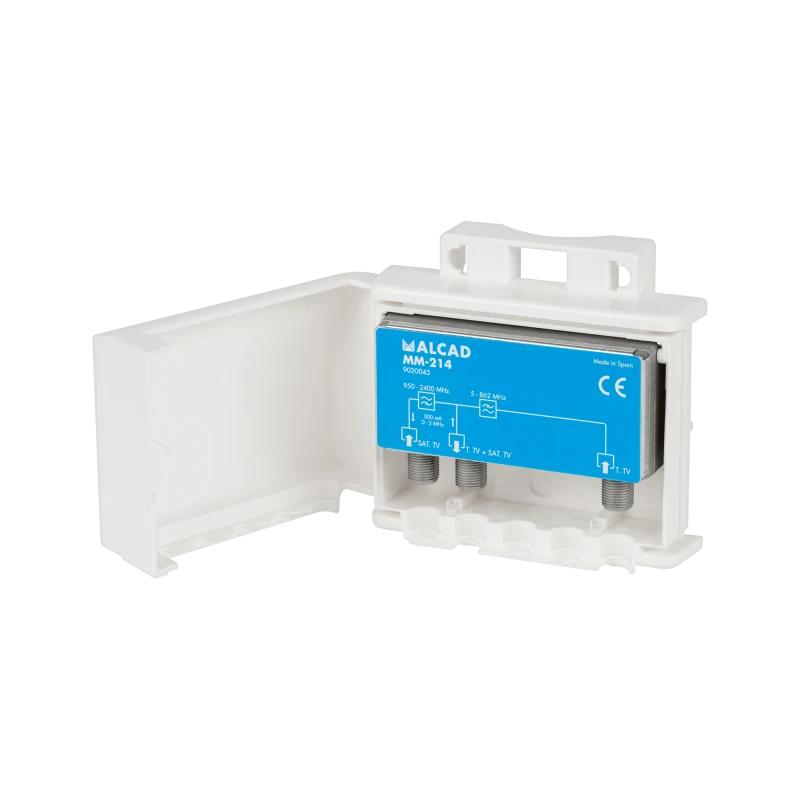

Image is for illustrative purposes only
Inputs: FM/TV, SAT
FM/TV
----------
Frequency range: 5~862 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: No
SAT
----------
Frequency range: 950~2400 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: 0~500 mA
----------
Operating temperature: -10 ~ 65 degrees C
Protection class: IP53
FM/TV
----------
Frequency range: 5~862 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: No
SAT
----------
Frequency range: 950~2400 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: 0~500 mA
----------
Operating temperature: -10 ~ 65 degrees C
Protection class: IP53
Inputs: FM/TV, SAT
FM/TV
----------
Frequency range: 5~862 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: No
SAT
----------
Frequency range: 950~2400 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: 0~500 mA
----------
Operating temperature: -10 ~ 65 degrees C
Protection class: IP53
FM/TV
----------
Frequency range: 5~862 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: No
SAT
----------
Frequency range: 950~2400 MHz
Attenuation: 1 dB +/-0.5
Isolation between bands: >= 35 dB
Matching: >= 10 dB
Power passing: 0~500 mA
----------
Operating temperature: -10 ~ 65 degrees C
Protection class: IP53
-
