SKU:ZLA0937
Image is for illustrative purposes only
----------
TECHNICAL PARAMETERS
----------
Type: RDZ-211
Operating frequency range: 5-862 MHz
Max. Insertion loss IN-OUT / IN-OUT: 4.0 dB / 4.0 dB
Impedance input/output: 75 Ohm / 75 Ohm
Connector type input/output: F socket / F socket
DC passing IN-OUT: yes, +12 V (path without capacitor)
Max. DC current passing IN-OUT: 250 mA
----------
FEATURES
----------
Splitter/combiner RTV
DC passing: +12 V/250 mA
Solid, die-cast, metal housing

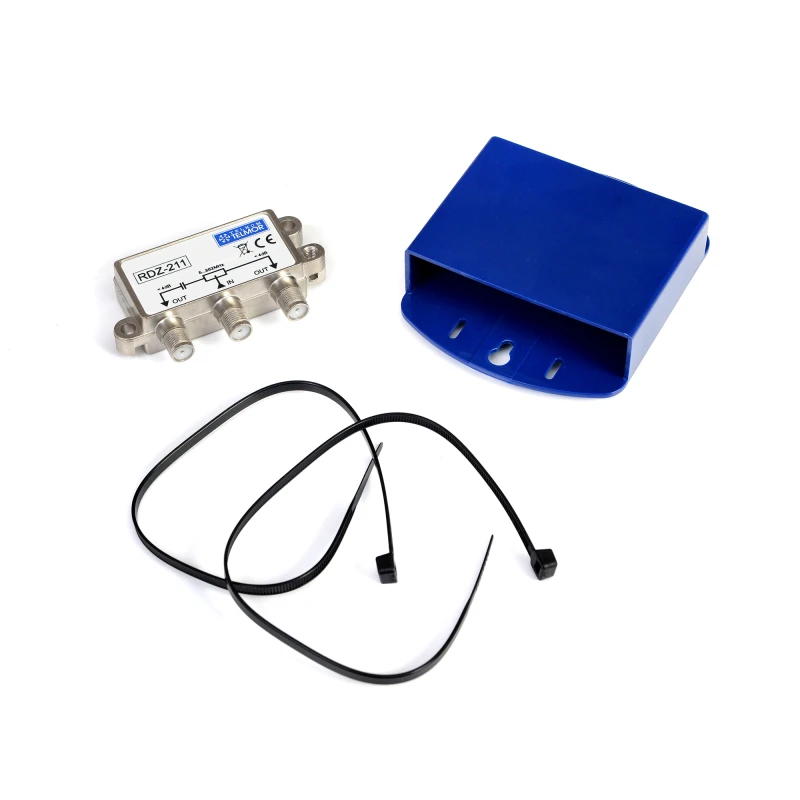

Splash-proof ABS housing included
Easy installation and connection

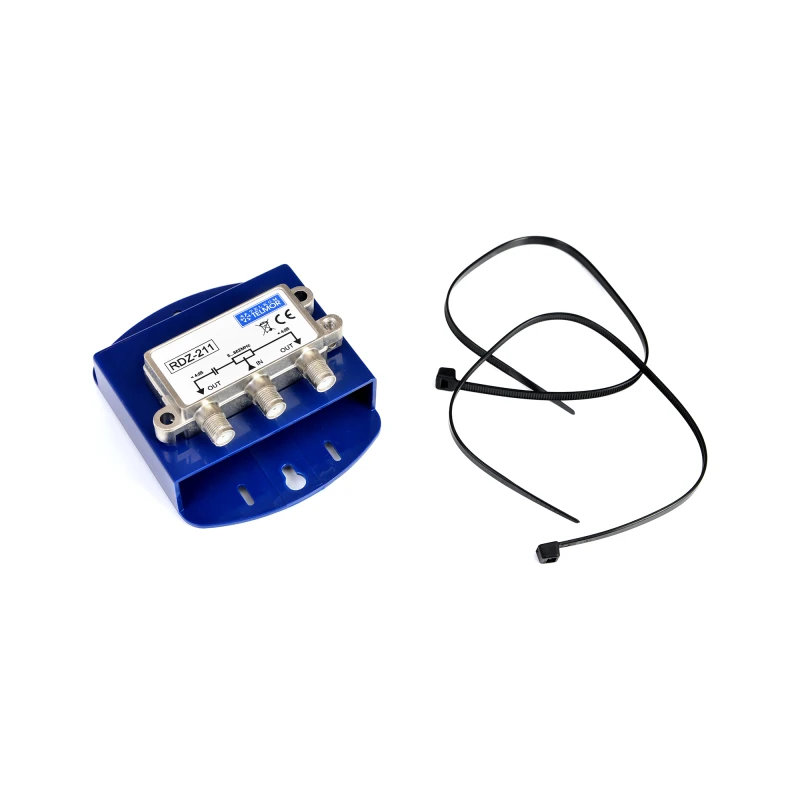

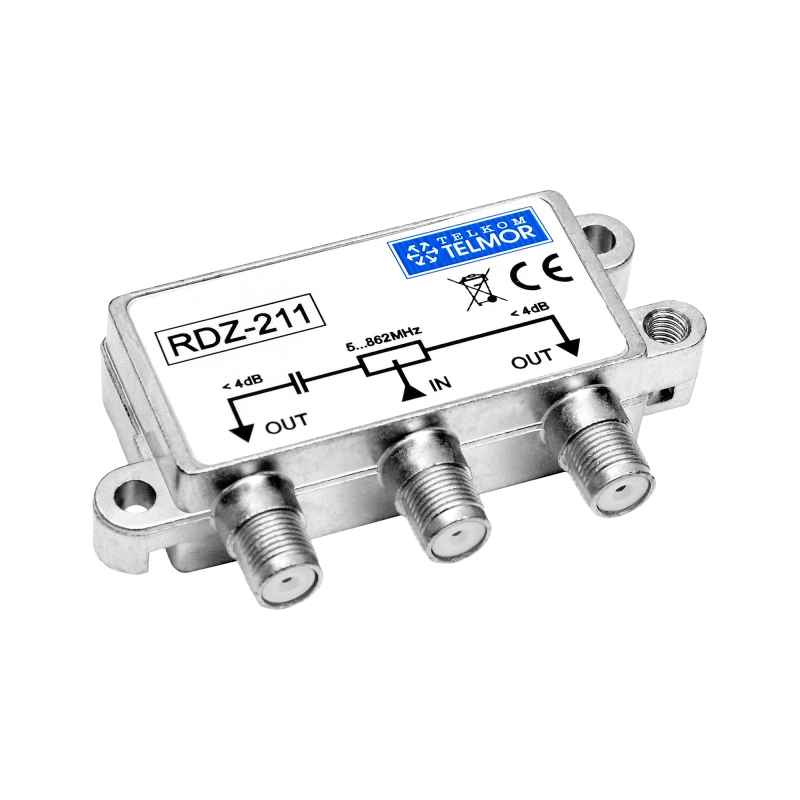

RDZ-211 is a splitter/combiner designed for use in collective and individual RTV antenna installations. Its purpose is to split or combine 2 antenna signals. The RDZ-211 can be mounted in a splash-proof ABS housing, making it possible to place it outside the room, e.g. on an antenna mast. To ensure proper operation of the equipment, special attention should be paid to its proper installation and connection. The device can be used in situations where the signal level is high enough that its division, and thus a reduction in level by 4dB, will not cause the final level in the subscriber socket to be below 51dBuV (minimum based on the PN-EN 60728-1 standard).
The device is especially recommended for cases where it is not possible to implement a "star" type installation with cables from all sockets to one apartment box, i.e. for the case where antenna cables are necessarily laid directly "on the facade of the building".
TECHNICAL PARAMETERS
----------
Type: RDZ-211
Operating frequency range: 5-862 MHz
Max. Insertion loss IN-OUT / IN-OUT: 4.0 dB / 4.0 dB
Impedance input/output: 75 Ohm / 75 Ohm
Connector type input/output: F socket / F socket
DC passing IN-OUT: yes, +12 V (path without capacitor)
Max. DC current passing IN-OUT: 250 mA
----------
FEATURES
----------
Splitter/combiner RTV
DC passing: +12 V/250 mA
Solid, die-cast, metal housing
Splash-proof ABS housing included
Easy installation and connection
RDZ-211 is a splitter/combiner designed for use in collective and individual RTV antenna installations. Its purpose is to split or combine 2 antenna signals. The RDZ-211 can be mounted in a splash-proof ABS housing, making it possible to place it outside the room, e.g. on an antenna mast. To ensure proper operation of the equipment, special attention should be paid to its proper installation and connection. The device can be used in situations where the signal level is high enough that its division, and thus a reduction in level by 4dB, will not cause the final level in the subscriber socket to be below 51dBuV (minimum based on the PN-EN 60728-1 standard).
The device is especially recommended for cases where it is not possible to implement a "star" type installation with cables from all sockets to one apartment box, i.e. for the case where antenna cables are necessarily laid directly "on the facade of the building".
