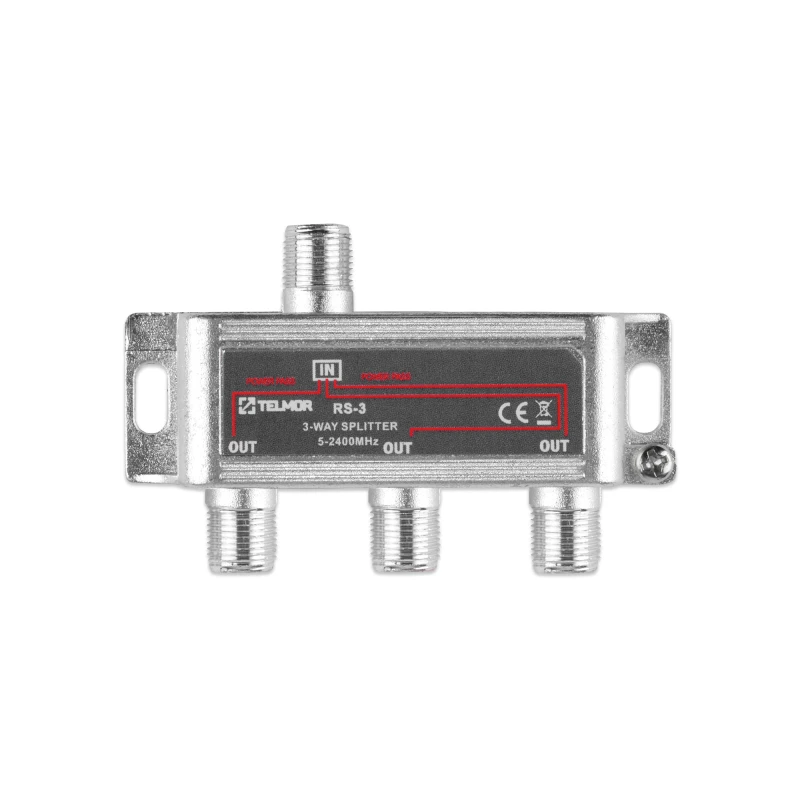

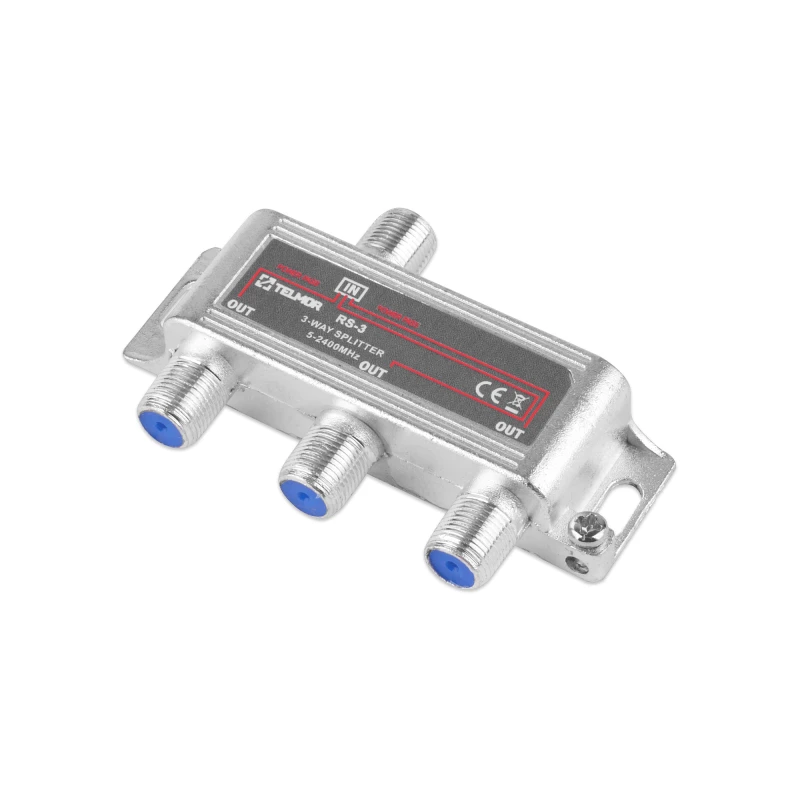

RS-3 SPLITTER 3BX 2.4G DC TELMOR

----------
Features
----------
- RS is a new line of splitters designed for TV and SAT installations. Unlike a classic TV splitter, the RS series has a frequency range that includes SAT signals (950-2150MHz) as well as WideBand SAT (250-2400MHz).
- In addition, these splitters are perfect wherever it is necessary to transfer voltage through a coaxial cable, e.g. to power a SAT LNB, a terrestrial antenna with a preamplifier, or to power a mast amplifier. Power is transferred from the outputs to the input; voltage is not transferred between the outputs.
- Housing: high-quality die-cast housing.
- Covered with a copper and zinc alloy
- F female connectors
- Ideal for DVB-T2, DVB-S2/S2X
- Frequency range 5-2400 MHz
- EMI - RFl>-120dB
----------
Technical data
----------
Attenuation max. (IN-OUT)
- 5-40MHz: 6.5 dB
- 41-470MHz: 7.6 dB
- 470-1350MHz: 8.5 dB
- 1350-2000MHz: 10 dB
- 2000-2400MHz: 11 dB
Isolation (OUT-OUT) min.
- 5-40MHz: 18 dB
- 41-470MHz: 21 dB
- 470-1350MHz: 21 dB
- 1350-2000MHz: 21 dB
- 2000-2400MHz: 20 dB
Return loss (IN/OUT) min.
- 5-40MHz: 10 dB
- 41-470MHz: 12 dB
- 470-1350MHz: 12 dB
- 1350-2000MHz: 12 dB
- 2000-2400MHz: 11 dB
Shielding: CLASS A
Impedance: 75 Ohm
