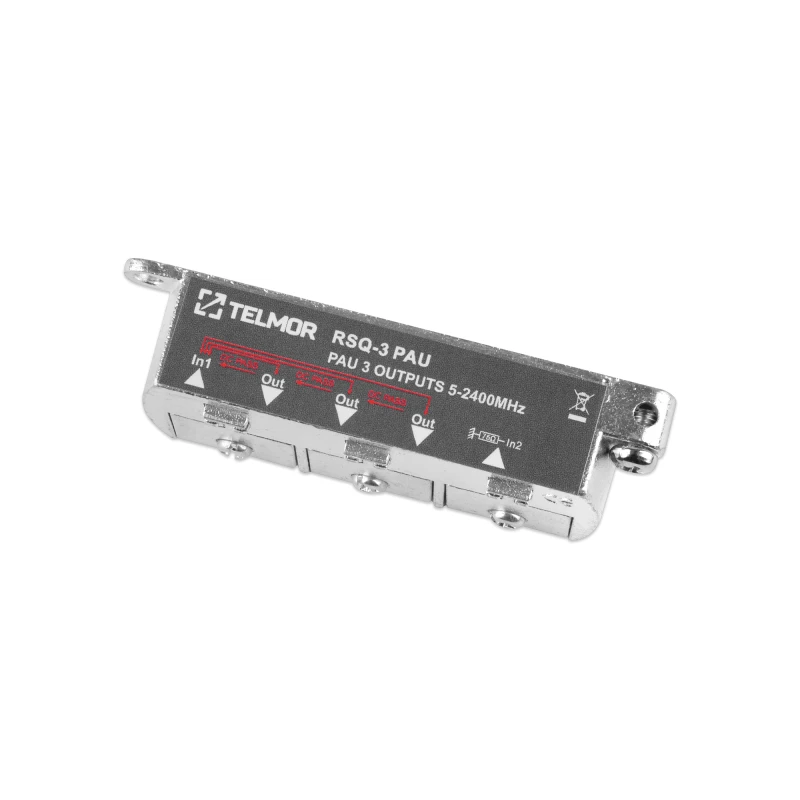

RSQ-3 PAU QUICK SPLITTER 3X 2.4G TELMOR

Features
- TELMOR series RS/RSQ and TS/TSQ indoor taps and splitters are used in coaxial SAT-IF distribution networks operating with DVB-S/S2 (QPSK, 8PSK) signals and/or with digital terrestrial television signals (COFDM, FM and DAB).
- All splitter outputs allow current flow to the input, and all taps allow current flow through the bus line, i.e. from output to input.
- High-quality die-cast iron housings covered with a copper-zinc alloy. The covers are soldered to ensure a high degree of shielding.
- Frequency range 5 - 2400 MHz.
- High-quality die-cast housing with copper-zinc alloy coating.
- F-type female connectors in the RS and TS series.

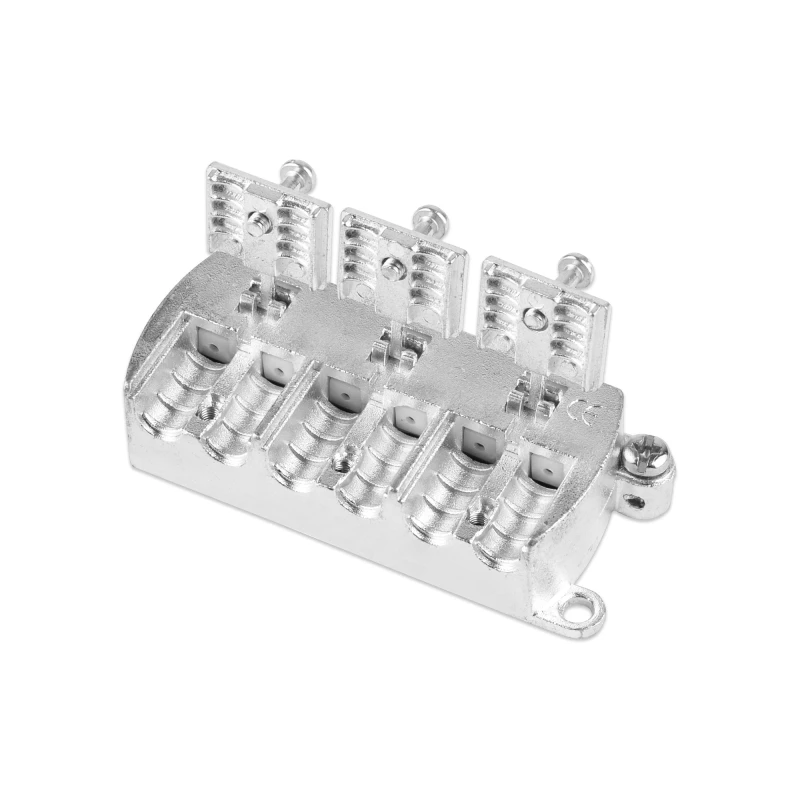

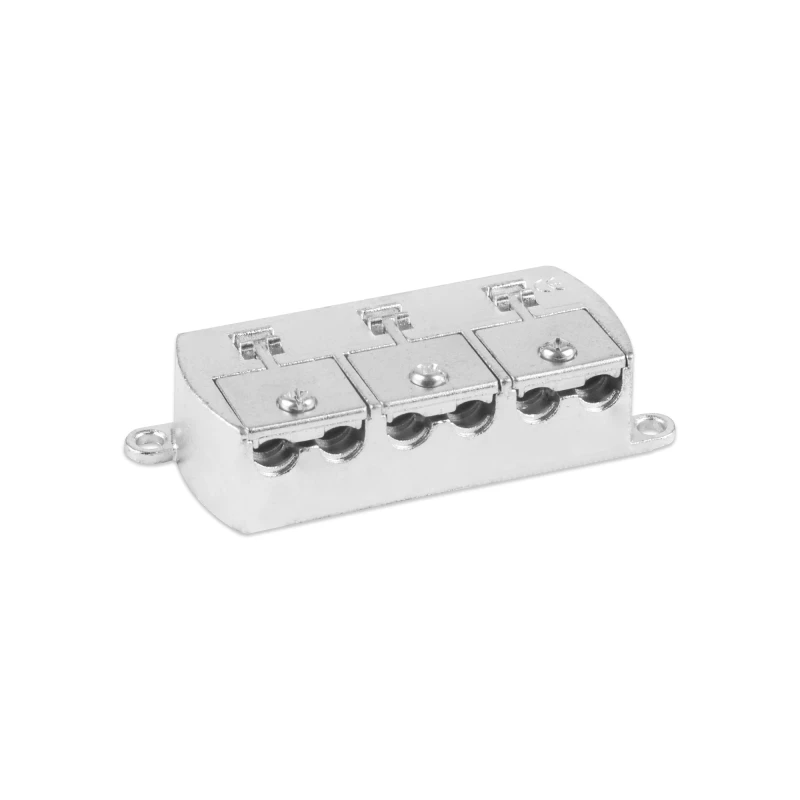

- Crimp connectors in the RSQ and TSQ series.
- Ideal for DVB-T/T2 and DVB-S2/S2X signals.
- Current transfer from outputs to input in splitters - max 500 mA.
- Current flow in the bus (output/input) in taps.
- EMI - RFl>-120dB.
- Class A
Technical data
Attenuation max. (IN -OUT)
- 5 - 40 MHz: 7.0 dB
- 41 - 470 MHz: 7.5 dB
- 470 - 1350 MHz: 9.5 dB
- 1350-2000 MHz: 10.5 dB
- 2000-2400 MHz: 11.2 dB
Isolation min. (OUT-OUT)
- 5 - 40 MHz: 22 dB
- 41 - 470 MHz: 22 dB
- 470 - 1350 MHz: 22 dB
- 1350-2000 MHz: 22 dB
- 2000-2400 MHz: 22 dB
Return loss min (IN / OUT)
- 5 - 40 MHz: 12.0 dB
- 41 - 470 MHz: 12.0 dB
- 470 - 1350 MHz: 12.0 dB
- 1350-2000 MHz: 12.0 dB
- 2000-2400 MHz: 12.0 dB
Voltage transfer: 24 V/500 mA
Impedance: 75 Ohm
