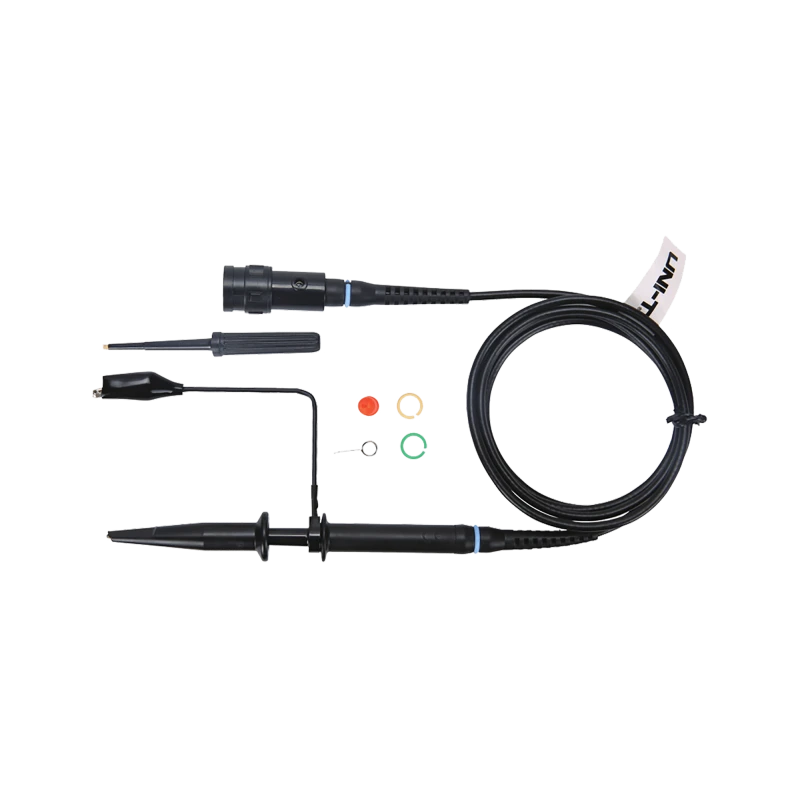

Oscilloscope probe 100MHz (BNC straight plug) Uni-T UT-P04

100MHz Oscilloscope Probe Uni-T UT-P04
The Uni-T UT-P04 oscilloscope probe is a professional accessory designed for precise measurements in the bandwidth range up to 100 MHz. Its robust construction and advanced technical parameters make it an ideal tool for working with oscilloscopes, enabling accurate analysis of electrical signals. Precise measurements in a wide range
The Uni-T UT-P04 offers a bandwidth from 0 to 100 MHz, which provides sufficient accuracy for most electronics applications. The probe is equipped with two attenuation ratios: 1:1 and 1:10, allowing you to adjust its parameters to different voltage levels and providing flexibility in measurements. The input impedance is 1 MOhm ±2% at 1:1 attenuation and 10 MOhm ±2% at 1:10 attenuation, ensuring high measurement precision. Safe and effective measurements
The probe supports working voltages up to 300 Vpp at 1:1 attenuation and 600 Vpp at 1:10 attenuation, ensuring safety and compatibility with various signal levels. The straight BNC connector guarantees a solid connection to the oscilloscope, eliminating the risk of loose connections and ensuring signal stability.
