Oscilloscope probe 200MHz (BNC right-angle connector) Uni-T UT-H05

200 MHz Oscilloscope Probe (Angled BNC Connector) Uni-T UT-H05
Uni-T UT-H05 is a high-quality oscilloscope probe, designed for precise signal measurements in a wide frequency range. Thanks to its robust construction and advanced technical parameters, the UT-H05 is ideally suited for use with oscilloscopes from the UTD1000 series. Bandwidth and Attenuation Ratio
The UT-H05 probe offers a bandwidth of up to 200 MHz, enabling accurate measurements of high-frequency signals. The device has two attenuation modes: 1:1 and 1:10, allowing you to adjust the measurement sensitivity to the user's needs. 1:1 attenuation is suitable for low voltage measurements, while the 1:10 mode allows you to work with higher voltages. Input Impedance and Working Voltage
The UT-H05 features an input impedance of 1 MOhm ±2% with 1:1 attenuation and 10 MOhm ±2% with 1:10 attenuation. The probe can operate with voltages up to 300 Vpp in 1:1 mode and up to 600 Vpp in 1:10 mode, allowing for safe and precise measurements in various conditions. Construction and Compatibility

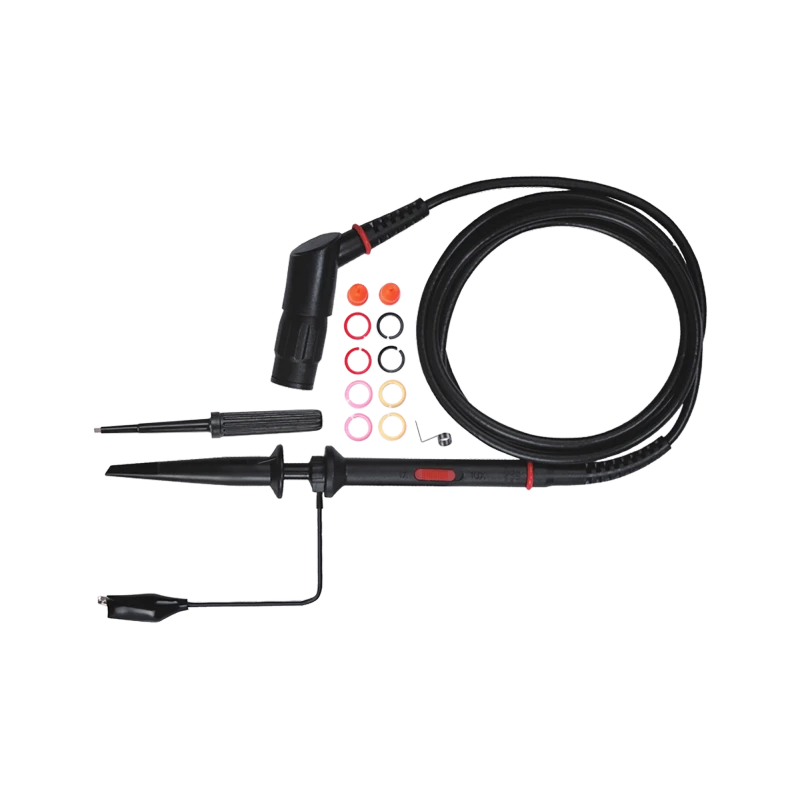

The probe is equipped with an angled BNC connector, which ensures ease of use and allows for easy connection to oscilloscopes. The UT-H05 is compatible with oscilloscopes from the UTD1000 series, making it an ideal choice for users of these models. The cable length is a standard 1.2 meters. The rise time is typically 1.75 ns. The compensation range is 10-35 pF. It also includes a ground clip and adjustment tool. The operating temperature range is -10°C to +50°C. The storage temperature range is -20°C to +75°C.
