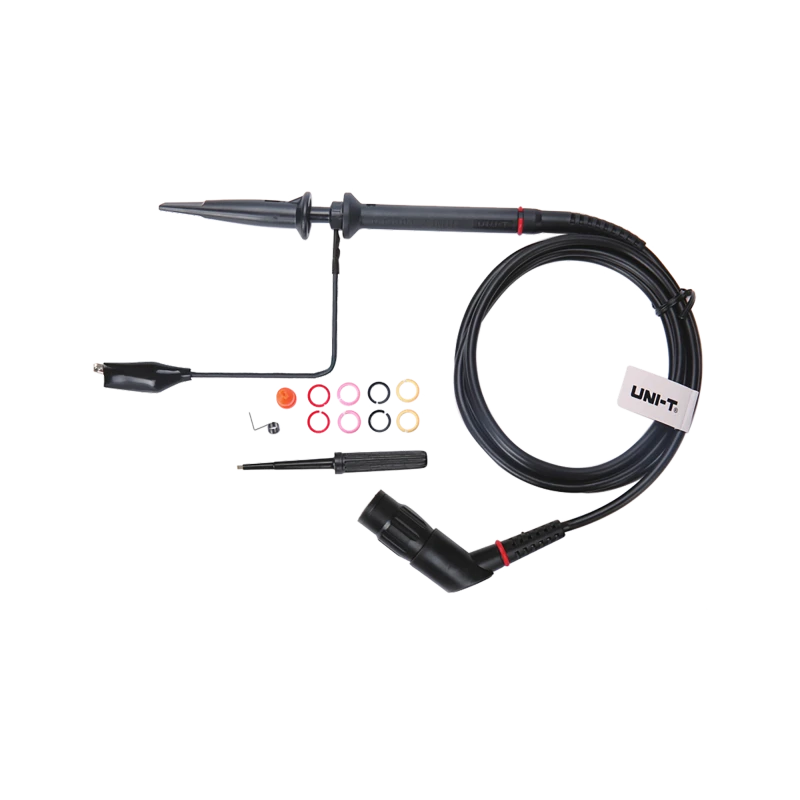

Oscilloscope probe 25MHz (BNC right-angle connector) Uni-T UT-H01

25 MHz Oscilloscope Probe Uni-T UT-H01 (angled BNC connector)
The Uni-T UT-H01 oscilloscope probe is a precise measuring tool that is perfect for diagnosing signals in oscilloscopes. Its solid construction and advanced parameters make it an ideal choice for professionals involved in the analysis and testing of electronic signals. Precise measurements and versatility
The UT-H01 probe offers a bandwidth of 25 MHz, which ensures accurate reproduction of signals within this range. Thanks to two attenuation ratios of 1:1 and 1:10, it is possible to adjust the measurement range to suit various application needs. The input impedance is 1 MΩ at 1:1 attenuation and 10 MΩ at 1:10 attenuation, ensuring compatibility with a wide range of oscilloscopes. High voltage resistance
The probe is designed to operate with a maximum voltage of 300 Vpp at 1:1 attenuation and 600 Vpp at 1:10 attenuation. This voltage range allows for safe measurements in various test environments and provides great flexibility in signal analysis. Practical design
The Uni-T UT-H01 is equipped with an angled BNC connector, which facilitates connection in areas with limited space and allows for more convenient probe positioning. It is compatible with oscilloscopes from the UTD1025CL and UTD1025C series, making it an ideal accessory for these models.
