SKU:WTY0659

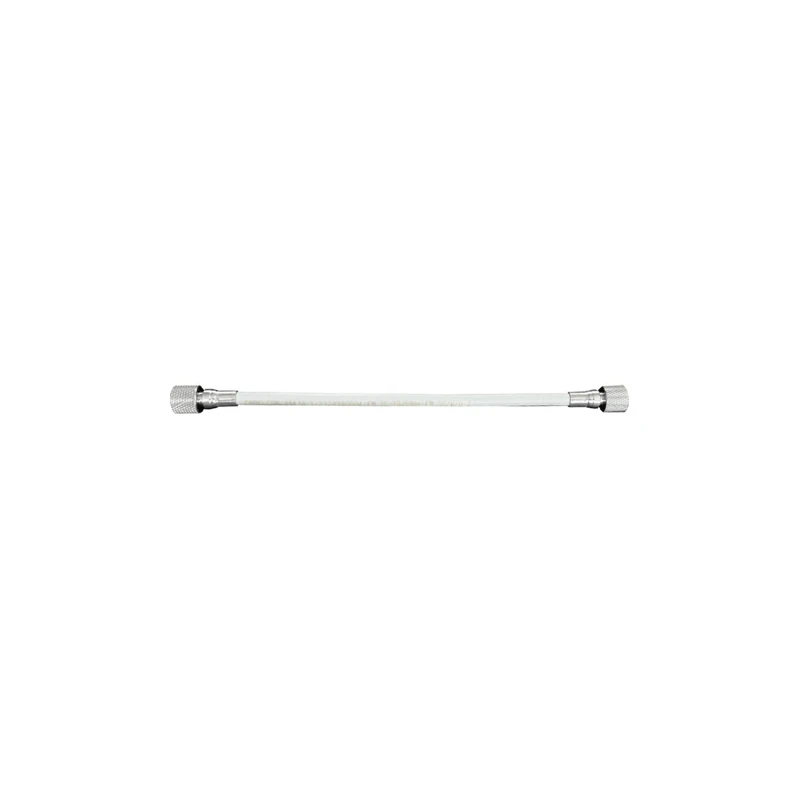

Image is for illustrative purposes only
Features ----------
- Cabelcon is a company known for producing professional RF connections for all types of applications and a wide range of frequencies.
- The SC-TDJ59A+ is a 20cm RF patch cord with an impedance of 75 Ohm terminated with spring-loaded quick connectors. This prepared connection allows for quick installation, ensuring ease of use even in places with difficult access. This patch cord features a high A++ shielding class and a high level of attenuation of mismatched signals. The use of RG59 cable facilitates installation even when it is necessary to bend it at a large angle.
- We recommend this solution for cascade installations in multiswitch backbones.
- Professional RF connection - Length 20cm - High matching across the entire bandwidth
- Shielding class A++ - Ideal for connecting cascade multiswitches
- Spring-loaded quick connectors - Flexible RG59 cable - Shortens the device connection process to simply pressing the connectors onto the sockets
---------- Technical data ----------
Operating frequency range: 0.3-3000 MHz Insertion loss (typ) dB
- 0.3-3000 MHz: <1
Mismatch attenuation (typ) dB
- 1 GHz: <-23 dB
- 2 GHz: <-22 dB
- 3 GHz: < -22 dB
Shielding: < - 130 dBc Impedance: 75 Ohm
Features
- Cabelcon is a company known for producing professional RF connections for all types of applications and a wide range of frequencies.
- SC-TDJ59A+ is a 20cm RF patch cord with 75 Ohm impedance terminated with spring-loaded quick connectors. This prepared connection allows for quick installation, ensuring ease of use even in places with difficult access. This patch cord is characterized by a high shielding class A++ and a high level of attenuation of mismatched signals. The use of RG59 cable facilitates installation even when it is necessary to bend it at a large angle.
- We recommend the solution for cascade installations in multiswitch backbones.
- Professional RF connection
- Length 20cm
- High matching throughout the bandwidth
- Shielding class A++
- Ideal for connecting cascade multiswitches
- Spring-loaded quick connectors
- Flexible RG59 cable
- Shortens the process of connecting devices only to pressing the connectors onto the sockets
Technical data
Operating frequency range: 0.3-3000 MHz
Insertion loss (typ) dB
- 0.3-3000 MHz: <1
Return loss (typ) dB
- 1 GHz: <-23 dB
- 2 GHz: <-22 dB
- 3 GHz: < -22 dB
Shielding: < - 130 dBc
Impedance: 75 Ohm
