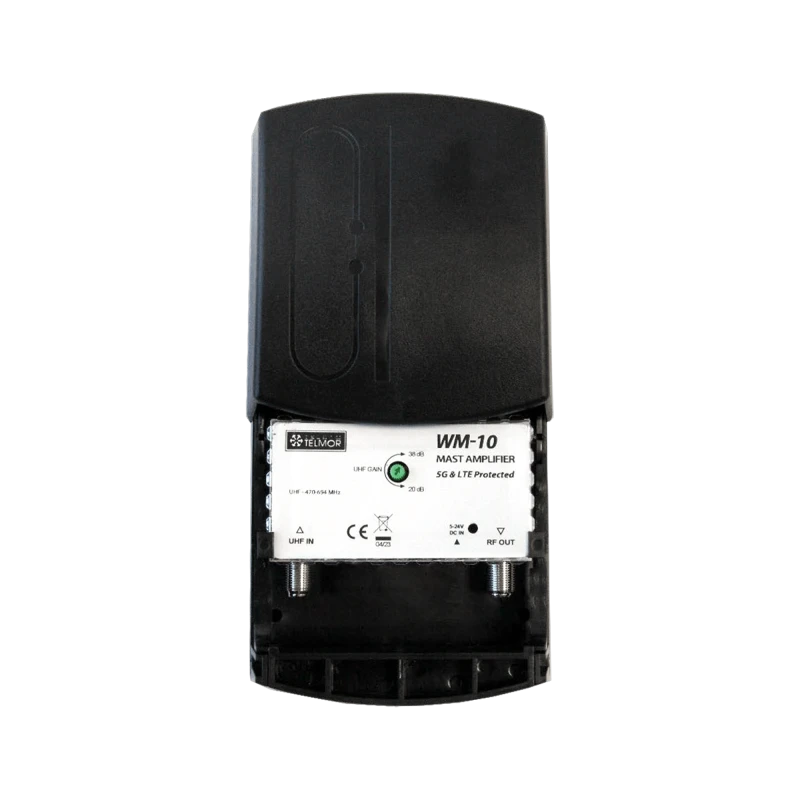

Mast amplifier WM-10 UHF DVB-T2 5G PROTECTED Telkom Telmor

Features
Mast amplifiers dedicated for working with digital terrestrial TV signals – DVB-T2
Dedicated inputs for bands (depending on the version)
5G Protected technology
Independent gain control for input signals
Remote powered via output (OUT)
Possibility of outdoor installation – splash-proof housing with mast clamp included
----------
Technical data
----------
Operating band: UHF
Number of inputs: 1
Operating frequency range: 470-694 MHz
Gain: 38 dB
Gain control in UHF: -20 dB
Maximum output signal level: 96 dBuV
Power supply: 5-24 V DC
Input/output impedance: 75 Ohm / 75 Ohm
Input/output connector type: F socket / F socket
Dimensions: 108x125x45 mm
Net weight with mast housing: 0.2 kg
The new series of WM 10/20/30 amplifiers will allow you to connect terrestrial antenna(s) and amplify the signals coming from them. The amplification is carried out in the range of up to 38dB (depending on the band and type) and is regulated by potentiometers.
Such an amplified signal is ideal for further distribution in a building such as a single-family house or a small multi-family building. It will also be perfect if we want to transmit the signal from a terrestrial antenna over a longer distance via a coaxial cable.
WM – 10 – one input for the UHF band in the range from 470-694MHz, gain 20..38dB
The set includes a splash-proof housing and a clamp for mounting the device on a mast.
To power the device, use a power inserter with an amplifier such as TT-PS SAT, which allows it to be connected to a coaxial cable inside the building.
