Antenna power supply for ZZA-7 Telmor antennas

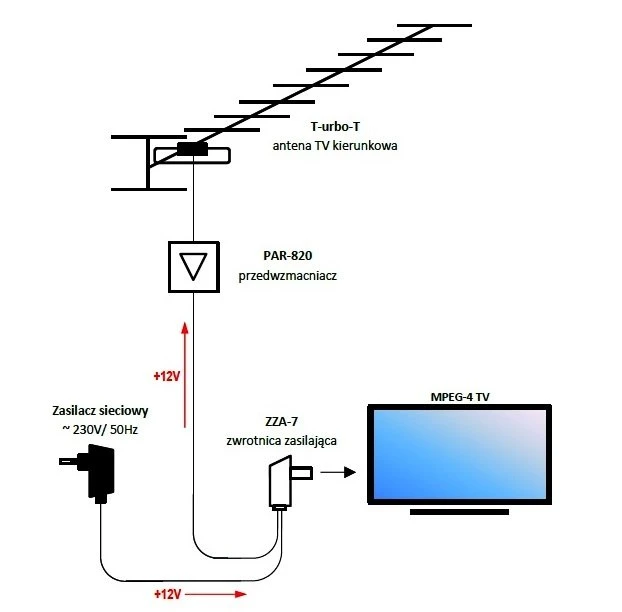

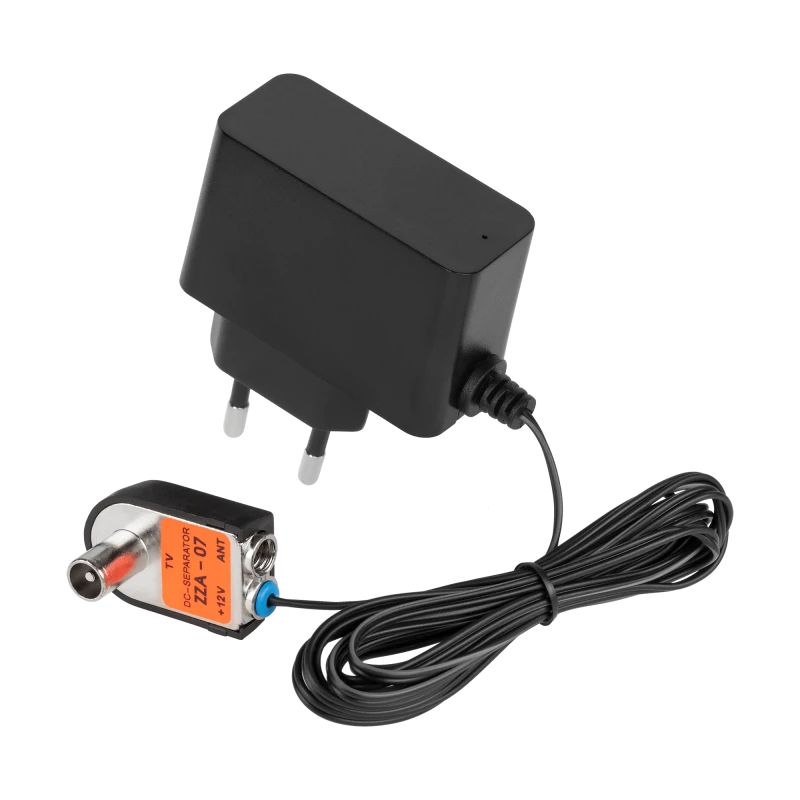

Universal Antenna Power Supply ZZA-7 Telmor The ZZA-7 is an advanced antenna power supply with a splitter (separator), which is ideal for remote DC power supply of antenna preamplifiers or subscriber microamplifiers. This power supply enables DC power supply via a coaxial cable, transmitting the signal from the TV antenna to the TV receiver. Features: - Operating frequency range of 47.5-862 MHz, which ensures versatility in use. - Low insertion loss below 1.0 dB to ensure high signal quality. - Mains power supply integrated with the splitter, which allows for easy connection and installation. - Operation signaling with an LED, so you always know if the power supply is working correctly. Technical data: - Operating frequency range: (FM/ VHF, UHF) 47.5-862 MHz - Insertion loss: <1.0 dB - Isolation (RF path / power path): >20 dB - Input / output impedance: 75 / 75 Ohm - Power supply: ~230 V / 50 Hz - Power supply output voltage: +12 V - Maximum power supply load current: 100 mA - Power supply integrated with the splitter: yes - Net weight: 0.1 kg with power supply - Packaging: blister Provide excellent power for your antenna preamplifier or subscriber microamplifier with the universal antenna power supply ZZA-7 Telmor. Reliable operation, easy installation and high signal quality - that's all you need. Order now and enjoy trouble-free TV reception. Product code: URZ3350 Antenna power supply for antennas ZZA-7 Telmor Features Operating frequency range 47.5-862 MHz Insertion loss below 1.0 dB Mains power supply integrated with the splitter Operation signaling – LED Easy installation and connection Technical data Operating frequency range: (FM/ VHF, UHF) 47.5-862 MHz Insertion loss: <1.0 dB Isolation (RF path / power path): >20 dB Input / output impedance: 75 / 75 Ohm Power supply: ~230 V / 50 Hz Power supply output voltage: +12 V Maximum power supply load current: 100 mA Power supply integrated with the splitter: yes Net weight: 0.1 kg with power supply Packaging: blister
