OPTICUM UNICABLE SCR/2LEGACY ROBUST 24UB Converter
SKU:URZ0634

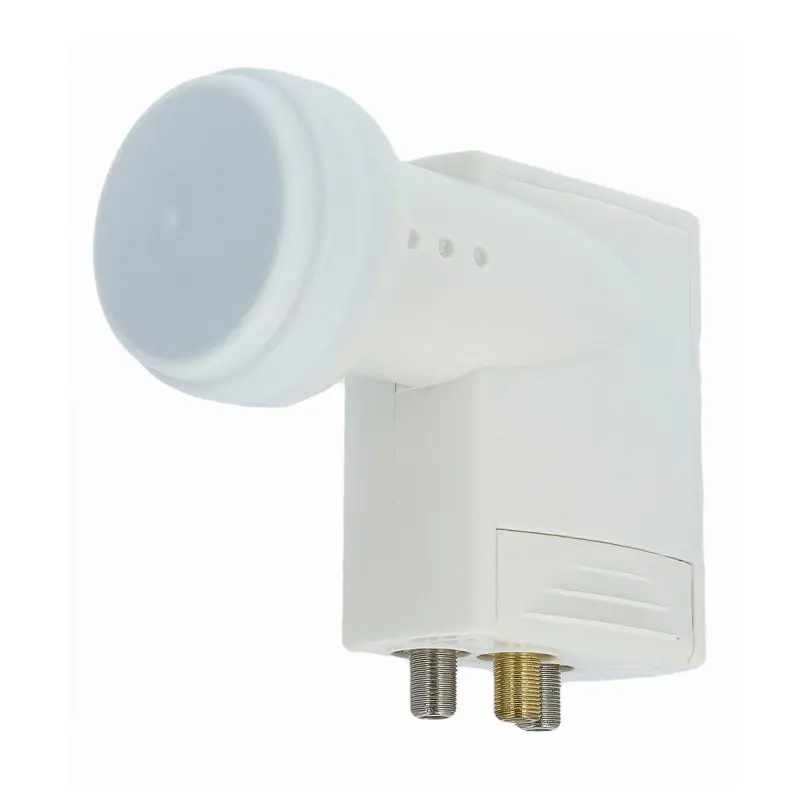

Image is for illustrative purposes only
SCR (unicable) converter designed for receiving satellite television programs.
One SCR converter output and one cable provide a signal for 24 digital receivers.
The receivers operate independently.
Two full band converter outputs in silver allow for the connection of two traditional digital receivers.
Technical parameters:
Input frequency range: 10.70-11.70 GHz/11.70-12.75 GHz
Output frequency range: 950-1950 MHz/1100-2150 MHz
Upper input frequency range: 11.7-12.75 GHz
Upper oscillator frequency: 10.4/9.75/10.6 GHz
SCR channel outputs: 24
Full Band signal outputs: 2
Gain: above 57 dB
Number of full band outputs: 2
Noise figure: 0.1 dB
Current consumption: 300 mA
Grip diameter: 40 mm
Operating temperature: -40°C + 65°C
One SCR converter output and one cable provide a signal for 24 digital receivers.
The receivers operate independently.
Two full band converter outputs in silver allow for the connection of two traditional digital receivers.
Technical parameters:
Input frequency range: 10.70-11.70 GHz/11.70-12.75 GHz
Output frequency range: 950-1950 MHz/1100-2150 MHz
Upper input frequency range: 11.7-12.75 GHz
Upper oscillator frequency: 10.4/9.75/10.6 GHz
SCR channel outputs: 24
Full Band signal outputs: 2
Gain: above 57 dB
Number of full band outputs: 2
Noise figure: 0.1 dB
Current consumption: 300 mA
Grip diameter: 40 mm
Operating temperature: -40°C + 65°C
SCR (unicable) converter designed for receiving satellite television programs.
One SCR converter output and one cable provide signal for 24 digital receivers.
Receivers operate independently.
Two full band converter outputs in silver color allow connecting two traditional digital receivers.
Technical parameters:
Input frequency range: 10.70-11.70 GHz/11.70-12.75 GHz
Output frequency range: 950-1950 MHz/1100-2150 MHz
Upper input frequency range: 11.7-12.75 GHz
Upper oscillator frequency: 10.4/9.75/10.6 GHz
SCR channel outputs: 24
Full Band signal outputs: 2
Gain: above 57 dB
Number of full band outputs: 2
Noise figure: 0.1 dB
Current consumption: 300 mA
Handle diameter: 40 mm
Operating temperature: - 40°C + 65°C
One SCR converter output and one cable provide signal for 24 digital receivers.
Receivers operate independently.
Two full band converter outputs in silver color allow connecting two traditional digital receivers.
Technical parameters:
Input frequency range: 10.70-11.70 GHz/11.70-12.75 GHz
Output frequency range: 950-1950 MHz/1100-2150 MHz
Upper input frequency range: 11.7-12.75 GHz
Upper oscillator frequency: 10.4/9.75/10.6 GHz
SCR channel outputs: 24
Full Band signal outputs: 2
Gain: above 57 dB
Number of full band outputs: 2
Noise figure: 0.1 dB
Current consumption: 300 mA
Handle diameter: 40 mm
Operating temperature: - 40°C + 65°C
