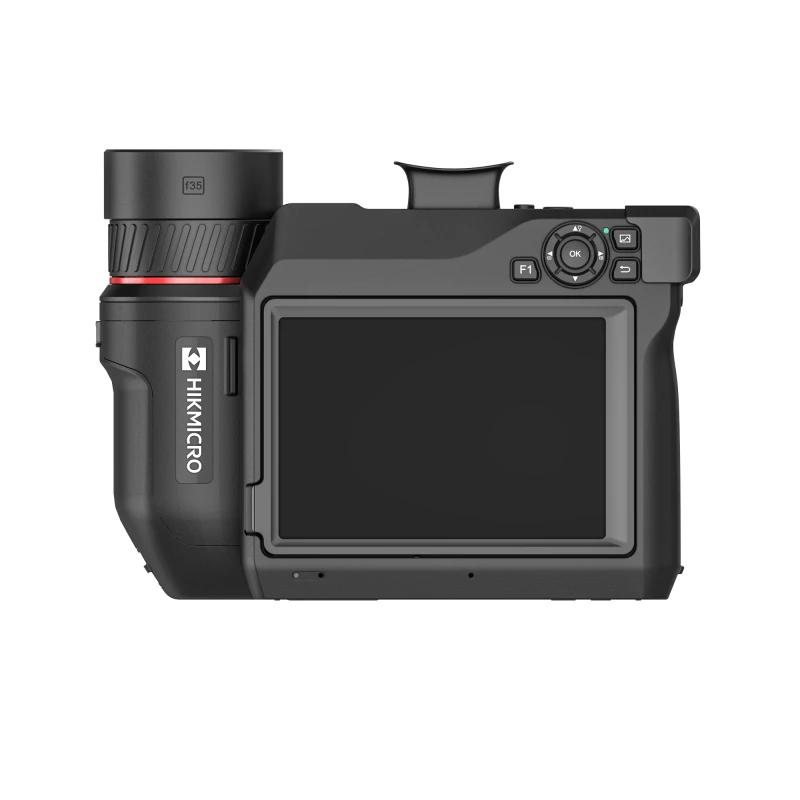

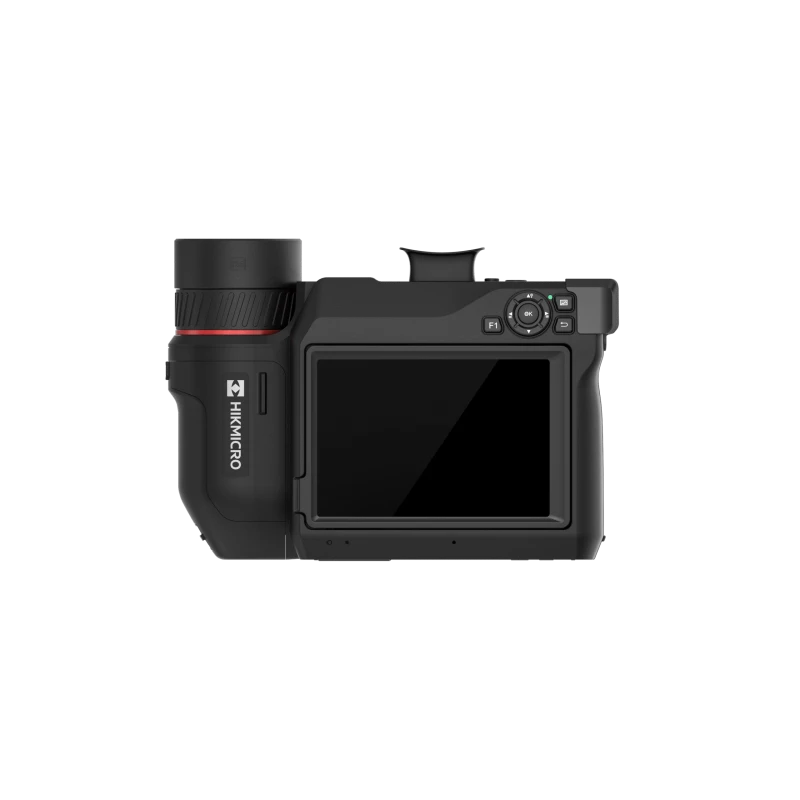

Termokaamera SP120H-L25
SKU:HM-TP9CH-W/W-SP120H-L25
Image is for illustrative purposes only
SP SERIES: Ultra-high performance and maximum flexibility
SuperIR: Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.

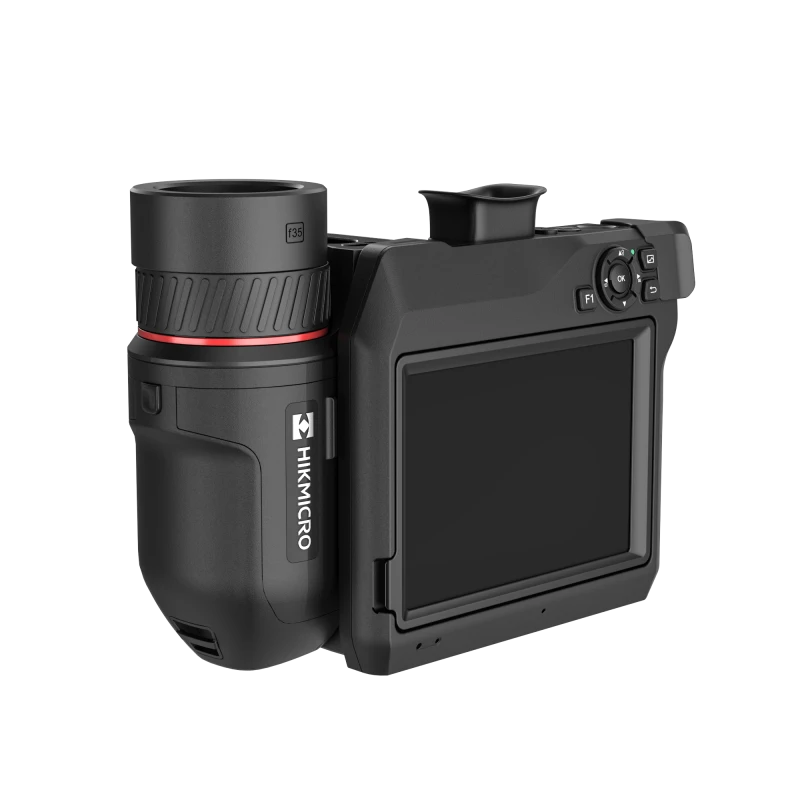

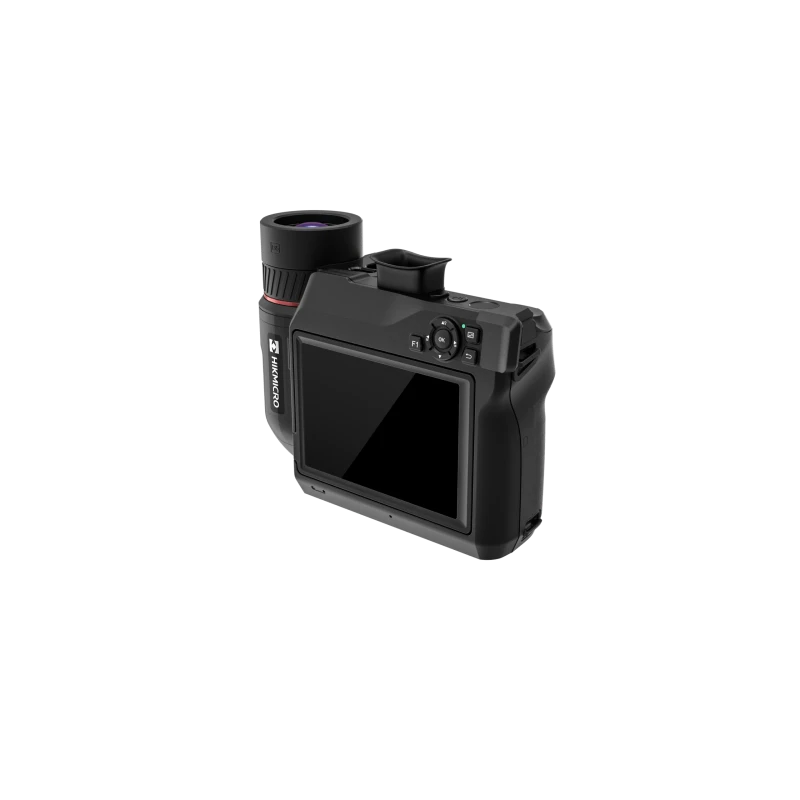

Flexible Rotating Lens and Screen: The 90° rotating screen and the 180° rotating lens design help to easily view the area around, between, above, or below the target. Keeping a safe distance allows for equally flexible inspections.
Designed for Outdoor: Water and dust resistant to IP54 standards and drop tested to a height of 1 m.
1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen.
Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)
1-Tap Level & Span: Supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems.
Up to 2200°C Temperature Range: With a measurement range of up to 2200°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*SP40H/SP60H/SP120H Only)
High-Precision Detection: By integrating <20m NETD, 12 μm detector pitch, and 0.34 mrad IFOV, our High-Definition Thermal Detail technology delivers exceptional sensitivity and clarity, revealing more intricate thermal details. (*SP120H Only)
Interchangeable Battery System: Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation.
You can stay powered up for even the longest inspections.
Extensive Range of Interchangeable Lenses: Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.
Embedded Laser Distance Meter: An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes: Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.
Complete Image Annotations: Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.
Precise, Flexible, Stable Microscope Stand: Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (*SP40/SP40H/SP60/SP60H Only)
HIKMICRO Analyzer: HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
Conveniently Share Images and Reports: Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device.
Analyze, share images, and generate reports in real-time on-site.
SuperIR: Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.
Flexible Rotating Lens and Screen: The 90° rotating screen and the 180° rotating lens design help to easily view the area around, between, above, or below the target. Keeping a safe distance allows for equally flexible inspections.
Designed for Outdoor: Water and dust resistant to IP54 standards and drop tested to a height of 1 m.
1024 x 768 OLED electronic viewfinder and auto-brightness 1920 × 1080 resolution 5.1-inch OLED touchscreen.
Enables easy outdoor inspections in bright, challenging light and harsh conditions. (*SP120H only)
1-Tap Level & Span: Supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems.
Up to 2200°C Temperature Range: With a measurement range of up to 2200°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*SP40H/SP60H/SP120H Only)
High-Precision Detection: By integrating <20m NETD, 12 μm detector pitch, and 0.34 mrad IFOV, our High-Definition Thermal Detail technology delivers exceptional sensitivity and clarity, revealing more intricate thermal details. (*SP120H Only)
Interchangeable Battery System: Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation.
You can stay powered up for even the longest inspections.
Extensive Range of Interchangeable Lenses: Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.
Embedded Laser Distance Meter: An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.
5 Image Modes: Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.
Complete Image Annotations: Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.
Precise, Flexible, Stable Microscope Stand: Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (*SP40/SP40H/SP60/SP60H Only)
HIKMICRO Analyzer: HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
Conveniently Share Images and Reports: Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device.
Analyze, share images, and generate reports in real-time on-site.
Product Model: SP120H
IR Resolution: 1280 × 1024 (1,310,720 pixels)
NETD: ＜20 mK (@ 30 °C, F#=1.0)
Image Frequency: 30 Hz
Detector Pitch: 12 μm
Spectral Range: 7.5 to 14 μm
Focal Length: L8: 112.2 mm; L12: 72.9 mm; L25: 35 mm; L50: 17.6 mm
F-number: L8: F1.3; L12: F1.2; L25: F1.1; L50: F1.1
Field of View (FOV): L8: 7.9° × 6.3°; L12: 12° × 9.6°; L25: 25° × 20°; L50: 50° × 40°
Spatial Resolution (IFOV): L8: 0.11 mrad; L12: 0.17 mrad; L25: 0.34 mrad; L50: 0.68 mrad
Focus Mode: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
SuperIR: 2560 × 2048 (5,242,880 pixels)
Min. Focus Distance: L8: 5m (16.4 ft); L12: 1.65m (5.41 ft); L25: 0.3m (0.98 ft); L50: 0.2m (0.66 ft)
Visual Camera: 4208 × 3120 (13 MP）
Display: 1920 × 1080 Resolution, 5.1” OLED Touch Screen, Lv 360 Cd/m^2
Screen Brightness: Manual/Auto
Viewfinder: 1024 × 768 pixels OLED
Digital Zoom: 1.x to 12.x continuous
Image Modes: Thermal/Visual/Fusion/PIP/Blending
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Focus Mode Palette: Above/Below/Interval
Color Alarm: Above/Below/Interval/Insulation/Condensation
Object Temperature Range: Range -40~150℃（-40 ~ 302°F）
Range 100~650℃（212~1202°F）
Range 300~2200℃（572~3992°F）
Accuracy: Range -40~150℃（-40 ~ 302°F）:
-40~0℃（-40 ~ 32°F）: ±2℃ (±3.6°F)
0~100℃（32 ~ 212°F）: ±1℃
100~150℃（212 ~ 302°F）: ±1%
Range 100~650℃（212~1202°F）: ±2%
Range 300~2200℃（572~3992°F）: ±2%
Measurement Tools: Center Spot, Hot Spot, Cold Spot
User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles
Level and Span Mode: Auto/Manual/1-Tap Touch-Screen
Inspection Route: Yes
Storage Media: Removable 128 GB SD Card
Image Storage Capacity: Approx. 30,000 Images
Annotations: Voice note: max. 60 seconds;
Text note: max. 200 characters
Video Storage Capacity: Approx. 130 Hours（MP4 video）
Video File Format: MP4 video
and radiometric video
Image Format: Radiometric JPEG
Radiometric Infrared-Video Streaming (Compressed): Over UVC, Wi-Fi
Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth: Bluetooth 4.2
USB Interface: USB Type-C
HDMI Interface: HDMI-D
Laser Distance Meter: Indoor distance: 50 m (164 ft);
Outdoor distance: 15 m (49 ft).
GPS & Compass: Yes
Battery Type: Interchangeable and rechargeable Li-ion battery
Battery Operating Time: Approx. 4 hours
Battery Charging Time: Approx. 2.5 hours fully charged
Power Saving Mode: Yes
Programmable Buttons: 2
Protection Level: IP54, IEC 60529
Drop Test Height: 1 m (3.28 ft), IEC 60068-2-31
Safety: IEC 61010-1
EMC: EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN 61326-1
Vibration: 2 g, IEC 60068-2-6
Shock: 25 g, IEC 60068-2-27
Working Temperature Range: -20°C to 50°C ( -4°F to 122 °F)
Storage Temperature Range: -20°C to 60°C ( -4°F to 140°F)
Relative Humidity: ＜95% non-condensing
Weight: Approx. 1550 g (3.42 lb)（Without lens）
Dimension: 220.5 × 151.9 × 88.1 mm (8.68 × 5.98 × 3.47 in)（Without lens）
Tripod Mounting: UNC ¼”-20
Laser Pointer: Yes
Warranty: 3 years for the full product, 10 years for the detector, and 2 years for the battery.
Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
LED Light: Yes
