SKU:KMM-BT309

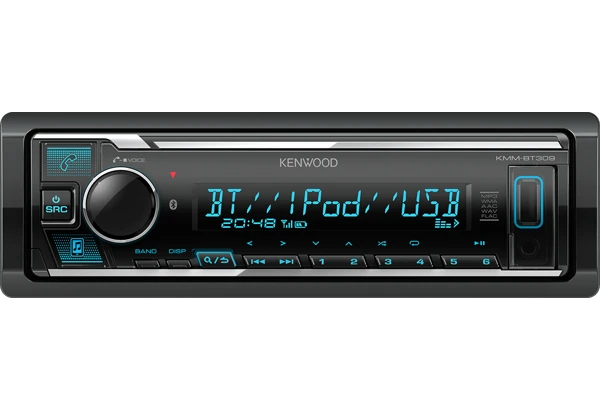

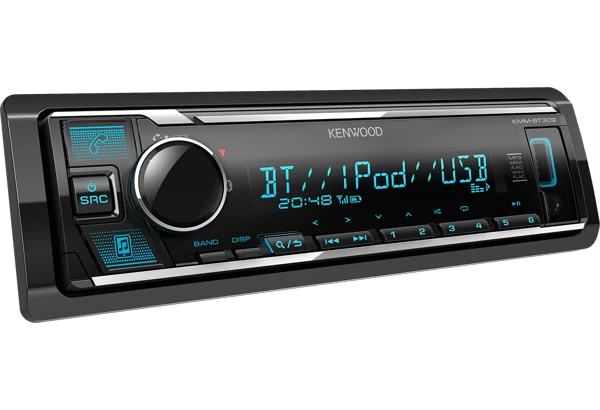

KENWOOD KMM-BT309 Digital Media Receiver, Dual Phone
Image is for illustrative purposes only
Enjoy convenient control with built-in Bluetooth technology for hands-free calls and music streaming. You can also use your smartphone as a wireless remote control with the KENWOOD Remote app, allowing you to change audio sources or adjust settings like Time Alignment and the 13-Band EQ.

Experience optimal sound tuning enhancements thanks to the Digital Sound Processor, Time Alignment, and 13-Band EQ. Stream high-quality music from up to 5 Bluetooth devices with Music Mix, or connect two phones full-time via Bluetooth for seamless call handling. The front USB and AUX inputs provide versatile connectivity for smartphones, tablets, and USB flash drives, with the USB port also offering smartphone quick charge.

This digital media receiver supports a broad range of audio file formats including MP3, WMA, AAC, WAV, and FLAC. Its short chassis design makes installation easier in a wider range of cars. Customize your car's interior with multicolor illumination, allowing you to match the bright variable color LEDs to your dash lighting. It also features a wide 1.5-line LCD display with high contrast and a variable-color backlight. For expanding your audio system, 3 high-power (2.5V) RCA preouts are included to connect multiple power amplifiers.
DIN Size: 1 DIN
Chassis Depth: 100mm
Weight: 600 gr.
Operating Voltage: 14.4V (10.5 ~ 16V Allowable)
Dimensions (WxHxD): 182 x 53 x 100mm
Detachable Faceplate: Yes
Display Type: LCD (2 line text + custom icons)
Display Illumination: Variable by RGB LED
Key Illumination: Variable LED
Maximum Output Power: 50W x 4
Output Power (DIN45324): 22 W x 4

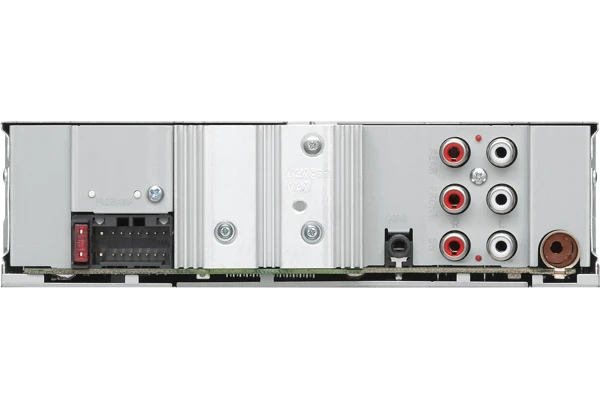

Pre-out: 3 RCA (Front/Rear/Subwoofer)
Pre-out Output Level: 2.5V
Graphic Equalizer: 13-Bands with 8 Presets
Digital Sound Processor (DSP): Built-in
Digital Time Alignment (DTA): Yes
High Pass Filter: Yes
Low Pass Filter: Yes
AUX Frequency Response: 20 Hz ~ 20 kHz (±1dB)
FM/AM Reception: Yes
Tuner Presets: 24 Presets (18FM / 6AM)
Radio Data System (RDS): Yes
USB Terminal: Front (with dust cover)
USB Type: 2.0 High speed
Maximum USB Supply Current: 1500mA
Smartphone Quick Charge: 1.5A
Bluetooth Technology: V4.2
Hands Free Profile (HFP): V1.7.1
Audio Streaming (A2DP): Yes (SBC/AAC)
Dual Phone Connection: Yes
KENWOOD Music Mix: Supports up to 5 A2DP devices
External Microphone: Included (Rear Wired)
USB Audio Formats: MP3, WMA, AAC, WAV, FLAC (up to 96kHz/24bit)
Front AUX Input: 3.5mm mini-jack
External Microphone Input: 3.5mm mini-jack
KMM-BT309_EU_DoC_2024-04-03_KENWOOD.pdf
Download
KMM-BT309_EU-DoC-2025-30-01_KENWOOD.pdf
Download
