SKU:KMM-BT209
KENWOOD Digital Media Receiver KMM-BT209, Dual Phone
Image is for illustrative purposes only

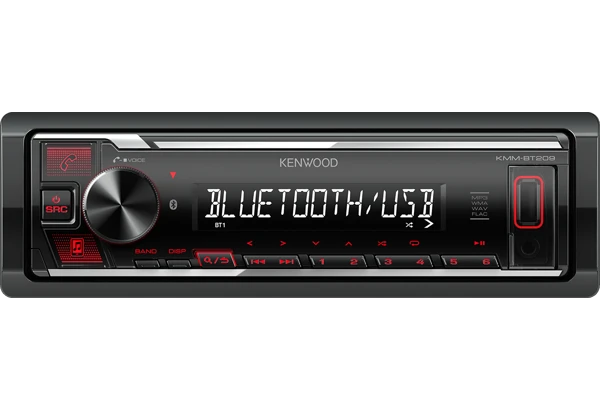

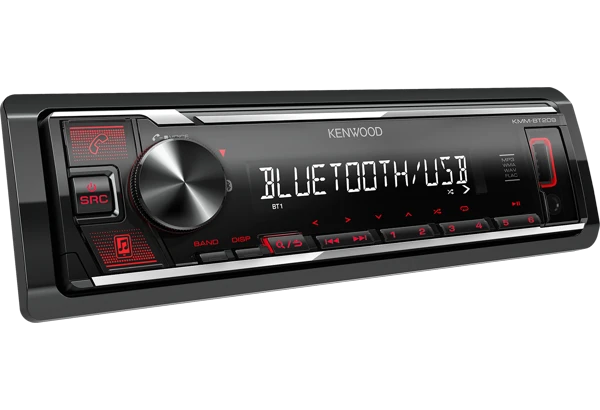

This KENWOOD Digital Media Receiver offers convenient control and enhanced audio. Enjoy hands-free phone calls and music streaming thanks to built-in Bluetooth technology, which also allows you to connect up to five devices with KENWOOD Music Mix for shared listening. Easily switch between two connected phones with Dual Phone Connection. You can even use your smartphone as a wireless remote control via the KENWOOD Remote app to adjust audio settings like Time Alignment or the 13-Band EQ.

For optimal sound tuning, the receiver features a Digital Sound Processor, Time Alignment, and a 13-Band Equalizer. Connect various portable audio devices using the front USB port, which also provides 1.5A smartphone quick charging, or the front AUX input. Its short chassis design simplifies installation in a wide range of vehicles, and it supports a broad range of audio file formats including MP3, WMA, AAC, WAV, and FLAC.
DIN Size: 1 DIN
Detachable Faceplate: Yes
Key Illumination: Red LED
Short Chassis Depth: 100mm
Display Type: Liquid Crystal Display (LCD)
Display Illumination: White (LED)
Tuner Presets (FM/AM): 24 Presets (18FM / 6AM)
USB Terminal: Front with dust cover
File System: FAT 32 / 16 / 12
Maximum USB Supply Current: 1500mA (1.5A Quick Charge)
USB D/A Converter: 24bit
Maximum Output Power: 50W x 4
Output Power (DIN45324): 22 W x 4
Auxiliary Input: Front Mini-jack
Pre-out: 1 RCA (Rear/Subwoofer Switchable)
Speaker Impedance: 4 Ohm ~ 8 Ohm
Graphic Equalizer: 13-Bands with 8 Presets
Digital Sound Processor (DSP): Built-in
Digital Time Alignment (DTA): Yes
Low- & High-pass Filter: Yes
Bluetooth Technology: V4.2
Hands Free Profile: HFP V1.7.1
2 Phones Full Time Connection: Yes
Audio Streaming (A2DP): Yes
Audio Codec (Bluetooth): SBC/AAC
Max Registered Phones (BT): 5 phones
External Microphone: Rear Wired (3m cable)
Playable Audio Formats (USB): MP3, WMA, AAC, WAV, FLAC (up to 96kHz/24bit)
Operating Voltage: 14.4V (10.5 ~ 16V Allowable)
Dimensions (WxHxD): 182 x 53 x 100mm
Weight: 600 gr.
KMM-BT209_EU_DoC_KENWOOD.pdf
Download
KMM-BT209_EU_DoC_2025-30-01_KENWOOD.pdf
Download
