SKU:KAC-M1814
Image is for illustrative purposes only

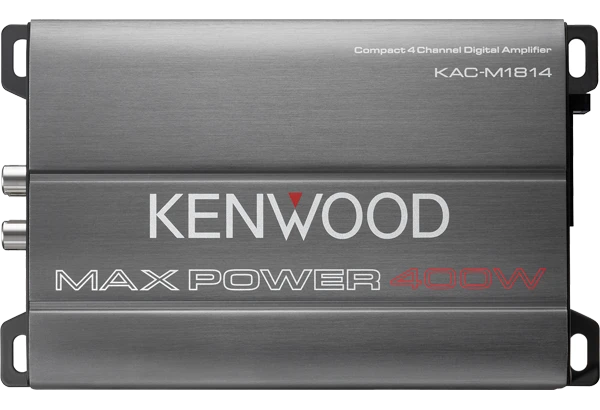

The KENWOOD KAC-M1814 is a compact 4-channel Class-D amplifier designed for multi-application use in cars, marine vessels, and motorsports. With 400W peak power, it delivers louder volume with low noise.
Its robust design includes plastic-covered connectors to protect against water and dust, while a conformal coating provides vibration resistance and prevents PCB rusting, ensuring durability in harsh environments.
Connectivity is versatile, offering RCA Line-In terminals or Speaker Level Input with Signal Sensing Turn-on, allowing connection to any type of receiver. It features A.ch and/or B.ch Filter Frequency Control and a Filter Switch to apply HPF / OFF / LPF. The amplifier also supports bridgeable connections, and its separated pre-amp and power-amp sections reduce radiation noise for cleaner sound.
Its robust design includes plastic-covered connectors to protect against water and dust, while a conformal coating provides vibration resistance and prevents PCB rusting, ensuring durability in harsh environments.
Connectivity is versatile, offering RCA Line-In terminals or Speaker Level Input with Signal Sensing Turn-on, allowing connection to any type of receiver. It features A.ch and/or B.ch Filter Frequency Control and a Filter Switch to apply HPF / OFF / LPF. The amplifier also supports bridgeable connections, and its separated pre-amp and power-amp sections reduce radiation noise for cleaner sound.
Amplifier Type: Class D, 4-channel
Maximum Output Power: 400W
Rated Power Output (CEA-2006): 45W RMS x 4 at 4 ohms, 1% THD
Rated Power Output (4Ω): 45W x 4
Load Capability: 4Ω Stable
CEA-2006 Compliant: Yes
Low-pass Filter: 50~200Hz (-12dB/oct)
High-pass Filter: 50~200Hz (12dB/oct)
Input Impedance: 10kΩ
Signal to Noise Ratio: 98dB
Signal to Noise Ratio (CEA-2006): 82dBa (Reference: 1 Watt into 4 Ohms)
Frequency Response (+0dB, -3dB): 20Hz ~ 20Hz
Operating Voltage: 14.4V (11V ～ 16V allowable)
Maximum Current Consumption: 15A
Line In: 4 RCA / Speaker level
Signal Sensing Turn-on: Yes
Power Supply: Switched Mode, Power MOS-FET
Heat Sink: Die-Cast Aluminium
DC Cable Supplied: Yes
Dimensions (WxHxD): 145 x 45 x 99 mm
Weight: 0.7 kg
Package Weight: 0.99 kg
Maximum Output Power: 400W
Rated Power Output (CEA-2006): 45W RMS x 4 at 4 ohms, 1% THD
Rated Power Output (4Ω): 45W x 4
Load Capability: 4Ω Stable
CEA-2006 Compliant: Yes
Low-pass Filter: 50~200Hz (-12dB/oct)
High-pass Filter: 50~200Hz (12dB/oct)
Input Impedance: 10kΩ
Signal to Noise Ratio: 98dB
Signal to Noise Ratio (CEA-2006): 82dBa (Reference: 1 Watt into 4 Ohms)
Frequency Response (+0dB, -3dB): 20Hz ~ 20Hz
Operating Voltage: 14.4V (11V ～ 16V allowable)
Maximum Current Consumption: 15A
Line In: 4 RCA / Speaker level
Signal Sensing Turn-on: Yes
Power Supply: Switched Mode, Power MOS-FET
Heat Sink: Die-Cast Aluminium
DC Cable Supplied: Yes
Dimensions (WxHxD): 145 x 45 x 99 mm
Weight: 0.7 kg
Package Weight: 0.99 kg
-
