SKU:DMX5020BTS

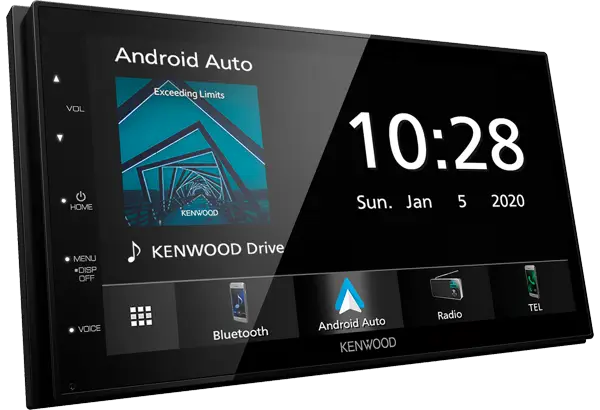

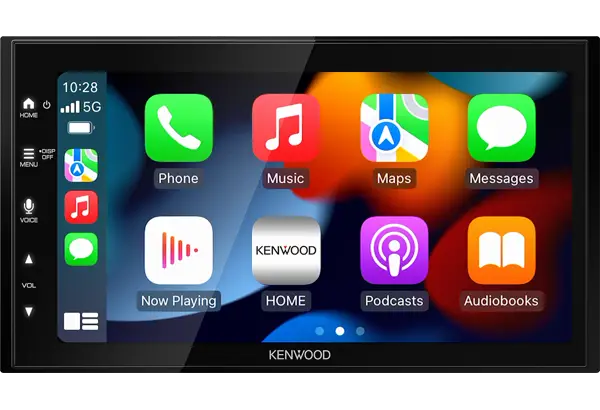

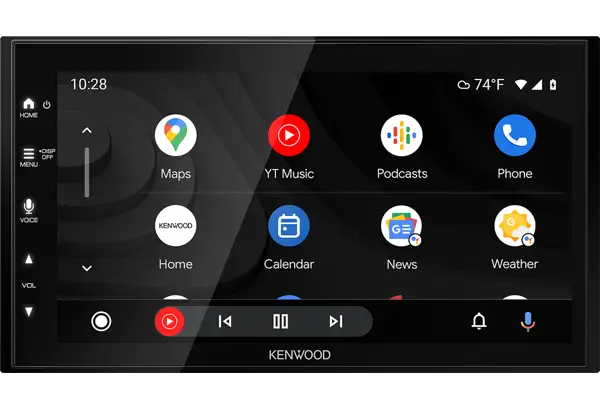

The KENWOOD Digital AV Receiver features a vibrant 6.8" WVGA Display, offering a clear interface for all your in-car entertainment and navigation needs. Seamlessly integrate your smartphone with wired Apple CarPlay® and Android Auto™ via USB, providing a smarter and safer way to use your phone's features on the road. For Android users, USB Screen Mirroring with 2-Way Touch Control allows you to display and manage your smartphone apps directly on the receiver's screen.
Experience optimal sound performance with the built-in 13 Band Graphic Equalizer and Time Alignment features, allowing you to tailor the audio to your unique preferences. This receiver also supports playback of various audio and video files compressed in multiple formats from USB devices. Enhance safety with a dedicated Rear View Camera Input, complete with adjustable Parking Guidelines to assist with backing up.
Its short chassis design simplifies installation in a wider range of vehicles, making it an ideal upgrade for limited spaces.
Experience optimal sound performance with the built-in 13 Band Graphic Equalizer and Time Alignment features, allowing you to tailor the audio to your unique preferences. This receiver also supports playback of various audio and video files compressed in multiple formats from USB devices. Enhance safety with a dedicated Rear View Camera Input, complete with adjustable Parking Guidelines to assist with backing up.
Its short chassis design simplifies installation in a wider range of vehicles, making it an ideal upgrade for limited spaces.
Screen Type: 6.8" Wide VGA Capacitive Touch
Display Resolution: 800(H) x 480(V) pixels
Backlighting: LED
Max. Output Power: 4 x 45W (MOSFET)
RMS Output Power (DIN45324): 4 x 21W (at 14.4V)
Pre-out: 2 RCA (Front/Rear) + Sub (mono)
Pre-out Output Level: 2V
Speaker Impedance: 4 Ohm ~ 8 Ohm
Equalizer: 13-Band Graphic EQ
Digital Sound Processor (DSP): Yes
Digital Time Alignment (DTA): Yes
Works with Apple CarPlay: Yes (Wired USB)
Works with Android Auto: Yes (Wired USB)
Android USB Mirroring: Yes (with 2-Way Touch Control)
Bluetooth Version: V4.1
Bluetooth Profiles: HFP V1.6, A2DP (SBC/AAC), AVRCP V1.5, PBAP
Max Registered Bluetooth Phones: 7
USB Terminal: Rear side, 1m cable
USB Type: 2.0 High Speed
USB File System: FAT 16/32, exFAT
USB Max Supply Current: 1500mA (1.5A Quick Charge)
USB Audio Decoders: MP3, WMA, AAC, WAV, FLAC
USB Video Decoders: MPEG1/2/4, WMV, H.264, mkv
AV Input: Mini-jack (Audio & Video)
Video Output: RCA x1
Rear View Camera Input: Dedicated RCA Video-in (with Parking Guidelines)
External Microphone Input: 3.5mm mini-jack
OEM Wired Remote Control Ready: Yes (Optional interface needed)
Tuner Presets (FM/AM): 15 FM / 15 AM
Radio Data System (RDS): Yes
Operating Voltage: 14.4V (10.5 ~ 16V Allowable)
Dimensions (WxHxD): 178 x 100 x 75mm
Weight: 1.1 kg
Included Accessories: Handsfree Microphone (3m cable), 2 Release Keys, Installation Sleeve
