SKU:PRO3EM
Image is for illustrative purposes only

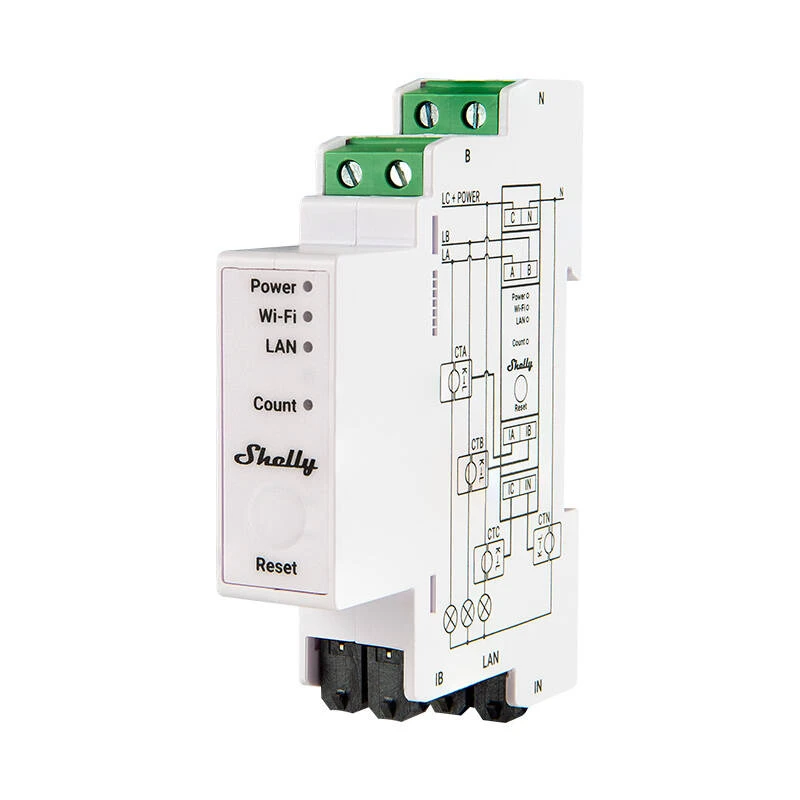

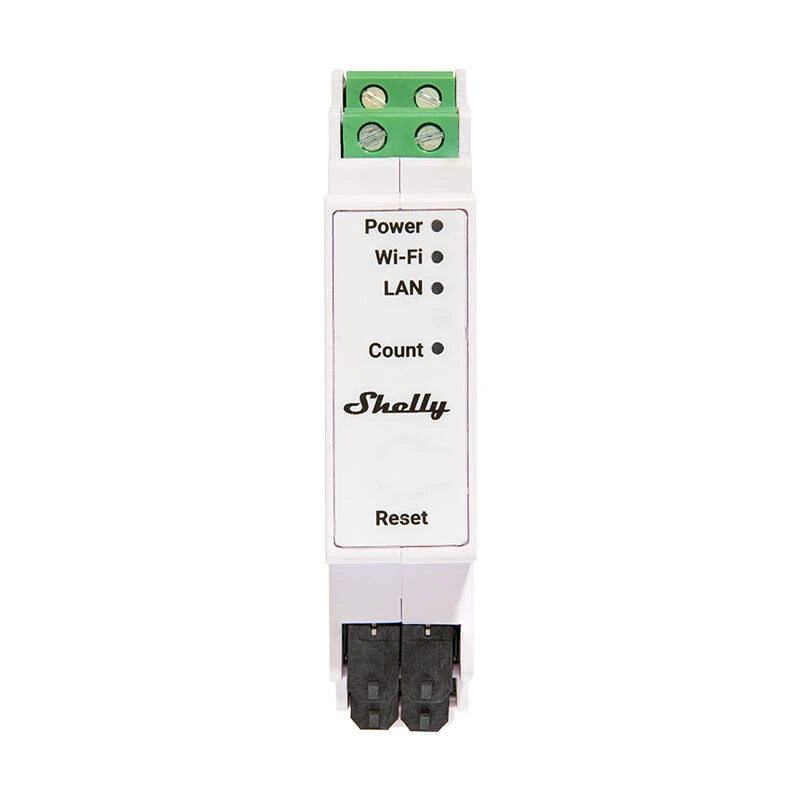

Shelly PRO 3EM 120A WiFi Three-Channel Electric Energy Meter
The Shelly Pro 3EM 120A is a professional three-phase electric energy meter that can be installed on a DIN rail. The device reports accumulated energy with 1% accuracy as well as real-time voltage, current, and power for each phase. It stores data for the last 60 days with a resolution of one minute for each phase, enabling precise analysis. It can operate independently on a local LAN and/or Wi-Fi network or be controlled via a home automation cloud service using MQTT, HTTP, and WebSocket protocols. Furthermore, it offers advanced scripting capabilities and extended monitoring options.
The Shelly Pro 3EM 120A is a professional three-phase electric energy meter that can be installed on a DIN rail. The device reports accumulated energy with 1% accuracy as well as real-time voltage, current, and power for each phase. It stores data for the last 60 days with a resolution of one minute for each phase, enabling precise analysis. It can operate independently on a local LAN and/or Wi-Fi network or be controlled via a home automation cloud service using MQTT, HTTP, and WebSocket protocols. Furthermore, it offers advanced scripting capabilities and extended monitoring options.
Manufacturer: Shelly
Model: SPEM-003CEBEU120
AC Power Supply Voltage: 100 - 260 V, 50/60 Hz
Power Consumption: < 3 W
Internal Temperature Sensor: Yes
Voltmeters (RMS for each phase): 100 - 260 V
Voltmeter Accuracy: ±1%
Ampermeters (RMS via current transformers for each phase and Neutral): 0 - 120 A
Compatible Current Transformer (CT): CT 120A
Ampermeter Accuracy: ±1% (2 - 120 A), ±2% (1 - 2 A), ±5% (0 - 1 A)
Active and Apparent Power and Energy Meters: Active and apparent power, active and apparent energy, power factor, active fundamental energy, and reactive fundamental energy
Channel Calibration at Minimum Load: 500 W per channel
No-Load Threshold: 30 VA per channel
Measurement Data Storage: At least 60 days with 1-minute data resolution
Wi-Fi Protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m indoors and 50 m outdoors
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m indoors and 30 m outdoors
CPU: ESP32-D0WDQ6
Flash Memory: 16 MB
Dimensions: 94 x 19 x 69 ±0.5 mm
Weight: 62 ±1 g
Mounting: DIN rail
Housing Material: Plastic
Ambient Temperature: -20°C to +40°C
Humidity: 30% to 70% RH
Maximum Altitude: 2000 m
-
