SKU:LED-1964

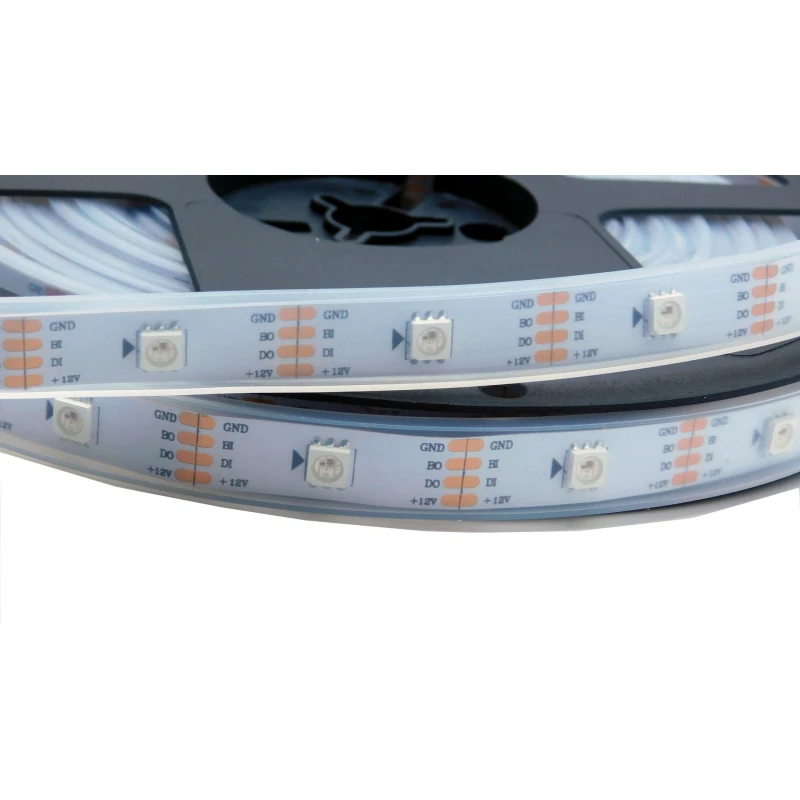

Image is for illustrative purposes only
Parameters
IC Type :WS2815
Gray Level: 256
View Angle: 120°
Input Voltage: DC12V
Color: 24-bit
Flexible PCB Board Color: White or Black
Power: 0.3W per LED
LED size 5050
Storage Temperature: -30-+95 °C
Operating Temperature: -20 ~ +85°C *The Distance Between LEDs: 30 LEDs/m - 28mm
60 LEDs/m - 12mm
144 LEDs/m – 1.92mm
Wave length: Red 650 nm ; Green 520 nm Blue 460nm
WS2815 - benefits
Using LED strips based on WS2815:
Power supply with 12V - it is much easier provide proper amount of power compared to 5V LED strips. Less current, less power wasted
MUCH more reliable strips. When single chip/LED fail - rest of strip is working. Only the failure of two subsequent chips will turn off the rest of the tape
Chip are integrated with LED - clean and aesthetic design
Price, length
Price is for 1m. In case of this strip, it will be 30 LEDs. Strip is in silicone tube (IP67). There is 5m on single roll. When You order 5 m we will try to send it in single piece.
Specification:
Strip in silicone tube (IP67)
30 LED/m
Power consuption max 9 W/m
White PCB
Power consumption seems a bit overestimated. When we have connected strip and got power consumption up to 4 W/m. To power 5m of strip we need up to 1.6A of current.
See this strip in action (driven by controller:
