SKU:PT1073-ET
Image is for illustrative purposes only

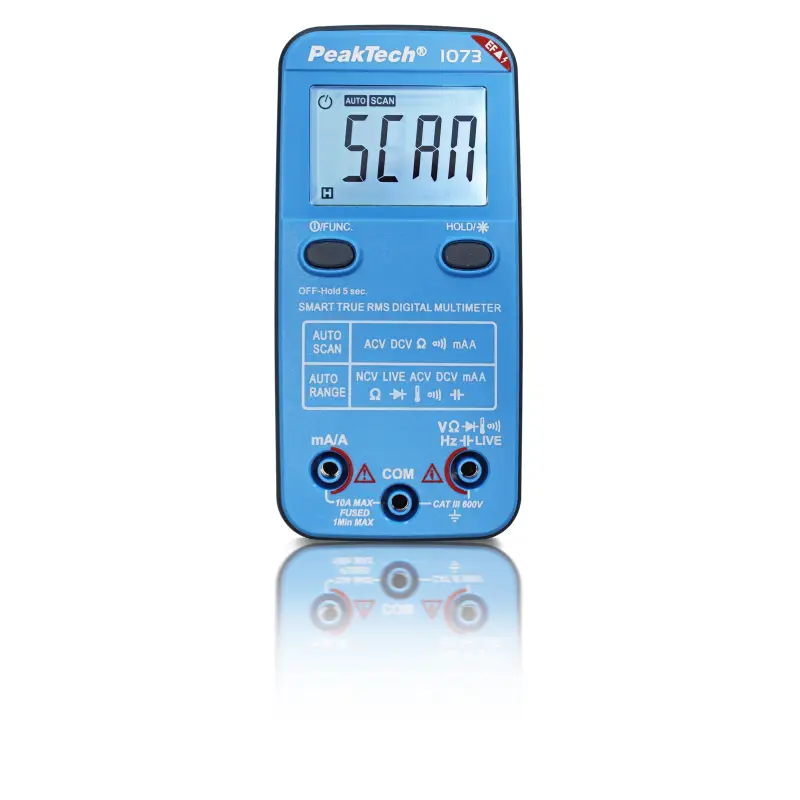

Our new “ Smart” digital multimeter combines state-of-the-art technology with an impressive range of functions in a compact design. It measures voltages up to 600V AC/DC, is CAT III certified and features True RMS for precise measurements with varying voltages. The integrated NCV voltage tester enables non-contact voltage detection, while the LIVE test reliably identifies phases and neutral conductors.
Thanks to the automatic search of the measuring function, you no longer need a rotary selector switch. The multimeter automatically recognizes what is being measured and adjusts itself accordingly.
The 4000-digit LCD display with blue backlighting ensures clear readability of the measured values and changes to red when measuring ranges are exceeded or the NCV voltage tester detects a voltage. In addition to the standard measurements for voltage, current (AC & DC), resistance, continuity, diode test and temperature, this multimeter also offers capacitance and frequency measurements.
Thanks to the automatic search of the measuring function, you no longer need a rotary selector switch. The multimeter automatically recognizes what is being measured and adjusts itself accordingly.
The 4000-digit LCD display with blue backlighting ensures clear readability of the measured values and changes to red when measuring ranges are exceeded or the NCV voltage tester detects a voltage. In addition to the standard measurements for voltage, current (AC & DC), resistance, continuity, diode test and temperature, this multimeter also offers capacitance and frequency measurements.
Auto-Scan:: Auto-Scan:: ■
Basic Accuracy DC:: +/- 0,5%
Battery:: 1,5V AAA
Capacitance max.:: 1 mF
Digital counts:: 4.000
Display Type:: LCD
LED-lamp:: ■
NCV:: ■
Over voltage category:: CAT III 600 V
Range selection:: Auto
True RMS:: True RMS:: ■
V DC max.:: 600V
A AC max.:: 10A
Hz max.:: 4 kHz
OHM max.:: 40 MΩ
Temp. max.:: 1200 °C
Temp. min.:: -200 °C
mA DC max.:: 4000 mA
V AC max.:: 600 V
A DC max.:: 10A
mA AC max.:: 4000 mA
Smart TrueRMS multimeter with automatic function selection
Manual function selection possible at the touch of a button
3 3/4 digit LCD display with 4,000 counts
Backlight (blue/red) and LED light
Continuity test and diode test function
Capacitance, temperature& frequency measurement
Live test and NCV voltage tester
Auto-Power-Off and battery status indicator
Sturdy ABS plastic housing
Safety: EN 61010-1, CAT III 600V

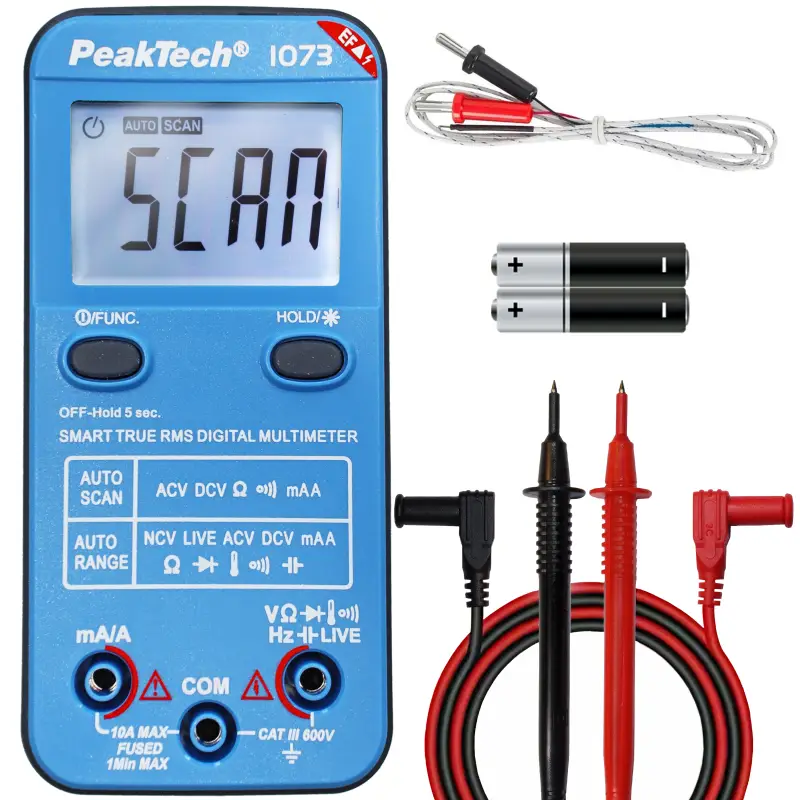

Accessories: Test leads, thermocouple, batteries and operating instructions
Basic Accuracy DC:: +/- 0,5%
Battery:: 1,5V AAA
Capacitance max.:: 1 mF
Digital counts:: 4.000
Display Type:: LCD
LED-lamp:: ■
NCV:: ■
Over voltage category:: CAT III 600 V
Range selection:: Auto
True RMS:: True RMS:: ■
V DC max.:: 600V
A AC max.:: 10A
Hz max.:: 4 kHz
OHM max.:: 40 MΩ
Temp. max.:: 1200 °C
Temp. min.:: -200 °C
mA DC max.:: 4000 mA
V AC max.:: 600 V
A DC max.:: 10A
mA AC max.:: 4000 mA
Smart TrueRMS multimeter with automatic function selection
Manual function selection possible at the touch of a button
3 3/4 digit LCD display with 4,000 counts
Backlight (blue/red) and LED light
Continuity test and diode test function
Capacitance, temperature& frequency measurement
Live test and NCV voltage tester
Auto-Power-Off and battery status indicator
Sturdy ABS plastic housing
Safety: EN 61010-1, CAT III 600V
Accessories: Test leads, thermocouple, batteries and operating instructions
-
