SKU:PT2025-A-ET
Image is for illustrative purposes only
The new **PeakTech 2025 A** offers a multitude of **measurement functions** for **electrical measured variables** for every user from industry, craftsmanship, training, hobby and the laboratory. The **integrated data interface**, which enables this model to record **long-term data** in conjunction with the **PC software**, should be emphasized here.
It was manufactured according to the latest development aspects and has a **double-insulated injection-molded housing** with **rubber coating** and a **tilt stand** on the back, which can be removed to replace the batteries. The fuses are located underneath the stand as well, if it is neccessary to replace these.
The device is working with a battery and has an **LCD screen** with a character height of **27 mm** and a **bar graph** with **61 segments**. The **automatic range selection** offers a very user-friendly operation and measured values can be easily read on the **illuminated display**.
Software: **DMM Tool compatible** - download in the service area
It was manufactured according to the latest development aspects and has a **double-insulated injection-molded housing** with **rubber coating** and a **tilt stand** on the back, which can be removed to replace the batteries. The fuses are located underneath the stand as well, if it is neccessary to replace these.
The device is working with a battery and has an **LCD screen** with a character height of **27 mm** and a **bar graph** with **61 segments**. The **automatic range selection** offers a very user-friendly operation and measured values can be easily read on the **illuminated display**.
Software: **DMM Tool compatible** - download in the service area
USB:: ■
Basic Accuracy DC:: **+/- 0,5%**
Battery:: **9V Block**
Capacitance max.:: **600 µF**
Digital counts:: **6.000**
Display Type:: LCD
Over voltage category:: **CAT III 1000 V, CAT IV 600 V**
Range selection:: Auto
True RMS:: ■
V DC max.:: 1000V
A AC max.:: 10A
Hz max.:: 20 MHz
OHM max.:: 60 MΩ
Temp. max.:: **1000 °C**
Temp. min.:: -20 °C
mA DC max.:: 600mA
mV DC max.:: 600 mV
µA DC max.:: 6000 µA
V AC max.:: 1000V
mV AC max.:: 600 mV
A DC max.:: 10A
mA AC max.:: 600 mA
µA AC max.:: 6000 µA
**True RMS measurements** of ACV and ACA values

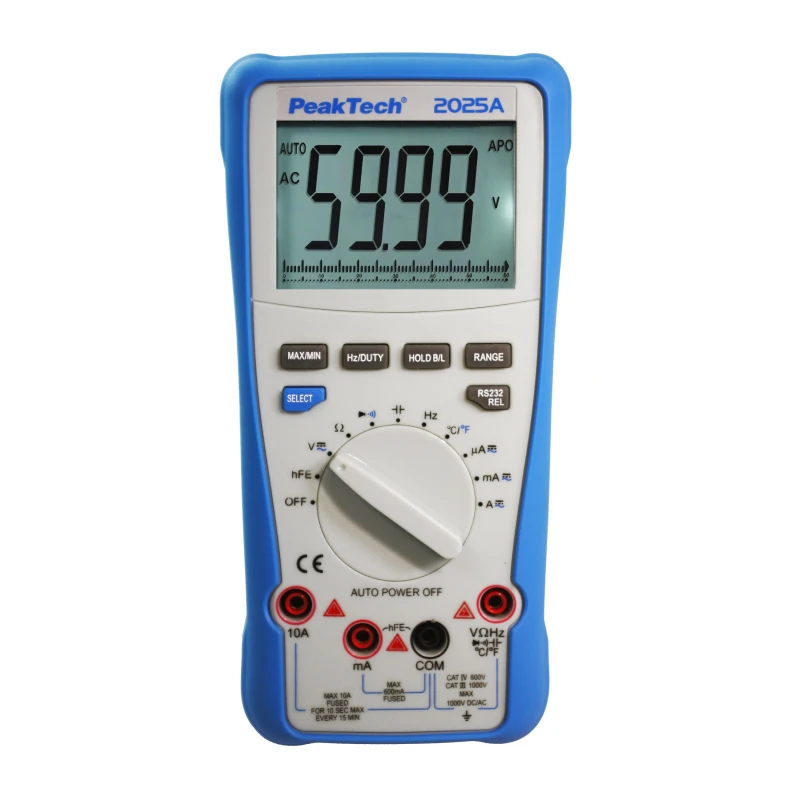

**27 mm, 3 5/6 digit LCD display** (max. 5999) with **backlight** and **61-segment bar graph**
**Automatic and manual range selection**
**Temperature measurement** by using **type K sensor**
**Relative measuring function**
**Automatic switch-off** and **battery status display**
**Data transfer by USB interface**
Safety: **EN 61010-1; CAT III 1000 V**
Accessories: bag, test leads, software, **temperature sensor**, **temperature adapter**, battery and user manual
Basic Accuracy DC:: **+/- 0,5%**
Battery:: **9V Block**
Capacitance max.:: **600 µF**
Digital counts:: **6.000**
Display Type:: LCD
Over voltage category:: **CAT III 1000 V, CAT IV 600 V**
Range selection:: Auto
True RMS:: ■
V DC max.:: 1000V
A AC max.:: 10A
Hz max.:: 20 MHz
OHM max.:: 60 MΩ
Temp. max.:: **1000 °C**
Temp. min.:: -20 °C
mA DC max.:: 600mA
mV DC max.:: 600 mV
µA DC max.:: 6000 µA
V AC max.:: 1000V
mV AC max.:: 600 mV
A DC max.:: 10A
mA AC max.:: 600 mA
µA AC max.:: 6000 µA
**True RMS measurements** of ACV and ACA values
**27 mm, 3 5/6 digit LCD display** (max. 5999) with **backlight** and **61-segment bar graph**
**Automatic and manual range selection**
**Temperature measurement** by using **type K sensor**
**Relative measuring function**
**Automatic switch-off** and **battery status display**
**Data transfer by USB interface**
Safety: **EN 61010-1; CAT III 1000 V**
Accessories: bag, test leads, software, **temperature sensor**, **temperature adapter**, battery and user manual
-
