SKU:PT3349-ET

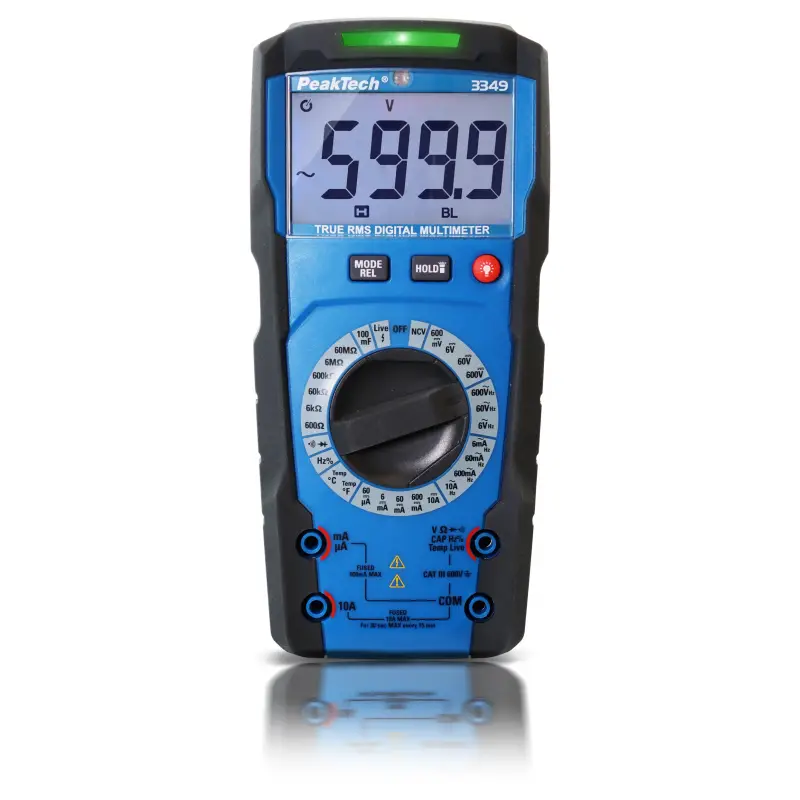

The new **PeakTech 3349** was specially developed for use in the craftsmanship and industry and offers a variety of useful functions that simplify daily work, especially in **dark or noisy environments**.
The lighting of the **large LCD display** is **automatically activated** by a photodiode in dark surroundings.
On the back of the device there is also a bright LED flashlight, which is used to illuminate the area where the measurement has to be taken.

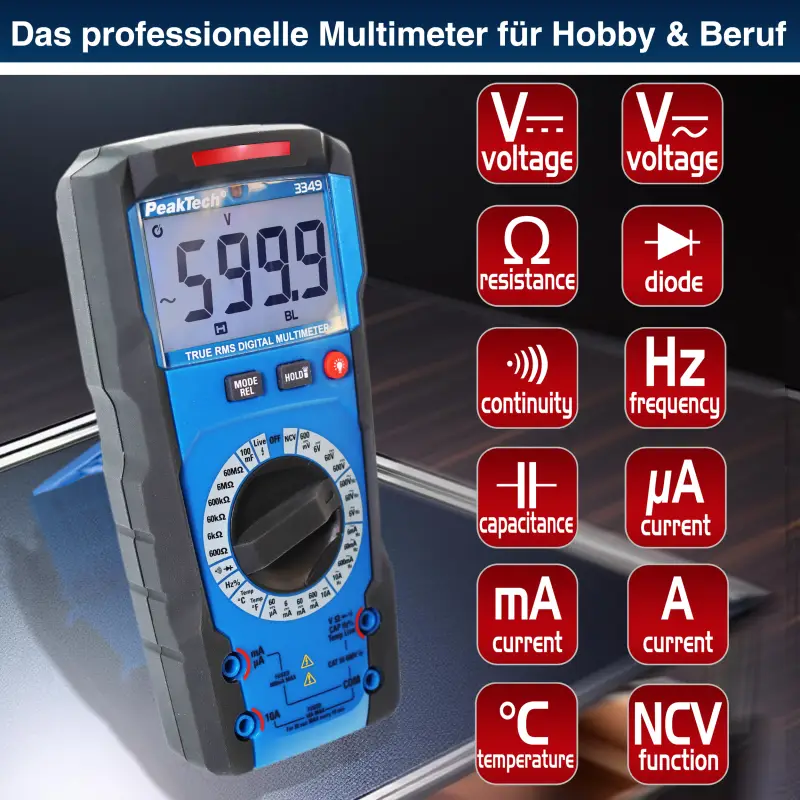

A multi- voltage (**True RMS**), capacitance, resistance, frequency, continuity test and diode test, this device owns the functions to perform temperature measurements, **non-contact voltage tests** and **phase tests**.
With the **relative value mode** and the **data hold function**, it is possible to make measurements accurate and precise.
The PeakTech 3349 was manufactured according to the latest development aspects and has a **double-insulated injection-molded housing** with rubber coating, a tilt stand on the back, which can be removed to replace the batteries.
The fuses are located underneath the stand as well, if it is neccessary to replace these.
With this device the **measuring range is selected manually**, which enable particularly **fast response times**.
The lighting of the **large LCD display** is **automatically activated** by a photodiode in dark surroundings.
On the back of the device there is also a bright LED flashlight, which is used to illuminate the area where the measurement has to be taken.
A multi- voltage (**True RMS**), capacitance, resistance, frequency, continuity test and diode test, this device owns the functions to perform temperature measurements, **non-contact voltage tests** and **phase tests**.
With the **relative value mode** and the **data hold function**, it is possible to make measurements accurate and precise.
The PeakTech 3349 was manufactured according to the latest development aspects and has a **double-insulated injection-molded housing** with rubber coating, a tilt stand on the back, which can be removed to replace the batteries.
The fuses are located underneath the stand as well, if it is neccessary to replace these.
With this device the **measuring range is selected manually**, which enable particularly **fast response times**.
Basic Accuracy DC:: +/- 0,5%
Battery:: 1,5V AAA
Capacitance max.:: 60 mF
Display Type:: LCD
Info-LEDs:: ■
LED-lamp:: ■
NCV:: ■
Over voltage category:: CAT III 600 V
Range selection:: Manual
True RMS:: ■
V DC max.:: 600V
A AC max.:: 10A
Hz max.:: 10 MHz
OHM max.:: 60 MΩ
Temp. max.:: 1000 °C
Temp. min.:: -18 °C
mA DC max.:: 600mA
mV DC max.:: 600 mV
µA DC max.:: 60 µA
V AC max.:: 600 V
A DC max.:: 10A
mA AC max.:: 600 mA
True RMS voltage measurements up to 600 V and current measurements up to 10 A AC / DC

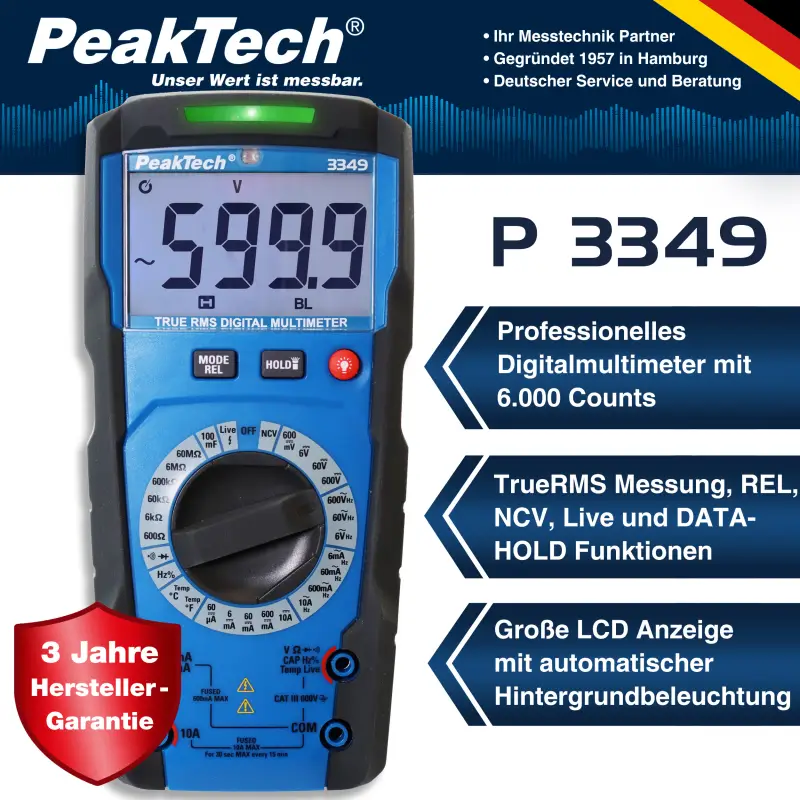

6.000 LCD display with automatic backlight
Multi- CAT III 600 V
Accessories: bag, test leads, temperature sensor, temperature adapter, batteries and user manual
Battery:: 1,5V AAA
Capacitance max.:: 60 mF
Display Type:: LCD
Info-LEDs:: ■
LED-lamp:: ■
NCV:: ■
Over voltage category:: CAT III 600 V
Range selection:: Manual
True RMS:: ■
V DC max.:: 600V
A AC max.:: 10A
Hz max.:: 10 MHz
OHM max.:: 60 MΩ
Temp. max.:: 1000 °C
Temp. min.:: -18 °C
mA DC max.:: 600mA
mV DC max.:: 600 mV
µA DC max.:: 60 µA
V AC max.:: 600 V
A DC max.:: 10A
mA AC max.:: 600 mA
True RMS voltage measurements up to 600 V and current measurements up to 10 A AC / DC
6.000 LCD display with automatic backlight
Multi- CAT III 600 V
Accessories: bag, test leads, temperature sensor, temperature adapter, batteries and user manual
