SKU:PT4205-ET
Image is for illustrative purposes only

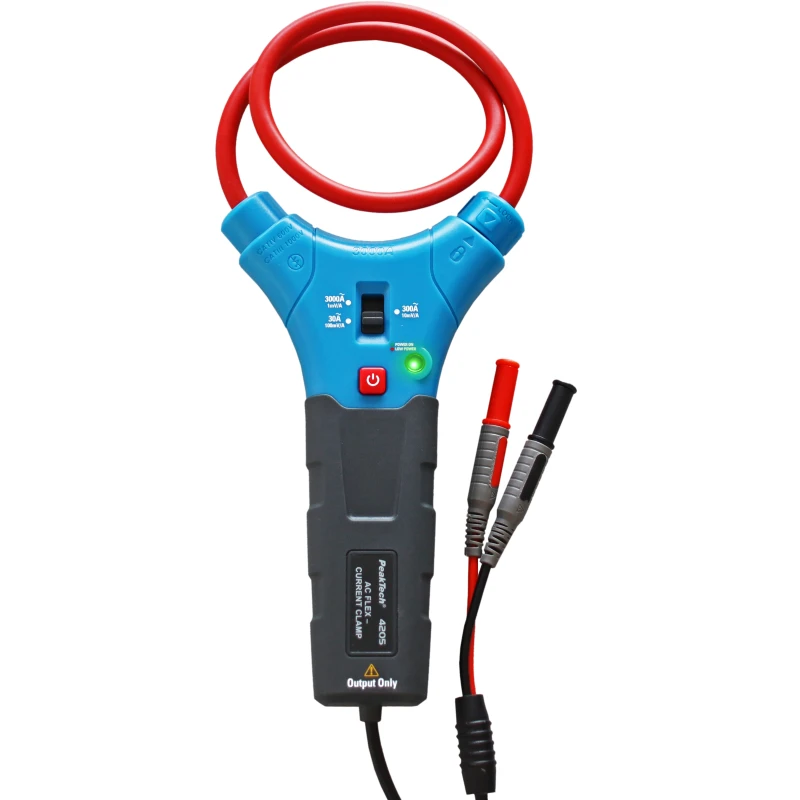

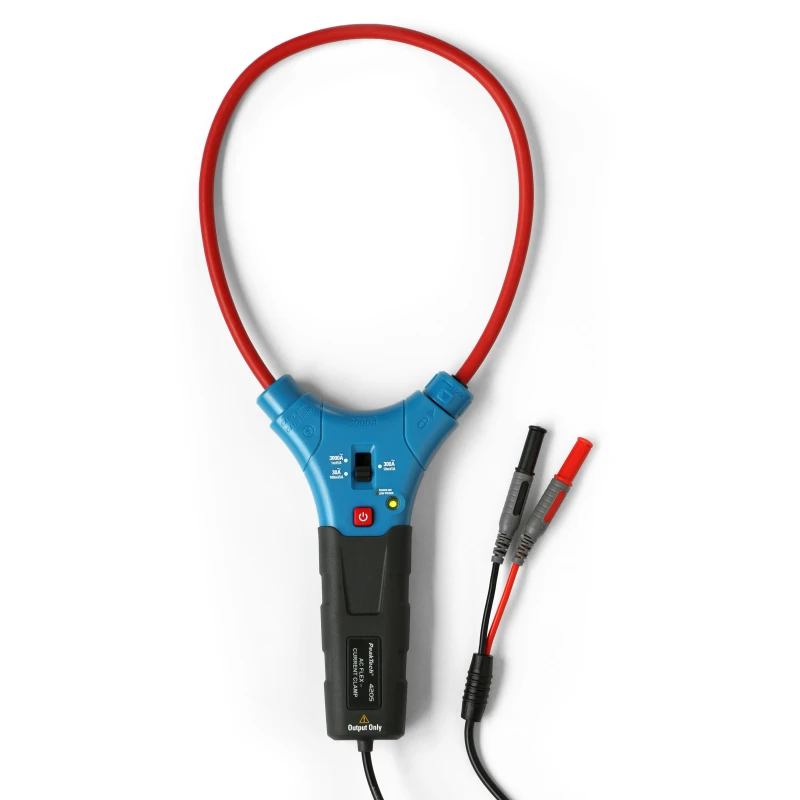

This innovative current clamp works on the principle of being able to carry out current measurements safely and quickly in conjunction with a multimeter.
Due to the flexible design of the clamp opening, it is possible to insert small but also large cable diameters into the opening.
By means of the slide switch, it is possible to set the measuring ranges of the current clamp between 30-3000 A AC.

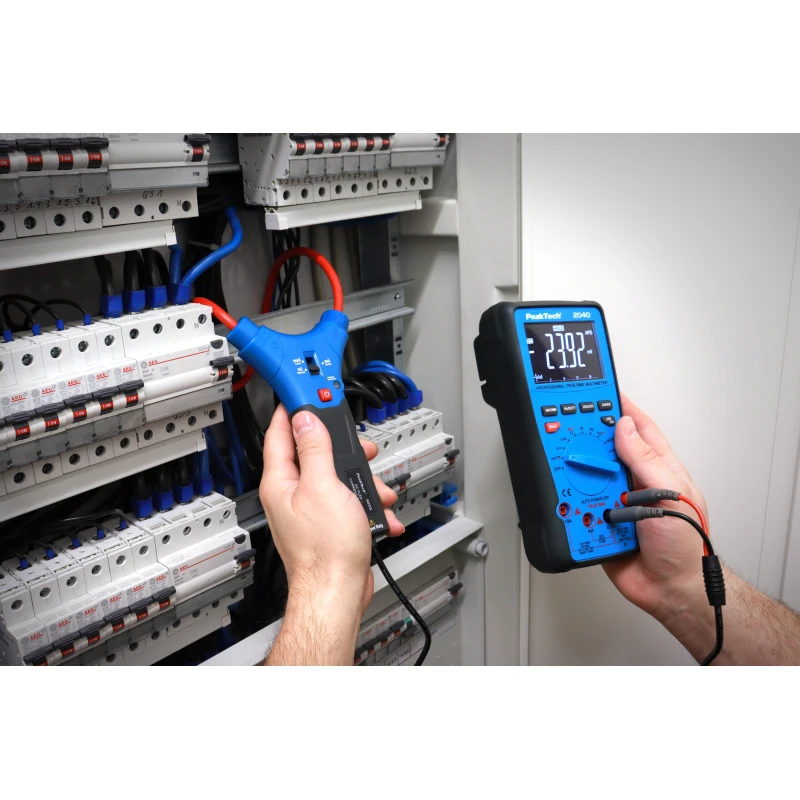

Due to the intuitive design of the device, this current clamp is suitable for all areas in which currents have to be measured, whether in the hobby area or for professional use in industry.
Due to the flexible design of the clamp opening, it is possible to insert small but also large cable diameters into the opening.
By means of the slide switch, it is possible to set the measuring ranges of the current clamp between 30-3000 A AC.
Due to the intuitive design of the device, this current clamp is suitable for all areas in which currents have to be measured, whether in the hobby area or for professional use in industry.
Battery:: **1,5V AAA**
Cable Length:: ca. 100cm
Clamp Opening:: **160 mm**
Control elements:: Pushbuttons, Slide switch
Output Connection:: 4 mm Plug
Over voltage category:: **CAT III 1000 V**, CAT IV 600 V
Range selection:: Manual
Touch guard:: ■
A AC max.:: **3000 A** (Stromwandler)
Maximum cable diameter of up to 160 mm
**Flexible current clamp lock**
Safety: EN 61010-1, EN 61010-2-032, EN 61326-1
Accessories: Batteries and operating instructions
Cable Length:: ca. 100cm
Clamp Opening:: **160 mm**
Control elements:: Pushbuttons, Slide switch
Output Connection:: 4 mm Plug
Over voltage category:: **CAT III 1000 V**, CAT IV 600 V
Range selection:: Manual
Touch guard:: ■
A AC max.:: **3000 A** (Stromwandler)
Maximum cable diameter of up to 160 mm
**Flexible current clamp lock**
Safety: EN 61010-1, EN 61010-2-032, EN 61326-1
Accessories: Batteries and operating instructions
