SKU:327000709

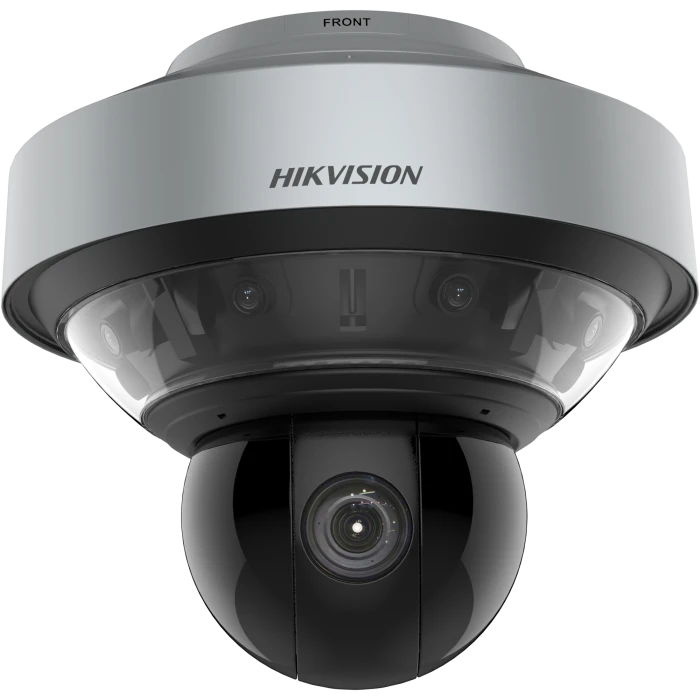

Image is for illustrative purposes only
Model: DS-2DP3236ZIXS-D/440(F0)(P5)
High quality imaging with 32 MP resolution, up to 2 × 5520 × 2400 @30 fps for panoramic channels.
Excellent low-light performance with DarkFighter technology.
40x optical zoom and 16x digital zoom provide close up views over expansive areas.
Expansive night view with up to 250 m IR distance.
With one click on the panoramic channel, the PTZ channel shows the details automatically.
Continous and stable manual tracking, auto-tracking, and panorama tracking.
Automatic switch between multiple targets.
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output.
High quality imaging with 32 MP resolution, up to 2 × 5520 × 2400 @30 fps for panoramic channels.
Excellent low-light performance with DarkFighter technology.
40x optical zoom and 16x digital zoom provide close up views over expansive areas.
Expansive night view with up to 250 m IR distance.
With one click on the panoramic channel, the PTZ channel shows the details automatically.
Continous and stable manual tracking, auto-tracking, and panorama tracking.
Automatic switch between multiple targets.
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output.
High quality imaging with 32 MP resolution, up to 2 × 5520 × 2400 @30 fps for panoramic channels.
Excellent low-light performance with DarkFighter technology.
40x optical zoom and 16x digital zoom provide close up views over expansive areas.
Expansive night view with up to 250 m IR distance.
With one click on the panoramic channel, the PTZ channel shows the details automatically.
Continous and stable manual tracking, auto-tracking, and panorama tracking.
Automatic switch between multiple targets.
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output.
High quality imaging with 32 MP resolution, up to 2 × 5520 × 2400 @30 fps for panoramic channels.
Excellent low-light performance with DarkFighter technology.
40x optical zoom and 16x digital zoom provide close up views over expansive areas.
Expansive night view with up to 250 m IR distance.
With one click on the panoramic channel, the PTZ channel shows the details automatically.
Continous and stable manual tracking, auto-tracking, and panorama tracking.
Automatic switch between multiple targets.
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output.
Brand: Hikvision
Manufacturer Code: DS-2DP3236ZIXS-D/440(F0)(P5)
Net Weight: 15.86
Gross Weight: 23.85
Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination: [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Day & Night: IR cut filter
Zoom: [PTZ channel] 40x optical, 16x digital
FOV: Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Supplement Light Type: IR
Supplement Light Range: Up to 250 m
Smart Supplement Light: Yes
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90° (auto flip)
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Main Stream: [Panoramic channel]: 50 Hz: 25 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) 60 Hz: 30 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Simultaneous Live View: Up to 20 channels
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
Client: iVMS-4200, HikCentral Pro, Hik-Connect
Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Day/Night Switch: Day, night, auto, scheduled-switch
SNR: ≥ 55 dB
Image Stabilization: EIS
Defog: [Panoramic channel]: no; [PTZ channel]: optical defog
Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm: 7 alarm inputs, 2 alarm outputs
Smart Event: Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart Tracking: Manual tracking, auto-tracking, Support patrol tracking among multiple detection scenes
Face Capture: [Panoramic channel] no,[PTZ channel] yes
Demist: Yes
Operating Condition: -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper: No
Dimension: Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Protection: IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
Brand: Hikvision
Manufacturer Code: DS-2DP3236ZIXS-D/440(F0)(P5)
Net Weight: 15.86
Gross Weight: 23.85
Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination: [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Day & Night: IR cut filter
Zoom: [PTZ channel] 40x optical, 16x digital
FOV: Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Supplement Light Type: IR
Supplement Light Range: Up to 250 m
Smart Supplement Light: Yes
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90° (auto flip)
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Main Stream: [Panoramic channel]: 50 Hz: 25 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) 60 Hz: 30 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Simultaneous Live View: Up to 20 channels
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
Client: iVMS-4200, HikCentral Pro, Hik-Connect
Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Day/Night Switch: Day, night, auto, scheduled-switch
SNR: ≥ 55 dB
Image Stabilization: EIS
Defog: [Panoramic channel]: no; [PTZ channel]: optical defog
Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm: 7 alarm inputs, 2 alarm outputs
Smart Event: Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart Tracking: Manual tracking, auto-tracking, Support patrol tracking among multiple detection scenes
Face Capture: [Panoramic channel] no,[PTZ channel] yes
Demist: Yes
Operating Condition: -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper: No
Dimension: Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Protection: IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
Manufacturer Code: DS-2DP3236ZIXS-D/440(F0)(P5)
Net Weight: 15.86
Gross Weight: 23.85
Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination: [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Day & Night: IR cut filter
Zoom: [PTZ channel] 40x optical, 16x digital
FOV: Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Supplement Light Type: IR
Supplement Light Range: Up to 250 m
Smart Supplement Light: Yes
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90° (auto flip)
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Main Stream: [Panoramic channel]: 50 Hz: 25 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) 60 Hz: 30 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Simultaneous Live View: Up to 20 channels
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
Client: iVMS-4200, HikCentral Pro, Hik-Connect
Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Day/Night Switch: Day, night, auto, scheduled-switch
SNR: ≥ 55 dB
Image Stabilization: EIS
Defog: [Panoramic channel]: no; [PTZ channel]: optical defog
Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm: 7 alarm inputs, 2 alarm outputs
Smart Event: Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart Tracking: Manual tracking, auto-tracking, Support patrol tracking among multiple detection scenes
Face Capture: [Panoramic channel] no,[PTZ channel] yes
Demist: Yes
Operating Condition: -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper: No
Dimension: Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Protection: IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
Brand: Hikvision
Manufacturer Code: DS-2DP3236ZIXS-D/440(F0)(P5)
Net Weight: 15.86
Gross Weight: 23.85
Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination: [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Day & Night: IR cut filter
Zoom: [PTZ channel] 40x optical, 16x digital
FOV: Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Supplement Light Type: IR
Supplement Light Range: Up to 250 m
Smart Supplement Light: Yes
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90° (auto flip)
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Main Stream: [Panoramic channel]: 50 Hz: 25 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) 60 Hz: 30 fps (5520×2400×2, 4096×1800×2，3840×1680×2, 2784×1200×2) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Simultaneous Live View: Up to 20 channels
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
Client: iVMS-4200, HikCentral Pro, Hik-Connect
Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Day/Night Switch: Day, night, auto, scheduled-switch
SNR: ≥ 55 dB
Image Stabilization: EIS
Defog: [Panoramic channel]: no; [PTZ channel]: optical defog
Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm: 7 alarm inputs, 2 alarm outputs
Smart Event: Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
Smart Tracking: Manual tracking, auto-tracking, Support patrol tracking among multiple detection scenes
Face Capture: [Panoramic channel] no,[PTZ channel] yes
Demist: Yes
Operating Condition: -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Wiper: No
Dimension: Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Protection: IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
Safety: UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
-
