240W Single Output Industrial DIN RAIL Power Supply 24V - 10A

SKU:DRP-240-24

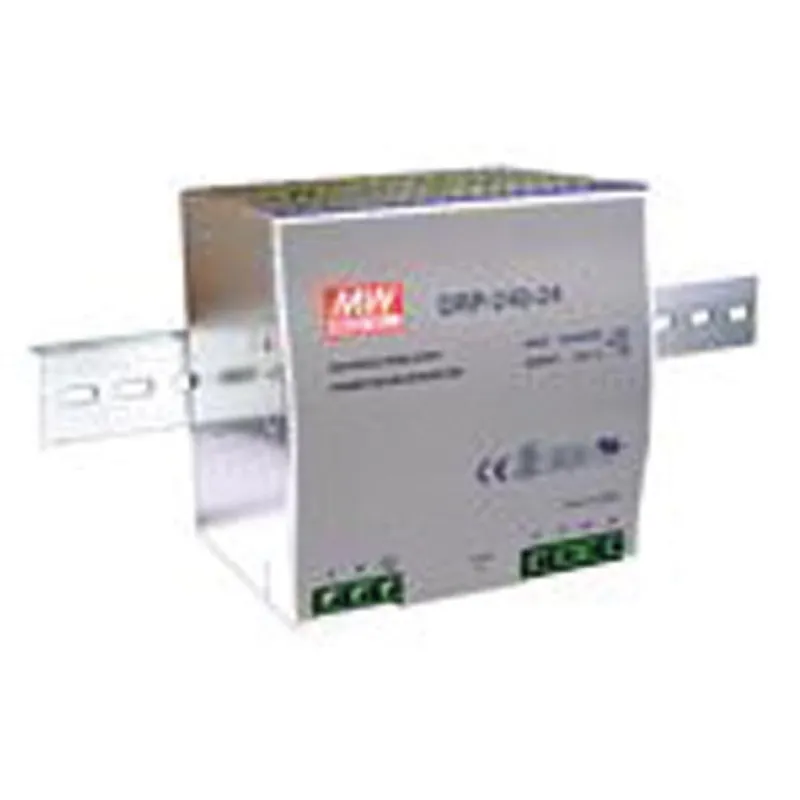

240W Single Output Industrial DIN RAIL Power Supply 24V - 10A
Image is for illustrative purposes only

Features:
    Universal AC input / Full range
    Built in active PFC function
    Protections: Short circuit / Overload / Over voltage / Over temperature
    Cooling by free air convection
    Can be installed on DIN rail TS-35/7.5 or 15
    UL 508(industrial control equipment)approved
    LED indicator for power on
    100% full load burn-in test
    Fixed switching frequency at 100KHz
    3 years warranty
    [b]for professional use only[/b]
    This device must be installed by a qualified person.
Specifications:
    OUTPUT:
      DC VOLTAGE: 24V
      RATED CURRENT: 10A
      CURRENT RANGE: 0 ~ 10A
      RATED POWER: 240W
      RIPPLE & NOISE (max.) Note.2: 80mVp-p
      VOLTAGE ADJ. RANGE: 24 ~ 28V
      VOLTAGE TOLERANCE Note.3: ±1.0%
      LINE REGULATION: ±0.5%
      LOAD REGULATION: ±1.0%
      SETUP, RISE TIME: 800ms, 40ms/230VAC 800ms, 40ms/115VAC at full load
      HOLD UP TIME (Typ.): 24ms/230VAC 24ms/115VAC at full load
    INPUT:
      VOLTAGE RANGE: 85-264VAC; 120-370VDC
      FREQUENCY RANGE: 47 ~ 63Hz
      POWER FACTOR (Typ.): 0.96/230VAC 0.99/115VAC at full load
      EFFICIENCY (Typ.): 84%
      AC CURRENT (Typ.): 2.8A/115VAC 1.4A/230VAC
      INRUSH CURRENT (Typ.): COLD START 27A/115VAC 45A/230VAC
      LEAKAGE CURRENT: <3.5mA / 240VAC
    PROTECTION:
      OVERLOAD:
        105 ~ 150% rated output power
        Protection type : Constant current limiting, recovers automatically after fault condition is removed
      OVER VOLTAGE:
        30 ~ 36V
        Protection type : Shut down o/p voltage, re-power on to recover
      OVER TEMPERATURE:
        100°C ±5°C (TSW1)detect on heat sink of power transistor
        Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
      ENVIRONMENT:
        WORKING TEMP.: -10 ~ +70°C (Refer to "Derating Curve")
        WORKING HUMIDITY: 20 ~ 90% RH non-condensing
        STORAGE TEMP., HUMIDITY: -20 ~ +85°C , 10 ~ 95% RH
        TEMP. COEFFICIENT: ±0.03%/ (0 ~ 50°C)
        VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
      SAFETY & EMC (Note 4):
        SAFETY STANDARDS: UL508, UL60950-1, TUV EN60950-1 approved
        WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
        ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
        EMC EMISSION: Compliance to EN55011,EN55022 (CISPR22) Class B, EN61000-3-2,-3
        EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
      OTHERS:
        MTBF: 289.9Khrs min. MIL-HDBK-217F (25°C )
        dimensions: 125.5 x 125.2 x 100mm
        PACKING: 1.2Kg; 12pcs/15.5Kg/1.29CUFT
powersupplya4v04.pdf
Download
drp-240.pdf
Download
